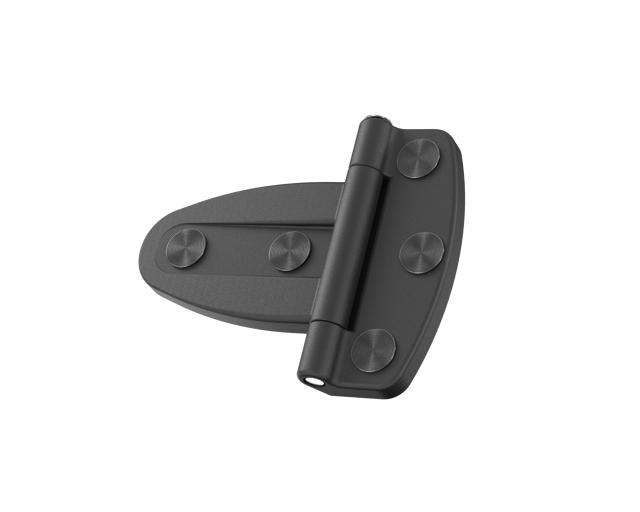

External Hinge
Index Code 3-465
Robust surface mount hinge designed to be used on generators and similar applications.
The external hinge can upon request be supplied with pressmounted studs for easy assembly of the door.
| Hinge | Glass fibre reinforced polyamide (PA6GF30) |
| Pin | Stainless steel 303 |
| Studs | Steel, black zinc coated |
| Notes | Recommended torque for fastening: 5,5 Nm |
| Choose CAD format here: INFO_TEXT |
| Download here: |
| CAD* | P/N | Version |
|---|---|---|

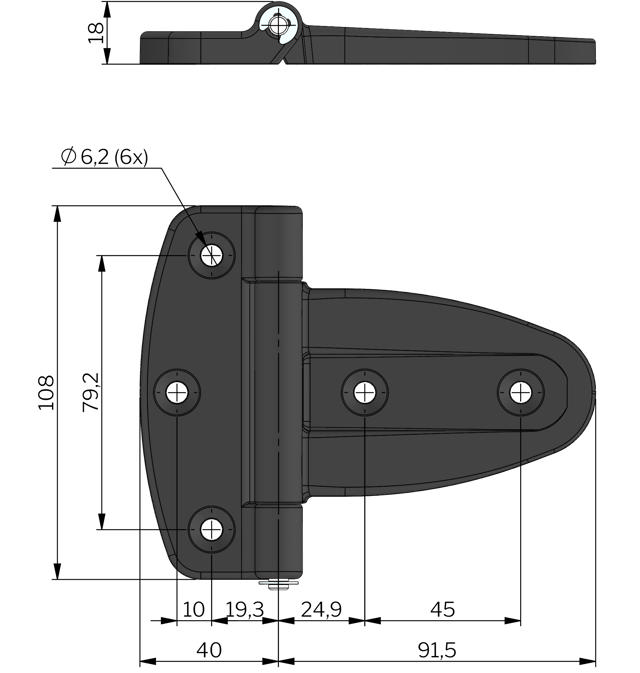

| 325087 | Mounting holes | |

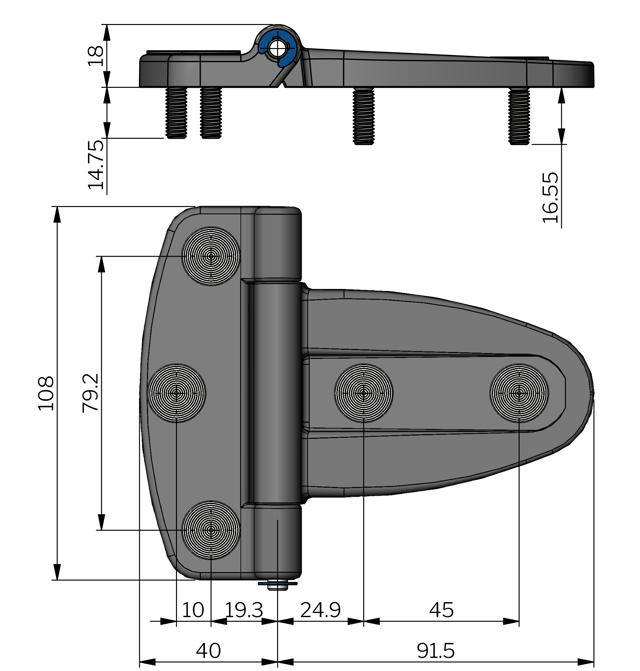

| 325088-01 | Pre-mounted M6 studs | |
| 325088-02 | M6 studs included (not pre-mounted) |
