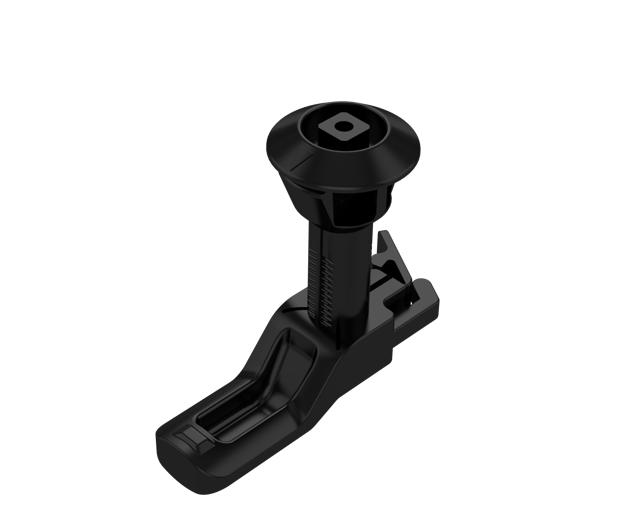

    Quick Assembly Adjustable two piece latch

    Index Code 2-101
    Universally right or left mounted Adjustable grip range (Z-axis)

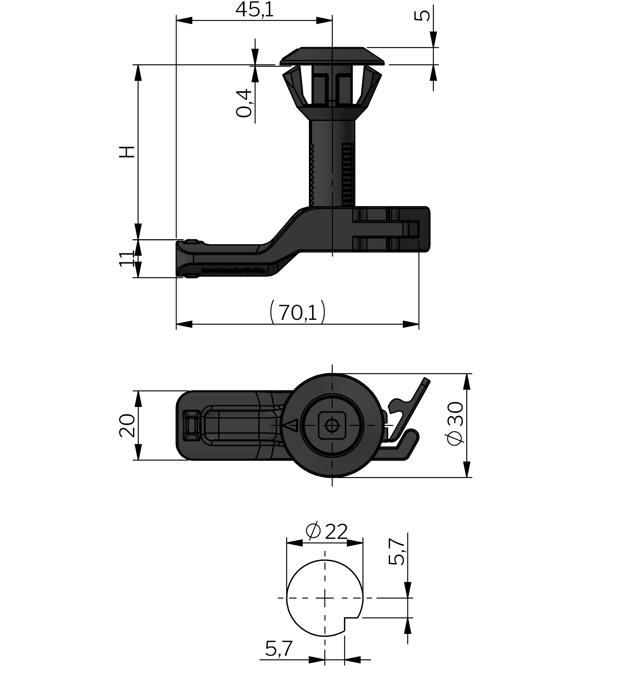

    Quarter-turn latch with adjustable grip range (H) between 9 and 50 mm. Easy snap mounting suited for metal thickness of 0,6-1,5 mm. When using the shown cut out, a 90º turn stop is created, and when using a complete round cut out, the latch can turn 360º.

    CamPolyamide (PA6)
    LatchPolyamide (PA6)

    Ladda ner din CAD-fil

    Välj CAD-format här:
    Download here:

    2_101
    AAAA Typ
    2461 Two-piece latch
    BB Insert / Knob
    05 Fyrkant 8
    15 Trekant 8
    26 Slotted
    77 Integrated knob
    C Metal thickness door
    1 0,6 mm - 1,5 mm
    D Typ
    0 Standard
    HHHHLL H min H max L=
    095045 9,5 50,5 45
