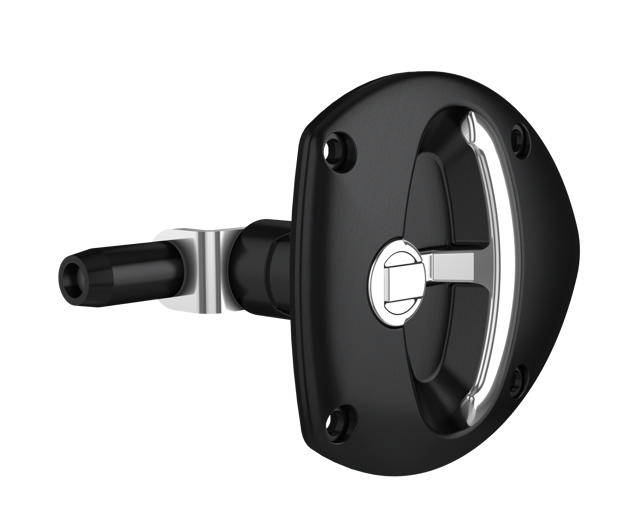

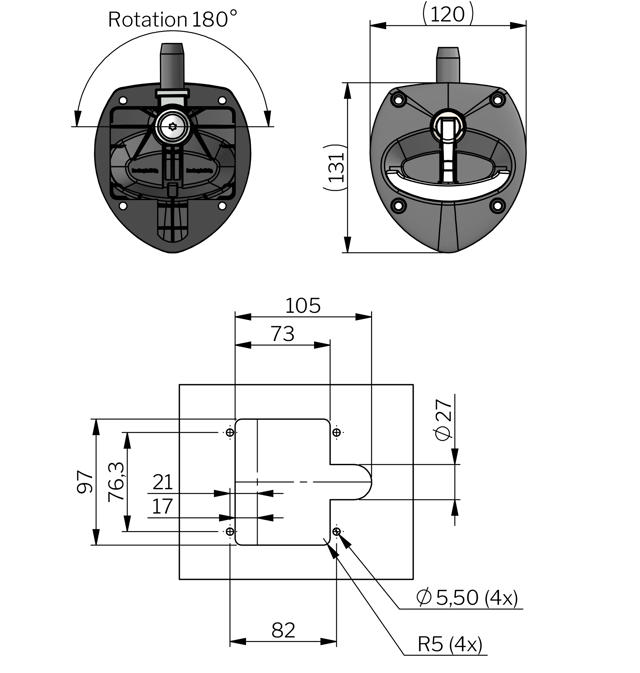

    Vector T Handle Non-locking

    Index Code 2-802
    Ajustable horizontalmente (eje X) Ajustable en los ejes X e Y Reconocido por UL Acero inoxidable

    This non-locking, flush mounted Vector handle is available with T-handle in zinc or stainless steel and has a 4 mm compression stroke. The handle can be ordered in three turn to open versions: 90° right, 90° left or 180°.

    Mounted with screws or rivets. Five cam versions are available. To improve sealing against door, add the optional handle-shaped flat gasket.

    Descargar PDFRecommended Tightening Torque
    HandleZinc die cast, chrome plated, black texture powder coated or stainless steel 304, plain or black texture powder coated
    RollerGlass fibre reinforced polyamide (PA6GF30)
    ShaftSteel, zinc plated or stainless steel 303
    BodyGlass fibre reinforced polyamide (PA6GF30)
    Adjustable camZinc die cast, passivated
    Fixed camSteel, zinc plated

    Descargue su archivo CAD

    Elija aquí el formato CAD:
    Download here:

    2-802
    AAAA Type
    2750 Vector 1
    B Type
    0 Non-locking
    CC Material handle / shaft Handle
    23 Zinc / Steel Chrome
    26 Zinc / Steel Black
    36 SS304 / SS303 Black
    39 SS304 / SS303 Polished
    D Opening rotation
    0 180°
    1 90° clockwise
    2 90° counter clockwise

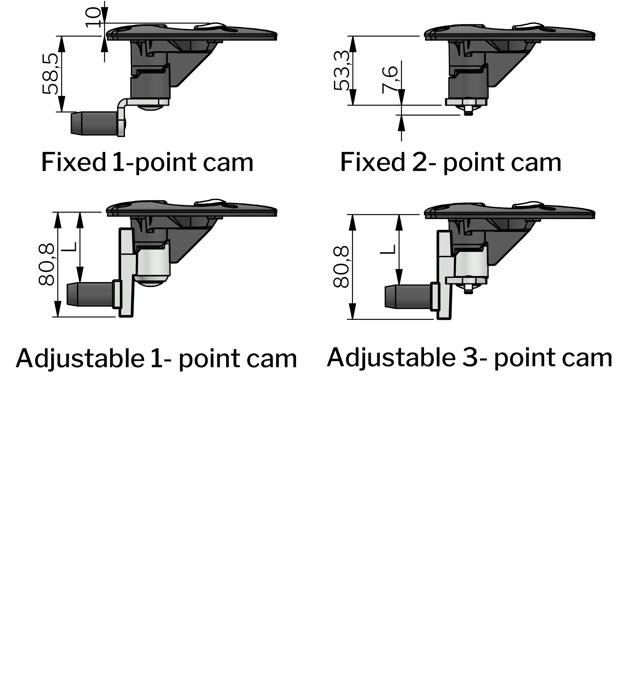

    EE Cam H= L=
    01 Fixed roller cam 58 61
    02 Two-point cam - -
    03 Fixed three-point roller cam 66 85
    04 Adjustable three-point roller cam 10-61 60
    05 Adjustable single point roller cam 10-61 61
