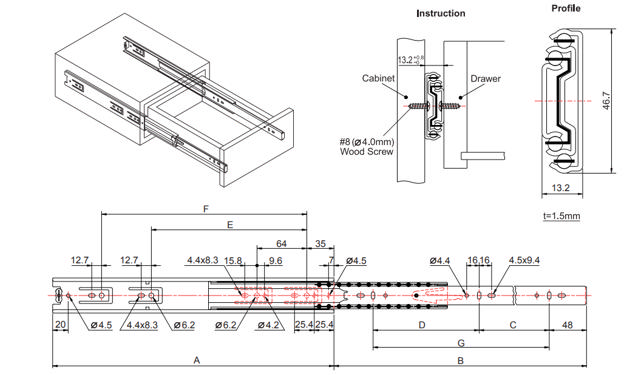

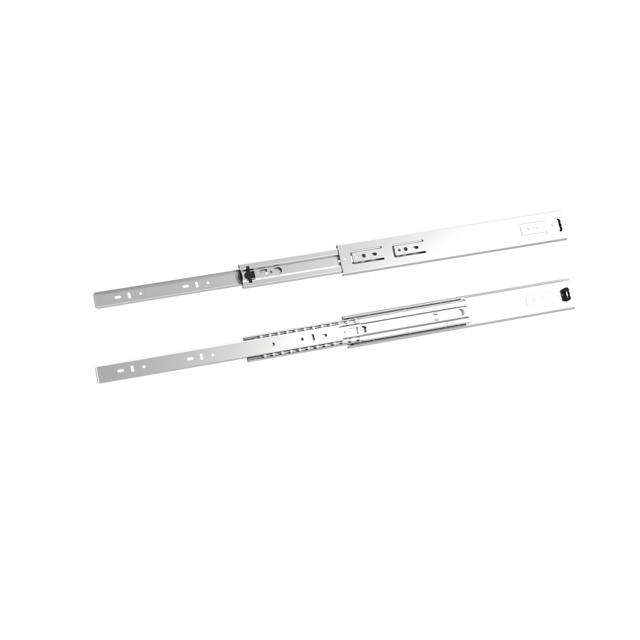

    Drawer slide 46 mm

    Index Code 5-604
    Ball bearingsHardened steel
    Drawer slideCold rolled steel, zinc plated
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Slide Length A [mm] Slide Travel B [mm] C [mm] D [mm] E [mm] F [mm] G [mm]
    		5103-130046-0250 250 250 160 - 160 - 160
    		5103-130046-0300 300 302 192 - 192 - 192
    		5103-130046-0350 350 354 96 160 256 - -
    		5103-130046-0400 400 400 128 160 288 - -
    		5103-130046-0450 450 452 160 192 288 352 -
    		5103-130046-0500 500 515 192 224 288 416 -
    		5103-130046-0550 550 558 192 256 288 416 -
    		5103-130046-0600 600 600 224 288 320 480 -
    		5103-130046-0650 650 650 256 288 352 544 -
    		5103-130046-0700 700 705 256 352 352 576 -
