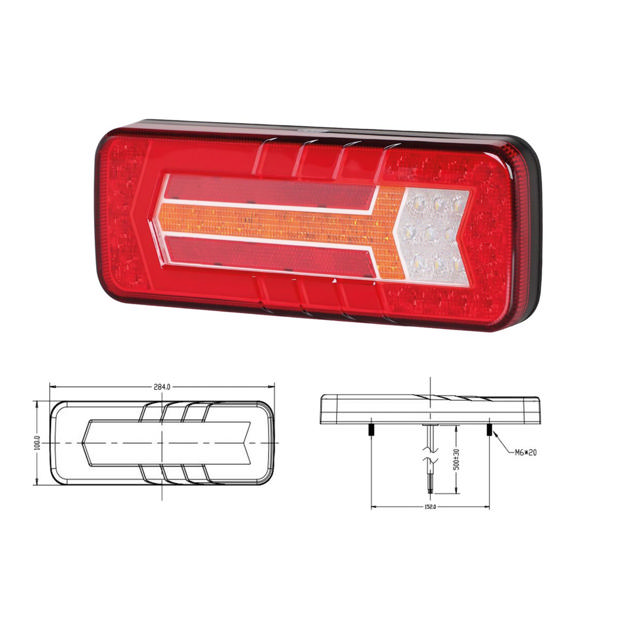

5-913

    Index Code 5-913

    Function Stop, Tail, Turn, Reverse, Fog
    Approvals ECE R10 R3, R6, R7, R23, R38
    Voltage 12-24v IP Rating IP67
    Mounting Surface
    Additional Features Progressive Indicator
    Dimensions 284 x 100 x 35mm
    Box Qty 30
    Housing Material Polycarbonate
    Lens Material Polycarbonate
