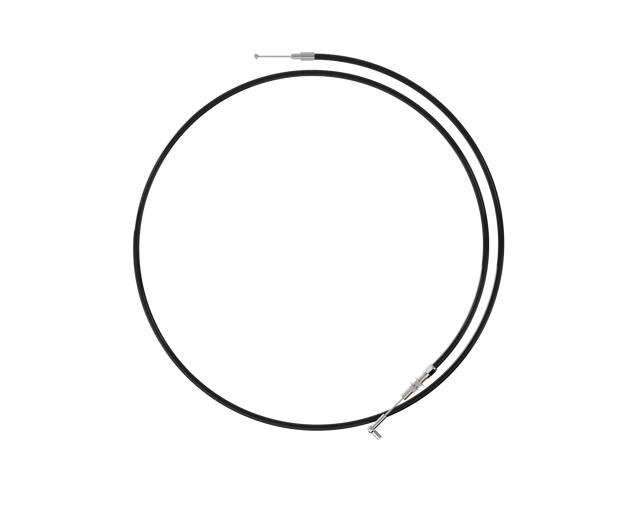

    Vector cables

    Index Code 2-745

    Vector cables to connect Vector latchpoints, for example Vector rotary latches, Vector actuators and Vector pull handles. Low friction and tension ensures precise and smooth motion control. The L-shaped end-fittings attach easily and securly to the latch points and actuators. Vector cables are equipped with threads for adjustment on both ends, making it easy to adjust on both latch point and actuator side. Other lengths are available upon request.

    Télécharger le PDFRecommended Tightening Torque
    NutSteel, zinc plated
    Cable casingPVC
    CableHigh carbon steel
    End FittingsZinc die cast

    Téléchargez votre fichier CAO

    Choisissez ici le format CAO:
    Download here:

    2-745
    AAAA Type
    5280 Vector wire
    B Material wire
    1 Acier
    C Material cover
    1 Plastic
    DD End-fitting
    10 2 x L-shape, zinc
    EE Adjustment threads
    10 2 x 21 mm / M6

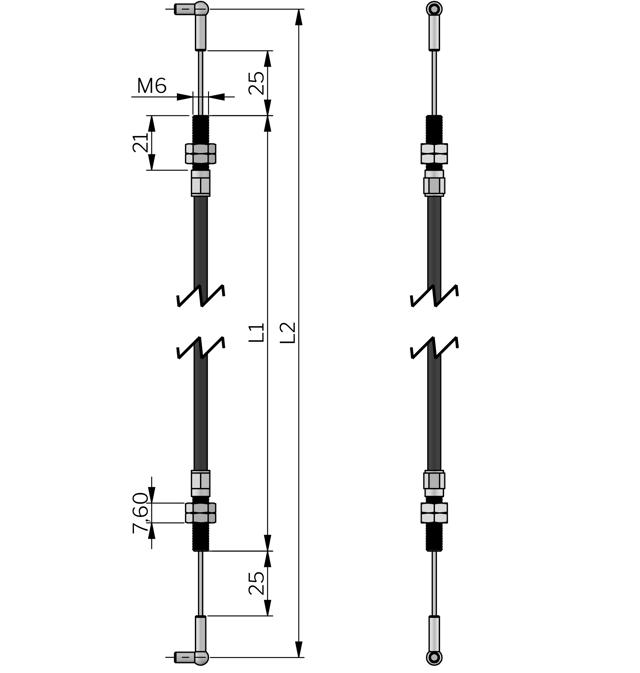

    HHHH Length L1 mm Length L2 mm
    0300 300 382
    0500 500 582
    0700 700 782
    0900 900 982
    1200 1200 1282
    1500 1500 1582
