Vector 3 Central Locking T-handle

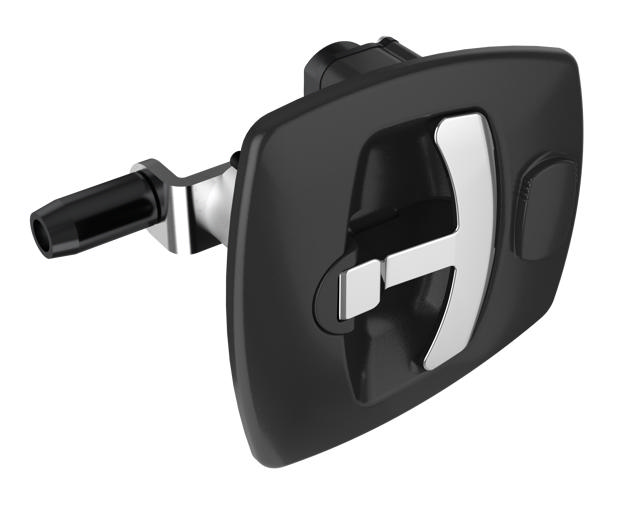

Vector 3 T-handle for central locking vehicle applications. The unlock and lock signal is sent from the vehicle’s system. Available in versions with feedback if the T-bar handle is open or closed and if the handle is unlocked or locked.

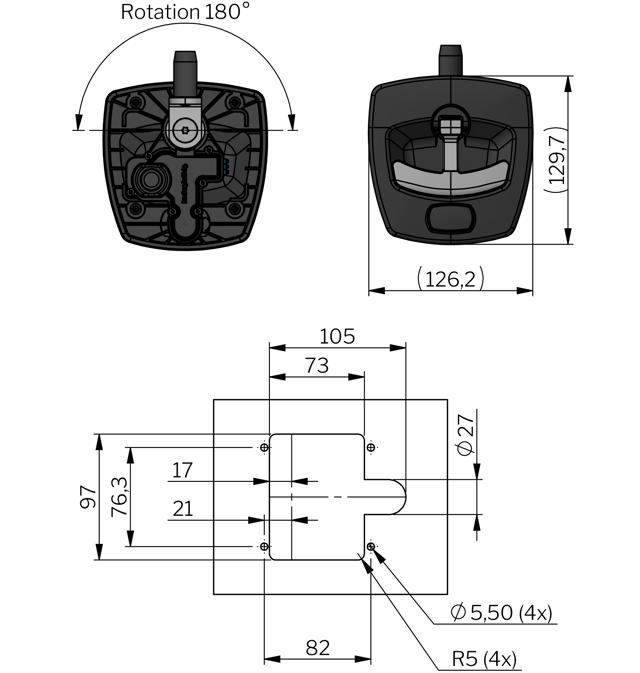

The handle creates 4 mm compression and is sealed to IP65 for water and dust. Four blind-mount studs ensure waterproof assembly. In case of power failure, the latch is equipped with a mechanical override cylinder.

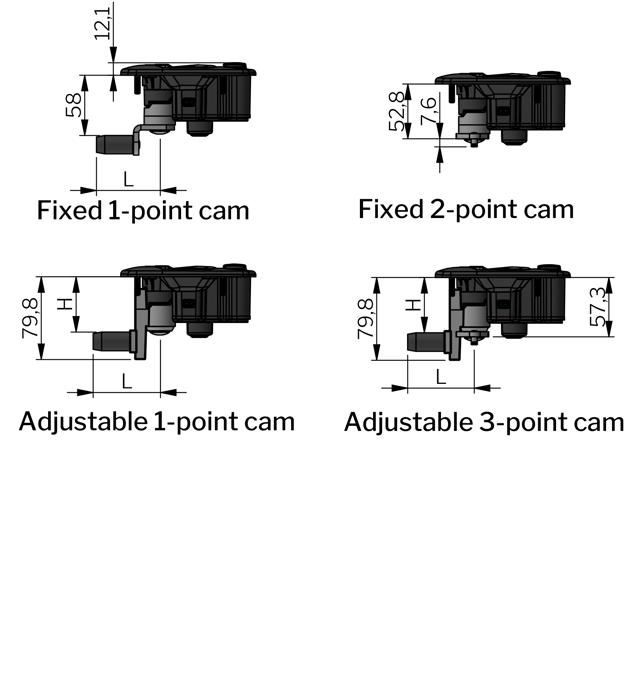

Available for 12- and 24-volt systems and with fixed or adjustable roller cams, as well as 1-, 2- and 3-point latching options.
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Handle | Stainless steel 304, polished or zinc die cast, black texture powder coated |
| Roller | Glass fibre reinforced polyamide (PA6GF30) |
| Shaft | Steel, zinc plated or stainless steel 303 |
| Dust cover, black | Glass fibre reinforced polyamide (PA6GF30) |
| Cast-in bolts | Steel, black passivated |
| Rotating locking device | Stainless steel 303 |
| Body | Glass fibre reinforced polyamide (PA6GF30) |
| Adjustable cam | Zinc die cast, passivated |
| Classifications | IP65, DIN EN 61373 |
| Additional | Electronic interface Power requirements 12VDC/2A or 24VDC/2A, lock/unlock by reverse polarity (impulse length 0,3-1,0 s). Optional sensor output Sensor 1 Handle unlocked – open circuit, handle locked – closed circuit (max 30VDC/500mA). Sensor 2 Handle open – open circuit, handle closed – closed circuit (max 30VDC/500mA, total max 10W). Opening rotation Two- and three-point cams combined with adapter cannot be used with handles with clockwise or 180º rotation. Using two- and three-point cams without adapter works with all opening rotations. The internal enclosure for the electronics inside the Vector T3 meets IP44 (tested with cable entry facing downwards). Maximum tightening torque 2,2 Nm. |
