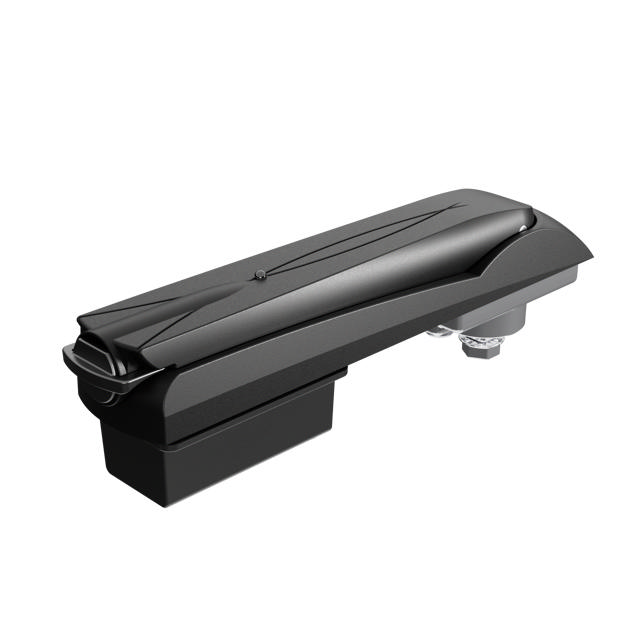

Vision V-MAX 100

Vison V-max 100 is the patent pending mechatronic Vision swing handle that allows control via third-party access control systems. The Vision V-max 100 swing handle unlocks upon receiving an external unlock signal, allowing manual operation by simply turning the handle. When the swing handle is returned to closed position it will latch automatically or remain unlocked for as long as the unlock-signal is present. The locking mechanism has a patent pending anti-tampering function.

A vertical mounted override cylinder is mounted behind a sealed dust cover, which make it impossible to use the mechanical cylinder without breaking the sealed dust cover. The cabinet owner can easily replace a broken seal with a new dust cover when the swing handle is in open position. Can also be ordered without the dust cover. Supplied with a four meter long wiring cable.

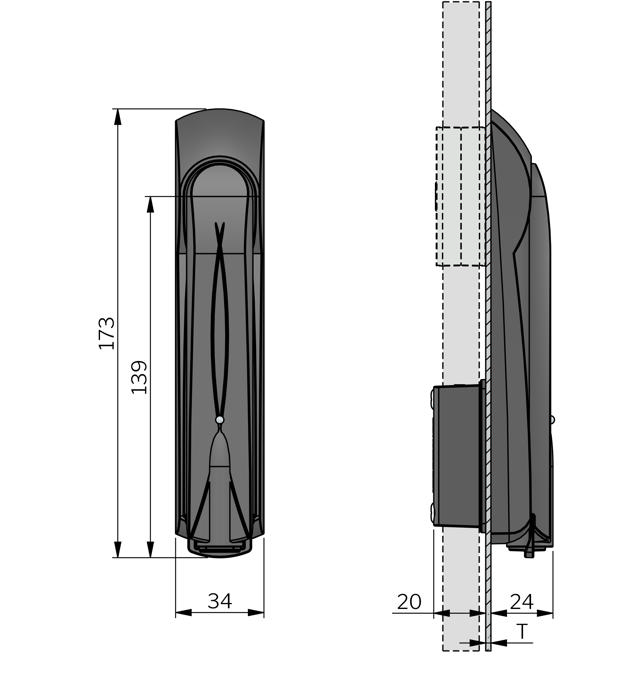

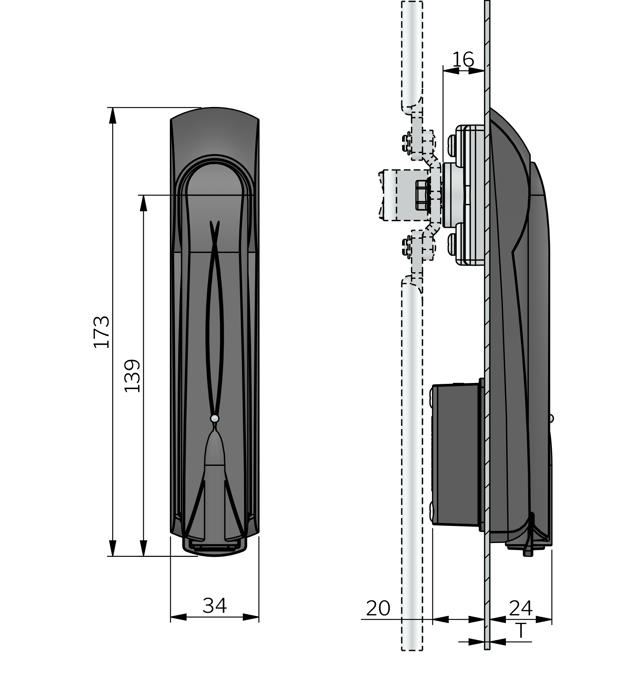

Vision V-Max 100 is mounted in the industry standard cut out (version c) and can be combined with all Vision latching systems. This makes it fully modular and flexible together with the whole range of Industrilas Vision handles and latching systems.
