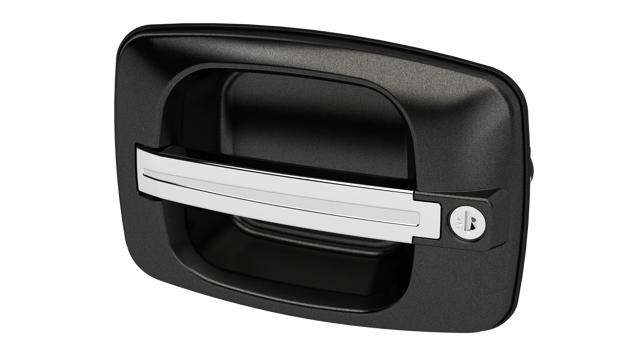

Vector Pull Handle
Index Code 2-850
Robust handle to operate doors equipped with Vector Rotary Latches or Vector Latch Points. The freewheeling locking mechanism ensure the latched status of the door in every situation, regardless of how much force is applied to the handle. Vector Pull Handle is ordered either as an actuator for a single point latching system or as a multi version with the possibility to connect a maximum of three latching points to the handle. The connection to the latch points can be done with either Vector cables or rods. Sealed against water and dust with o-ring and molded TPE-gasket.

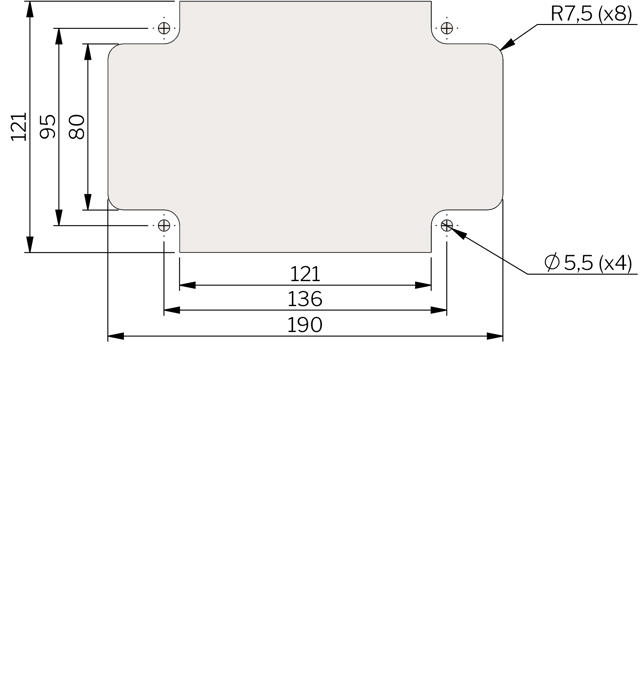

Mounted into the door with the four pre-mounted M5 bolts.
| PDF herunterladen | Recommended Tightening Torque |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Handle | Zinc die cast, chrome plated or black texture powder coated |
| Spring | Spring steel EN 1.4310 |
| Gaskets | TPE |
| Bracket | Steel, zinc plated |
| O-ring | Silicone |
| Cast-in bolts | Steel, zinc plated |
| Body | Polycarbonate and acrylic styrene acrylate terpolymer (PC/ASA) |
| CAD-Format hier wählen: |
| Download here: |
|
2-850 |
|
|
|
|
|
|
|
