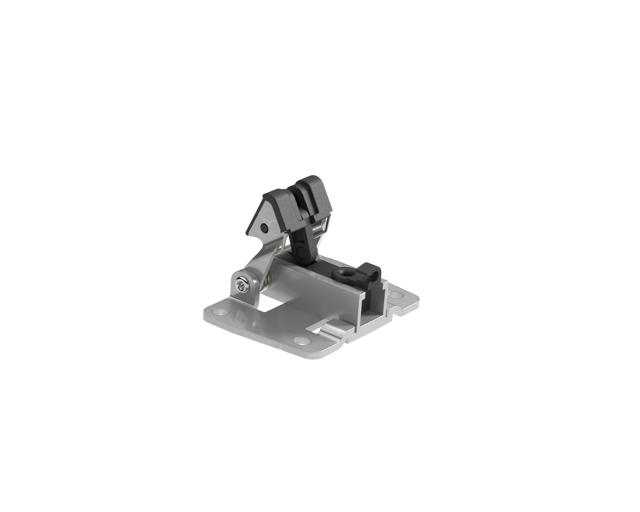

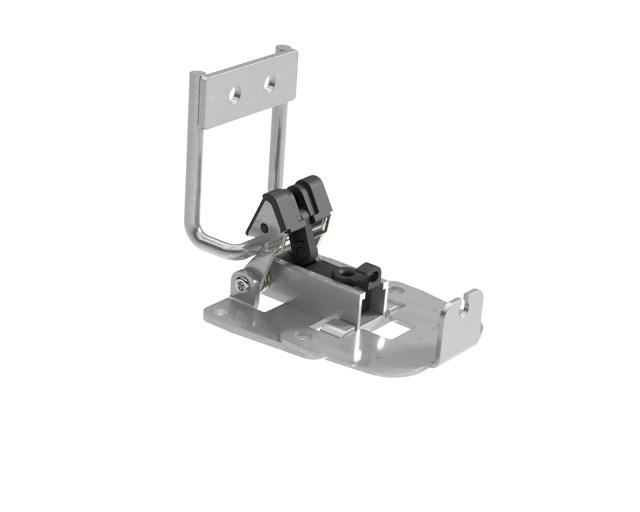

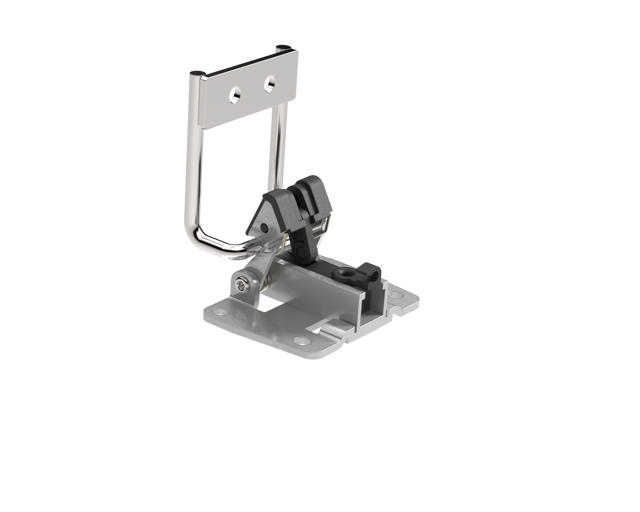

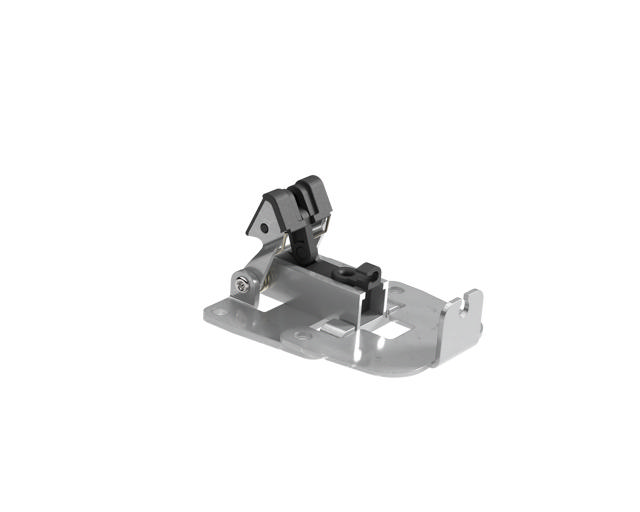

Vector Latch Point

Index Code 2-769

Vector Latch Points offer concealed latch points with convenient push-to-close action for lids or doors. Suitable for a variety of applications that require high strength, robust and secure latching. They are employed either as single latch point or in a multipoint latching system.

Vector Latch Points are connected with Vector Pull handle by Vector rods or cables, creating an optimized latching system with components easily and securely fitted together. Please see related products to choose your components for your complete Vector latching system.

PDF herunterladenRecommended Tightening Torque
CamGlass fibre reinforced polyamide (PA6GF30)
Mounting bracketSteel, zinc plated
StrikerSteel, zinc plated
Choose CAD format here: INFO_TEXT
Download here:
CAD* P/N Description Striker
5229-1110010-00 For rod
5229-1110010-01 For rod
5229-1120010-00 For wire
5229-1120010-01 For wire
