2-252 |

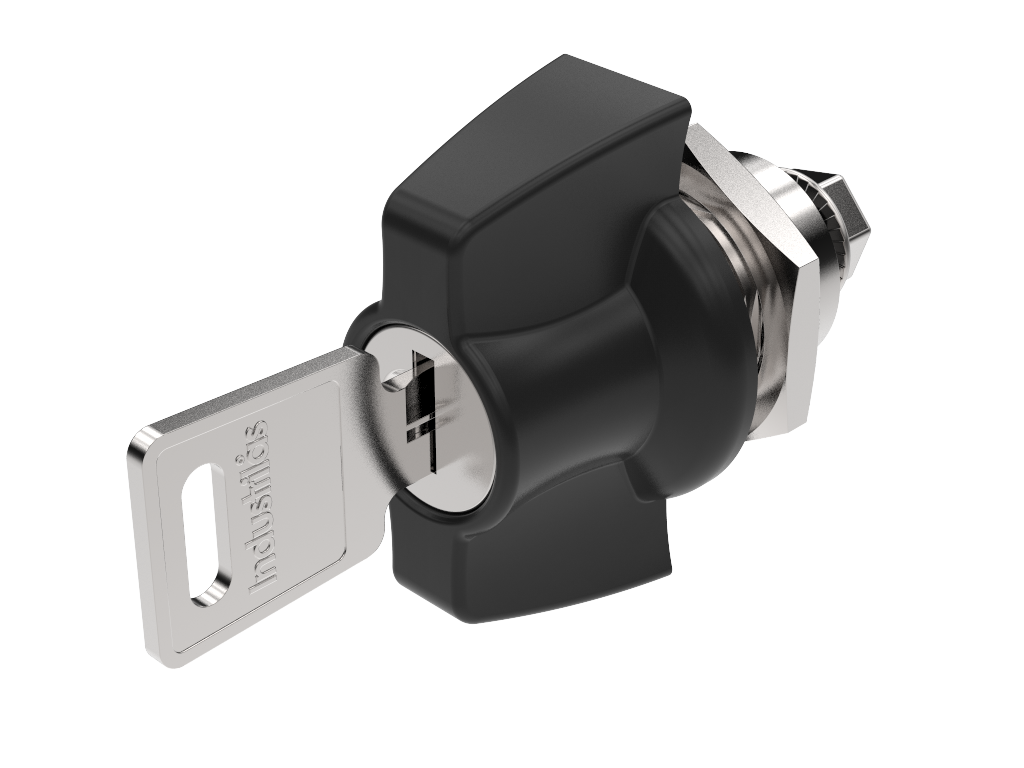

直角回转锁翼形旋钮 18 毫米
Index Code:2-252
该直角回转锁翼形旋钮有上锁或不上锁版本。人体工程学设计令开启时抓握牢固，该旋钮采用适用顺时针或逆时针旋转开启或闭合方式。开启和闭合位置时均可取出钥匙。随附螺母和两把钥匙。IP65 防护等级。
| 下载PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| 锁舌和螺丝 | 钢，镀锌 |
|---|---|
| Cylinder | 锌合金，不锈钢304盖子和防尘片 |
| Earthing nut | 锌合金，镀锌 |
| Housing | 锌合金，镀铬 |
| Standard nut | 锌合金，镀锌 |
| 翼形旋钮 | Zinc die cast, chrome plated, black texture powder coated or glass fibre reinforced Polyamide (PA6GF30), black |
| 开口尺寸 | COMBI |
|---|---|
| 标准 | IP65 |
| 钥匙信息 | Supplied keys: 3 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAB-C-HHLL)
|
|
|
|
