平接铰链
Index Code:3-731
钢制冷轧平接铰链，带或不带埋头孔。适用左右安装方式。
| 下载PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| 铰链 | Steel, zinc plated or untreated |
|---|---|
| 销 | Steel, zinc plated or untreated |

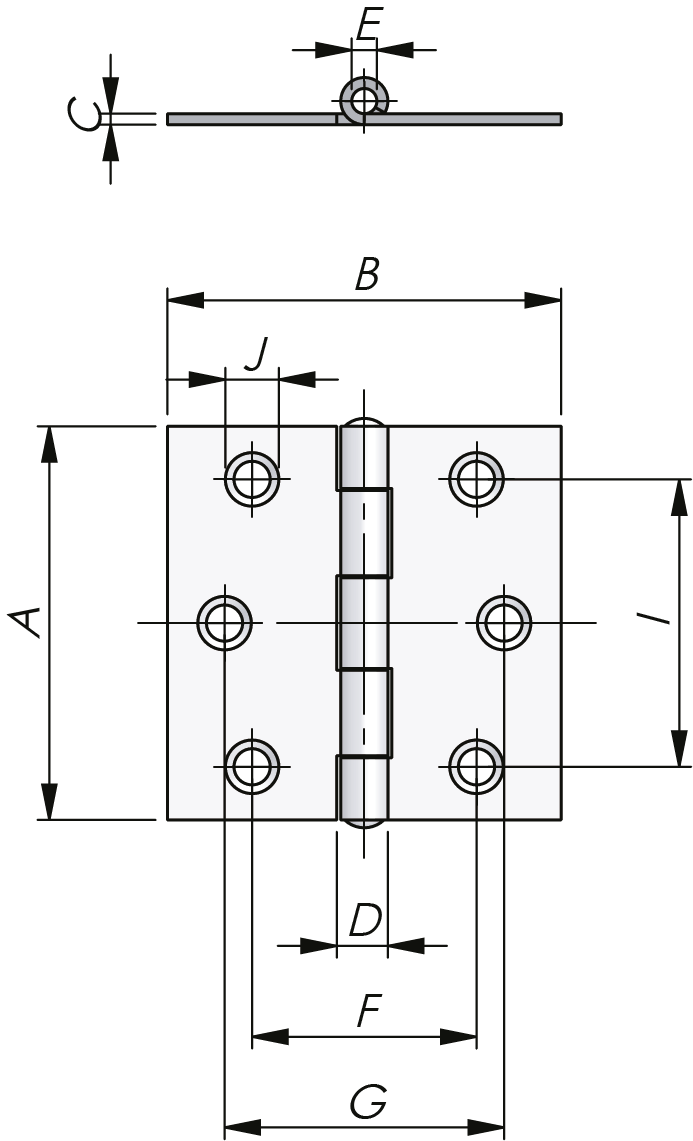

| Notes | Please note that the J-measurement describes the largest diameter of the countersunk - and not the diameter of the hole. For the holed hinges, we recommend any of the following screws for mounting: - Countersunk screws against DIN EN ISO 2009. - Screws with raised countersunk head against DIN EN ISO 2010. - Countersunk screws against DIN EN ISO 7046-1. - Screws with raised countersunk head against DIN EN ISO 7047. |
|---|
| Choose CAD format here:
如要下载此产品的 CAD 文件
|
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
