6-010 |

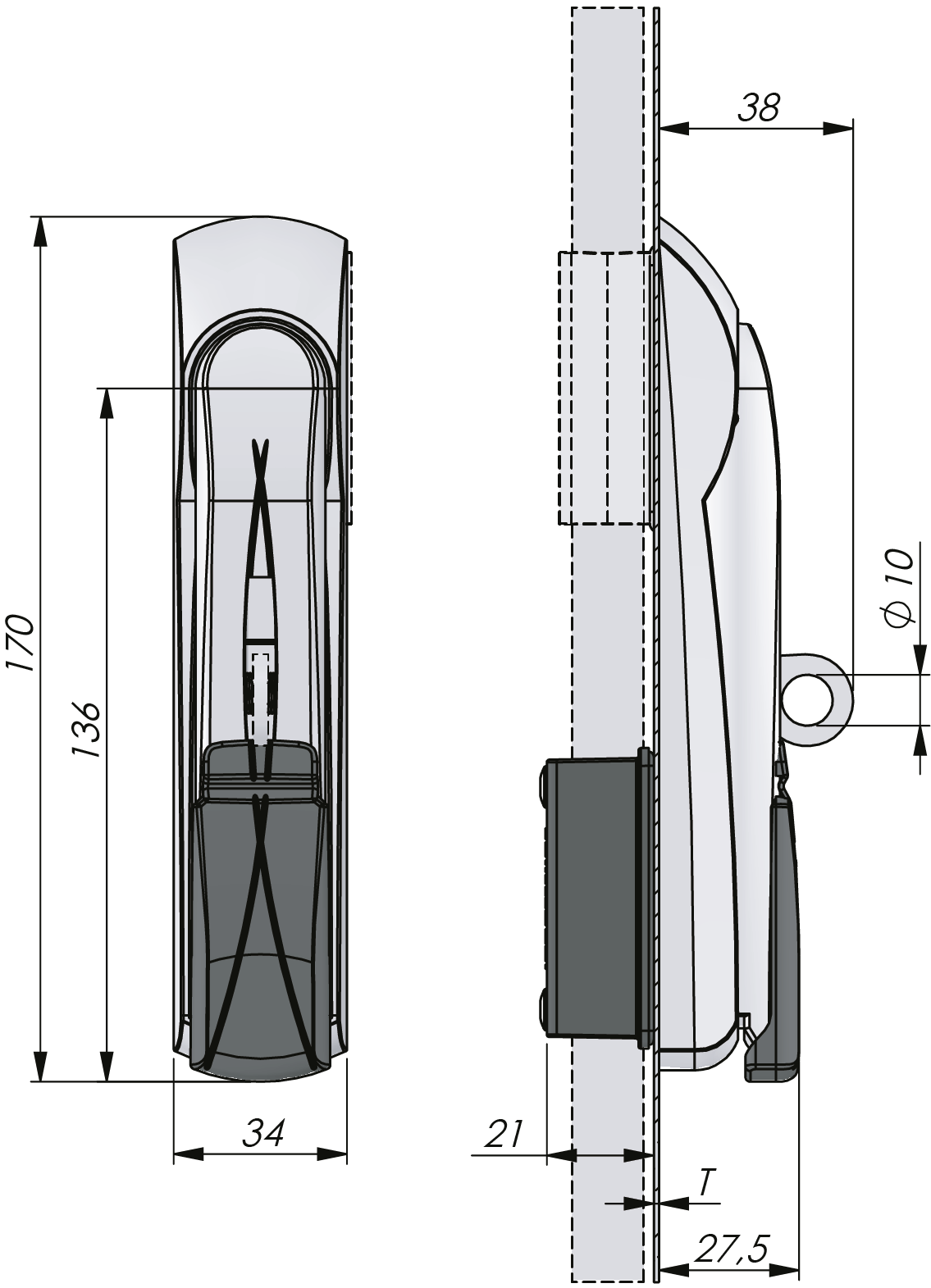

不锈钢 Vision 旋转把手
Index Code:6-010
薄型旋转把手，316 耐酸不锈钢材质，适用于 40 毫米型材锁芯或工具上锁的控制机构。提供转动上锁版本，转动钥匙即可锁门。
| 下载PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| 把手 | 不锈钢 316 |
|---|
| 标准 | IP69K NEMA 4 |
|---|---|
| 开口尺寸 | Version C |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAAABC-DDDD)
|
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
