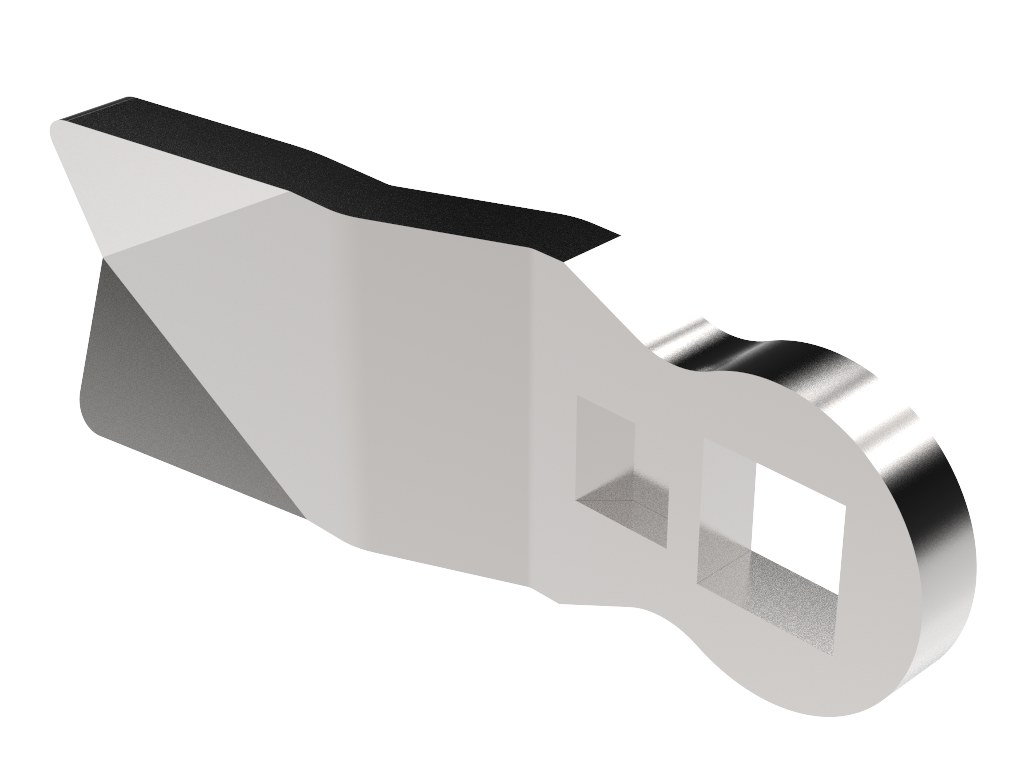

经典单点凸轮 SS 316
Index Code:2-480

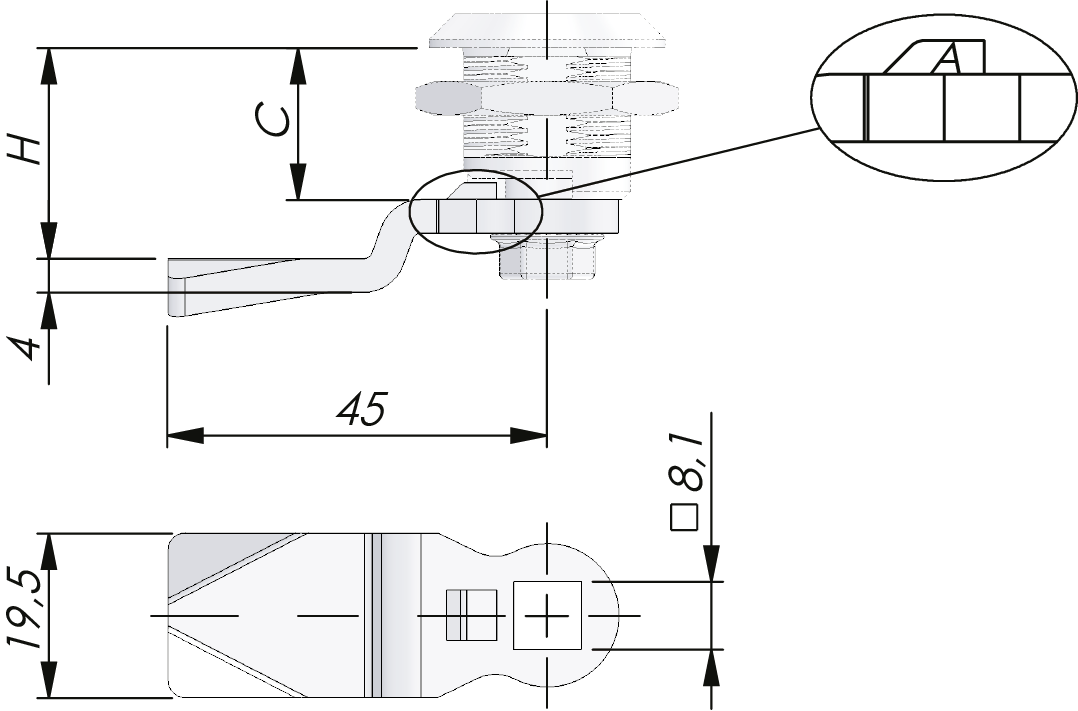

适用于具有外部旋转限制的壳体的单点凸轮。在图纸中，A = 突出物，C = 壳体长度，H = 凸轮接合点外侧面。应要求可提供其他长度和版本。
| 下载PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | 不锈钢 316 |
|---|
| Notes | H in mm when housing length C=12, 18, 30, 40, 45, 50, 56 or 60 mm. |
|---|
| Choose CAD format here:
如要下载此产品的 CAD 文件
|
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
H in mm when housing length C=12, 18, 30, 40, 45, 50, 56 or 60 mm.
