2-220b |

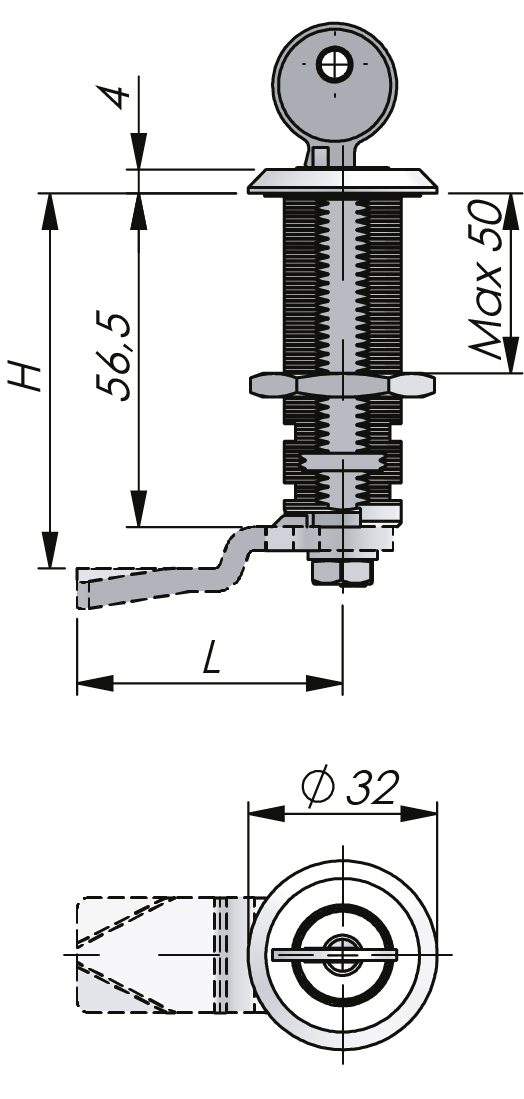

Cerradura de cuarto de vuelta con cilindro de llave - 56.5 mm
Index Code:2-220b
Cerradura de cuarto de vuelta cilindro de llave con giro universal en el sentido de las manecillas del reloj o en sentido contrario a la apertura o el cierre. Se suministra con tuerca. Grado de protección IP54.
| Descargar pdf | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam and screw | Steel, zinc plated |
|---|---|
| Cylinder | Zinc die cast, stainless steel 304 cap |
| Housing | Zinc die cast, chrome plated or black texture powder coated |
| Nut | Zinc die cast, zinc plated |
| Classifications | IP54 |
|---|---|
| Cutout | COMBI |
| Cylinder information | Master key system on request,Supplied with two keys |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAA-BBB-HHLL)
|
|
|
* Master key systems are supplied on request only.
