1-002_12_40mm |

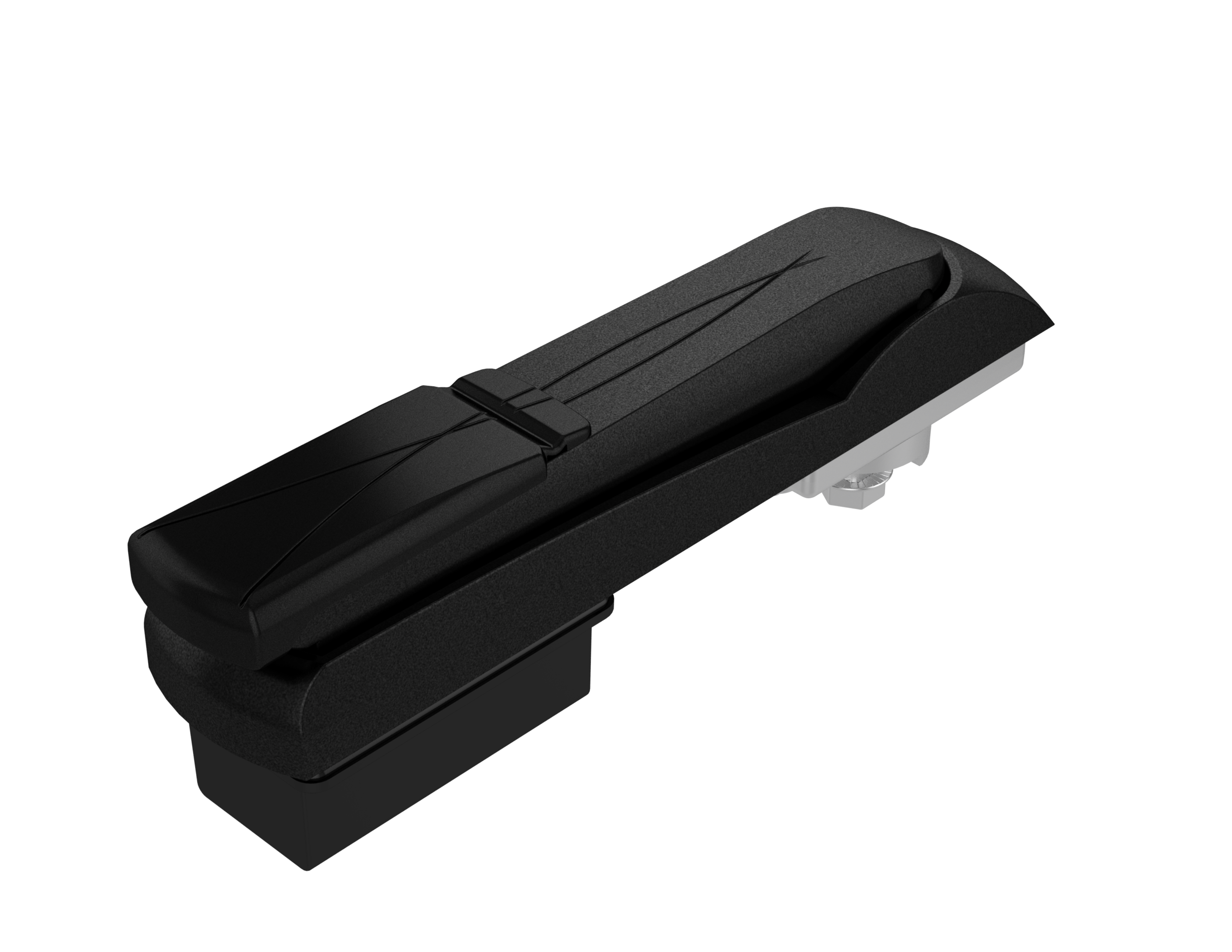

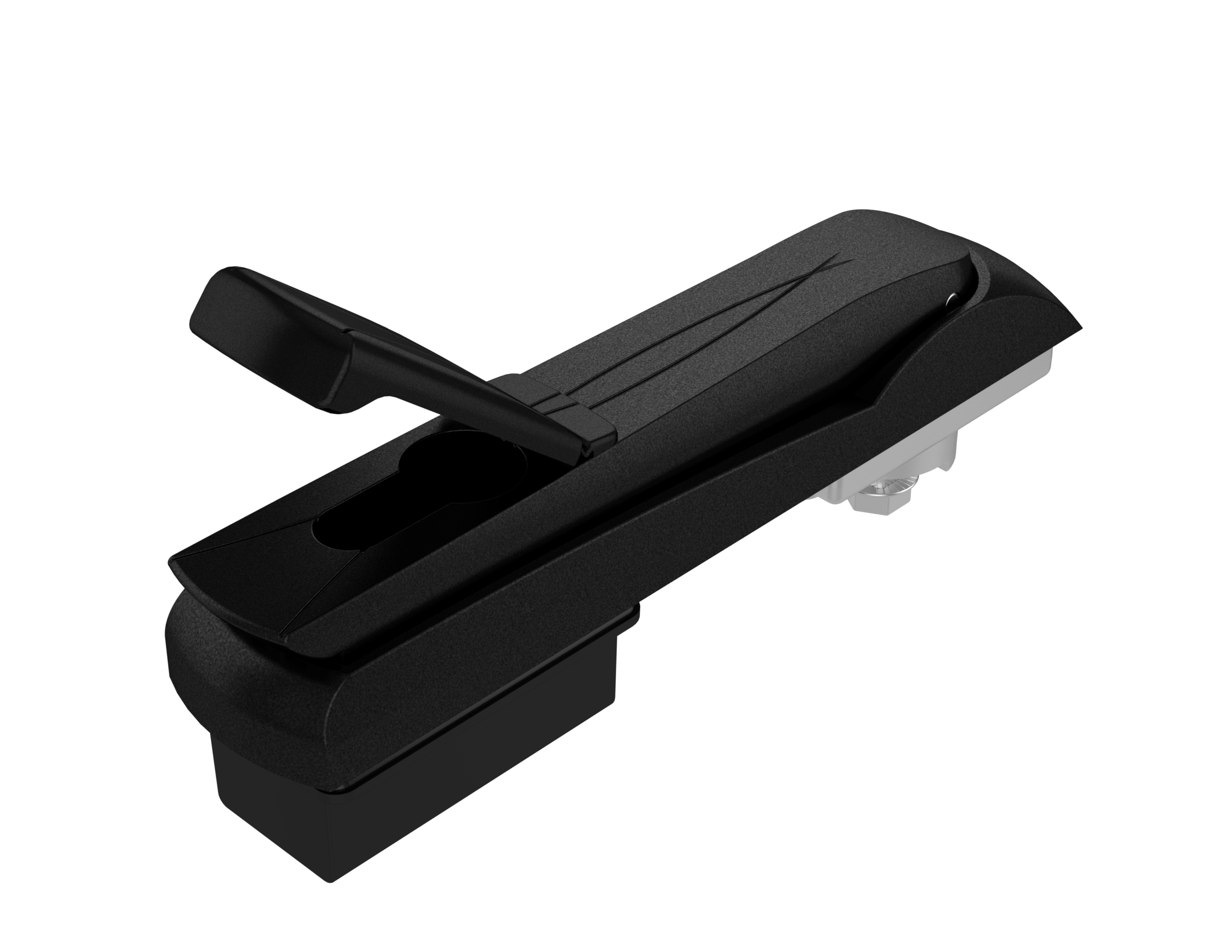

标准适配 40 毫米型材锁芯的 Vision 旋转把手
Index Code:1-002.12
薄型把手，适用于 40 毫米锁芯和凸轮。提供转动上锁版本，转动钥匙即可锁门。
| 下载PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Dish | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
|---|---|
| Dust cover | TPE |
| 把手 | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Pivot shaft | 锌合金，镀锌 |
| 开口尺寸 | Version C |
|---|---|
| Notes | The dust cover adds 4.5 mm. |
| 标准 | IP66 NEMA 4 |
| Specifications | Standard cams with negative bending are not possible to use with this swing handle (negative bended cam will interfere with escutcheon plate). |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAABCD-EEEE)
|
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
