DETAIL1985
    DETAIL4225

    Keys for Insert

    Index Code 2-370

    All key types can be produced with your company logotype on one or both sides.

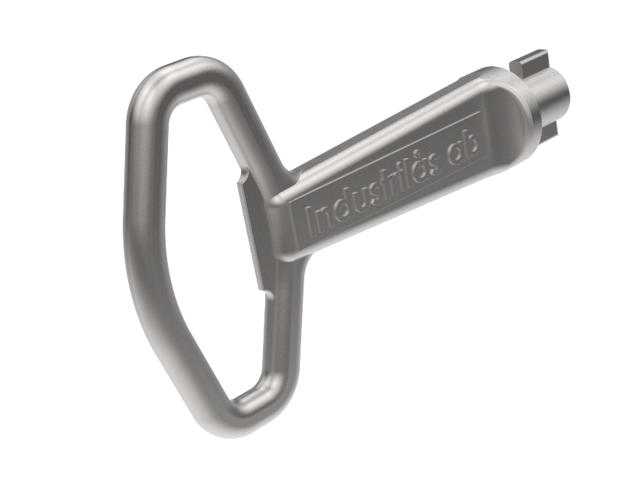

    KeyZinc die cast, zinc plated
    Notes

    Other surface treatments on request.

    Choose CAD format here: INFO_TEXT
    Download here:

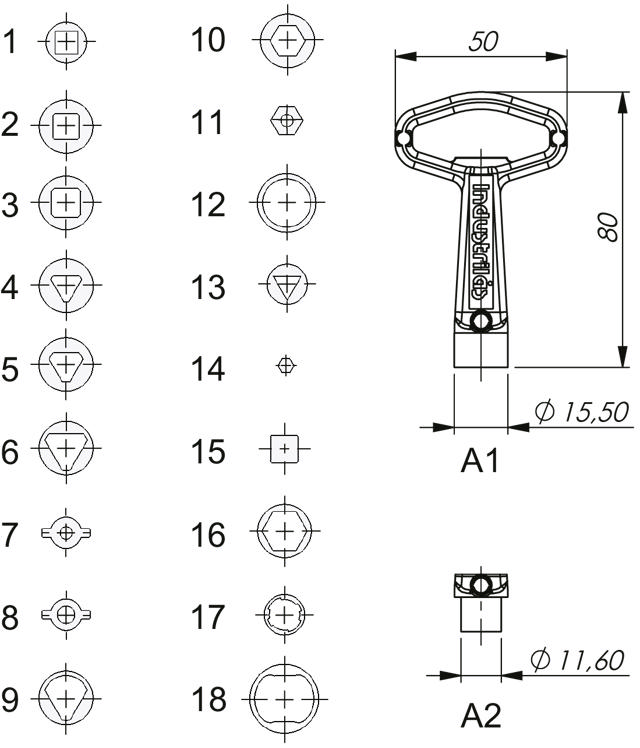

    CAD* P/N Description (OLD) Key Shape Drawing
    		291101 Square 6 A2 1
    		291102 Square 7 A1 2
    		291103 Square 8 A1 3
    		291104 Triangle 7 A1 4
    		291105 Triangle 8 A1 5
    		291106 Triangle 10 A1 6
    		291107 Double Bit 3 A1 7
    		291108 Double Bit 5 A1 8
    		291122 Triangle 10 mm radius A1 9
    		291125 Hexagon 8.5 mm A1 10
    		291136-A8 Recessed hexagon 8 / 3 mm pin A1 11
    		291140 Stockholm Energy (Key length 90 mm) A1 12
    		291141 Recessed square 8 A1 15
    		291143 Hexagon 11 A1 16
    		291151 Hygiene latch (Key length 90 mm) A1 18
    		291156 Tubular Asymmetric A2 17
