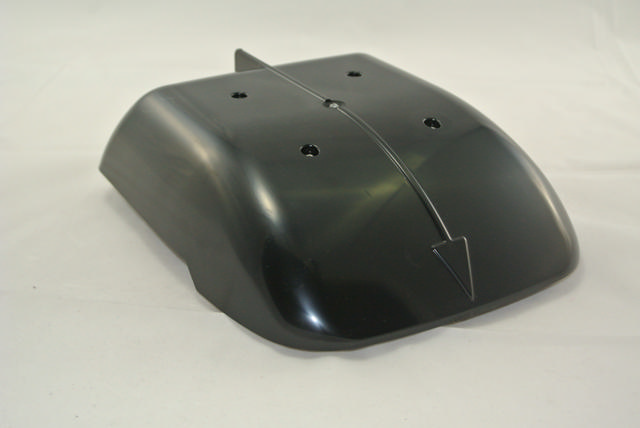

Winglet ventilator

    Index Code 5-822

    The standard mounting of the winglet suits a roof thickness of 1-17mm. Other mounting sets are available on request. This vent requires a roof cut out of Ø 80mm. The Winglet comes complete with the open and close valve. These products are EMC Approved.

    Air flow65 m3/h
    Noise level32 DB(A)
    FunctionSuction / Blowing
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Old P/N Material Voltage Watt Rooftop Opening
    		5400-002-0003-01 02-5000 ABS / White 12V 3W 80mm
    		5400-002-0003-02 02-5100 ABS / Black 12V 3W 80mm
