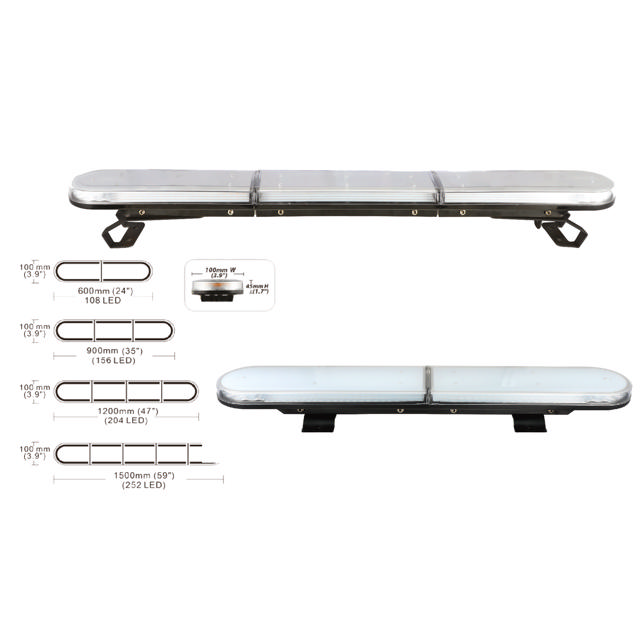

Light bar 770
Index Code 5-914
Flash Patterns 27 Patterns
Approvals ECE R10, ECE R65 Class 1/2, Meets CAP168
Voltage 12-24v
IP Rating IP67
LEDs see above
Colours Amber
Mounting Bracket
Additional Features Magnet available 600mm
Dimensions 100mm wide 45mm deep
Box Qty 1
Housing Material Polycarbonate
Lens Material Polycarbonate
