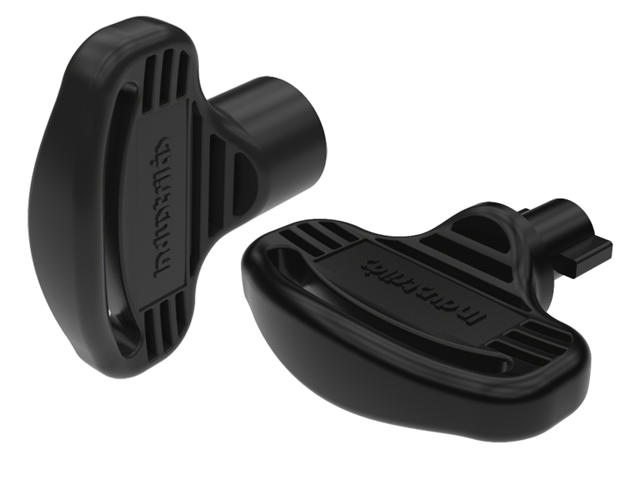

Keys for Insert
Index Code 2-372
Provided with slot for a key ring. The key can be produced with your company logotype upon request.

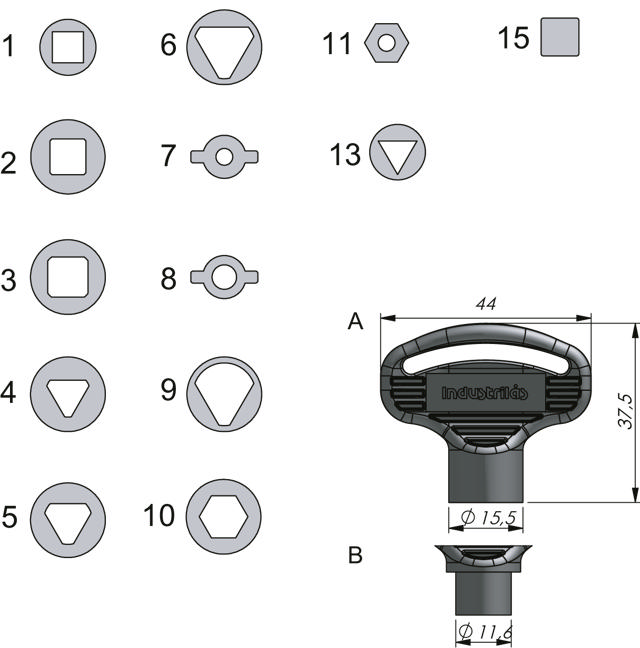

Key shape A: Used with standard quarter-turn latches.
Key shape B: May be used with either standard or compact quarter-turn latches.
| Key | Glass fibre reinforced Polyamide (PA6GF30), black |
| Notes | Other colours on request. |
| Choose CAD format here: INFO_TEXT |
| Download here: |
| CAD* | P/N | For insert | Shape | Drawing |
|---|---|---|---|---|
| 29501001 | Square 6 | B | 1 | |
| 29501002 | Square 7 | B | 2 | |
| 29501003 | Square 8 | B | 3 | |
| 29501004 | Triangle 6,5 | B | 13 | |
| 29501005 | Triangle 7 | A | 4 | |
| 29501006 | Triangle 8 | A | 5 | |
| 29501007 | Triangle 10 | A | 6 | |
| 29501008 | Double bit 3 | A | 7 | |
| 29501009 | Double bit 5 | A | 8 | |
| 29501010 | Hexagon 8,5 | A | 10 | |
| 29501011 | Triangle 10 radius | A | 9 | |
| 29501012 | Recessed hexagon 8/3 mm pin | B | 11 | |
| 29501013 | Recessed square 8 | A | 15 |
