Keys for Insert
Index Code 2-380

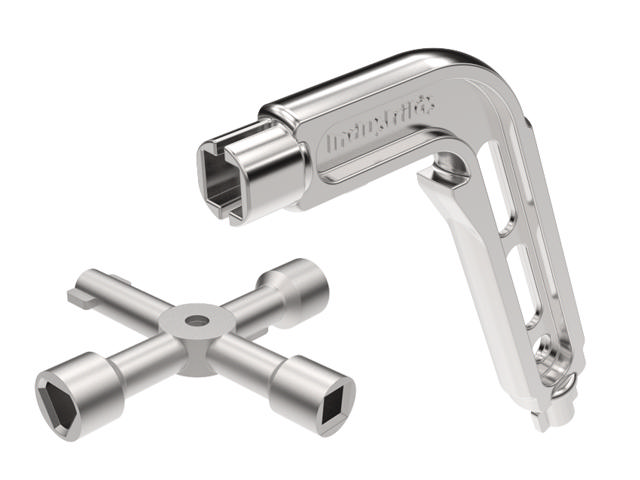

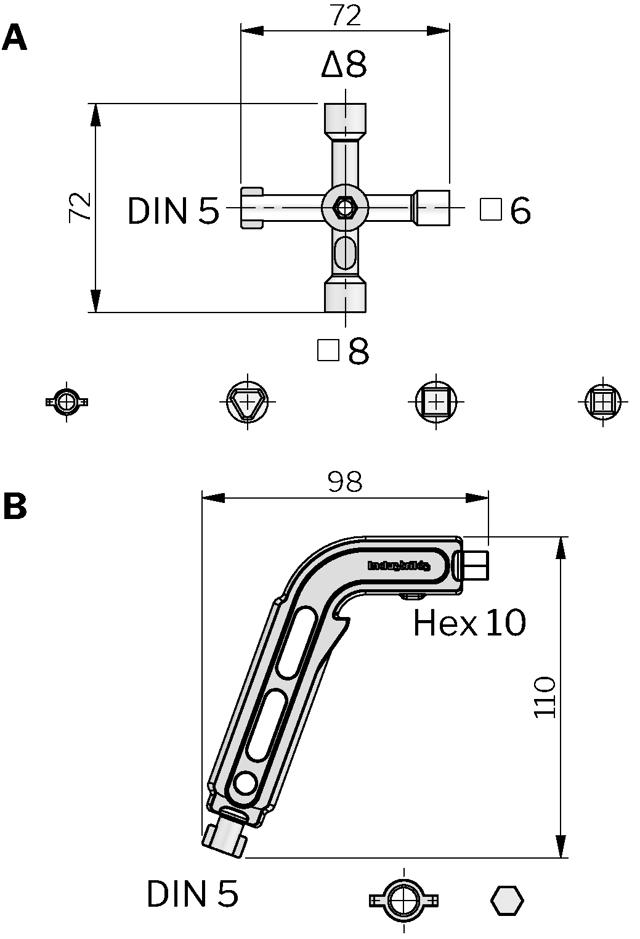

Three different multi-keys: top drawing: multi-key with four key grips:
P/N 291135: Triangular 8, Square 6, Square 8 and DIN 5. The hexagon opening in the centre of the key works as a bit holder for a standard screwdriver-styled bit.
Bottom drawing: multi-key with two key grips are available in two different versions:
P/N 291100-2435-01: DIN 5 and Hex 10 (shown)
P/N 291100-2430-01: DIN 5 and Deutsche Bahn (also known as DB)
| Key | Zinc die cast, zinc plated |
| Notes | On request, key 291153/-57 can be made with a combination of other inserts and / or customer logotype. Other colours on request. DIN 5 also known as Double Bit 5 |
| Choose CAD format here: INFO_TEXT |
| Download here: |
| CAD* | P/N | Description (OLD) | Drawing |
|---|---|---|---|
| 291135 | Four-way multi-key with bit holder (top drawing) | A | |
| 291100-2435-01 | Two-way multi-key with bits Hex 10 and DIN 5 (bottom drawing) | B | |
| 291100-2430-01 | Two-way multi-key with bits Deutsche Bahn and DIN 5 | Not shown |
