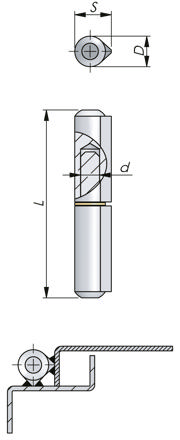

    DETAIL2997

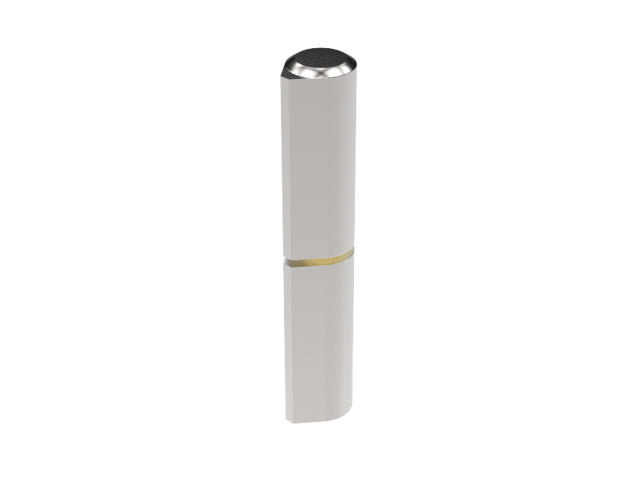

    Weld-On Hinge

    Index Code 3-592
    Universally right or left mounted Lift-off function

    Weld-on hinge with fixed pin. Universal left and right mounting.

    HingeExtruded steel profile
    PinSteel or brass
    WasherBrass
    Choose CAD format here: INFO_TEXT
    Download here:

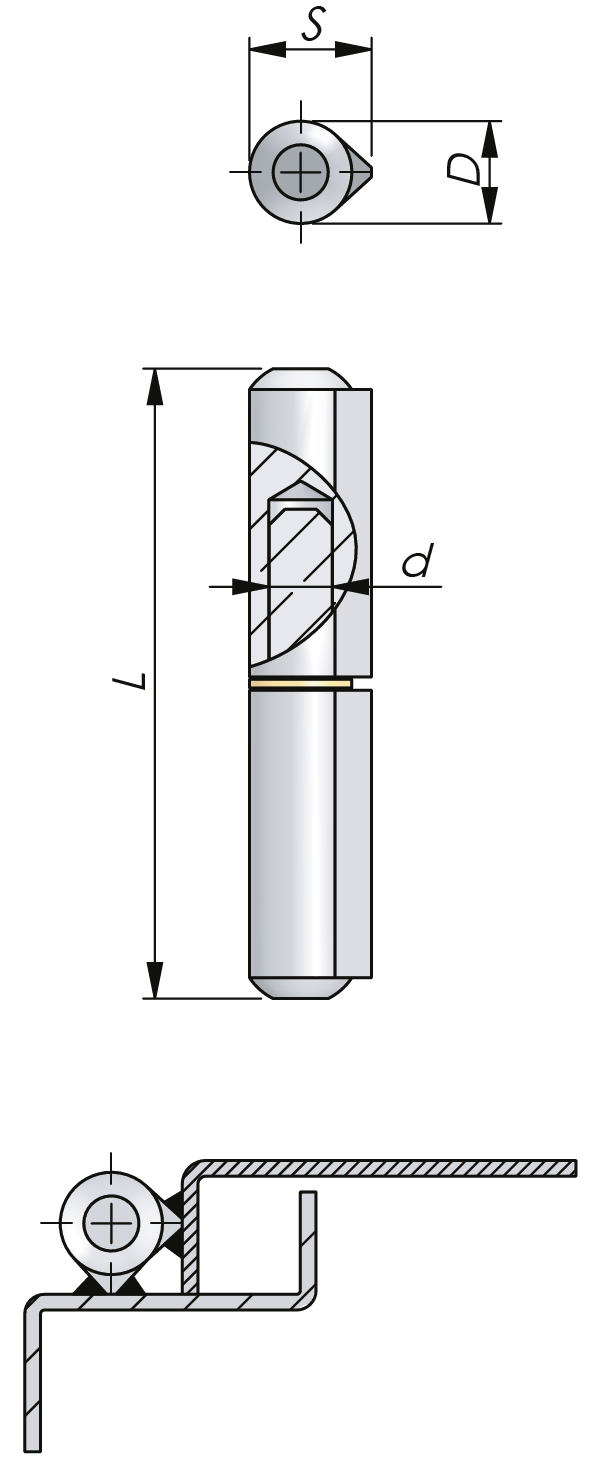

    CAD* P/N D L S d Pin material
    		332000-A040 8,0 40 10,0 5,0 Steel
    		332000-A050 8,0 50 10,0 5,0 Steel
    		332000-A060 10,0 60 12,0 6,0 Steel
    		332000-A070 11,5 70 13,5 6,0 Steel
    		332000-A080 13,0 80 16,0 8,0 Steel
    		332000-A100 16,0 100 20,0 10,0 Steel
    		332000-A120 16,0 120 20,0 10,0 Steel
    		332000-A135 18,0 135 22,0 12,0 Steel
    		332000-A150 20,0 150 25,0 13,0 Steel
    		332000-A180 20,0 180 25,0 14,0 Steel
    		332000-A200 23,0 200 29,0 16,0 Steel
    		338000-A040 8,0 40 10,0 5,0 Brass
    		338000-A050 8,0 50 10,0 5,0 Brass
    		338000-A060 10,0 60 12,0 6,0 Brass
    		338000-A070 11,5 70 13,5 6,0 Brass
    		338000-A080 13,0 80 16,0 8,0 Brass
    		338000-A100 16,0 100 20,0 10,0 Brass
    		338000-A120 16,0 120 20,0 10,0 Brass
    		338000-A135 18,0 135 22,0 12,0 Brass
    		338000-A150 20,0 150 25,0 13,0 Brass
    		338000-A180 20,0 180 25,0 14,0 Brass
    		338000-A200 23,0 200 29,0 16,0 Brass
