    Heavy-Duty Weld-On Hinge

    Index Code 3-675
    180° opening angle of hinges Universally right or left mounted

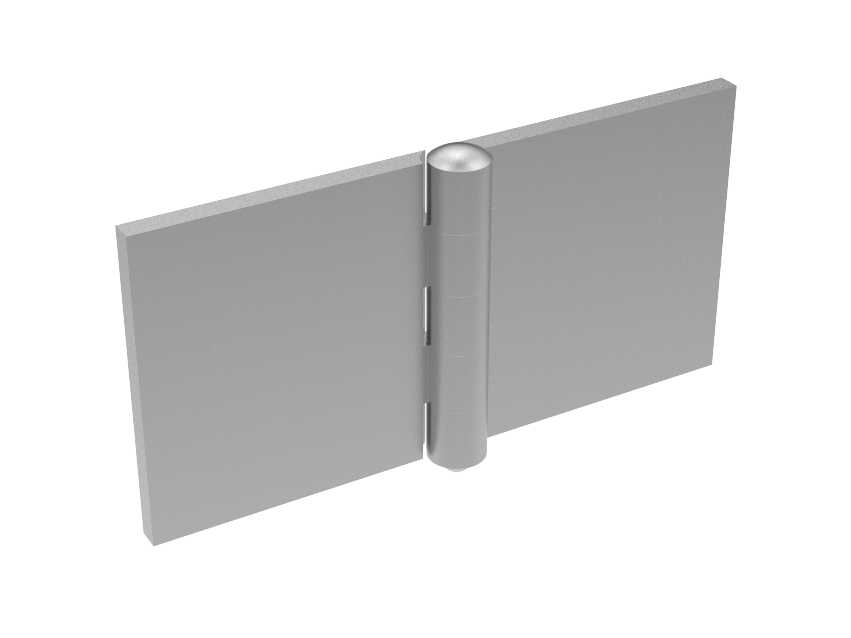

    Weld-on hinge made from forged profile steel. The hinge is specially designed for train- and automotive applications. Universal left and right mounting.

    HingeForged steel, unplated
    NotesOther sizes and versions are available on request. Also available with grease nipple.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N A B C D E
    		3420-2030-004060 40 60 5 12 6
    		3420-2030-040120 40 120 5 12 6
    		3420-2030-040200 40 200 5 12 6
    		3420-2030-050120 50 120 5 12 6
    		3420-2030-050200 50 200 5 12 6
    		3420-2030-080160 80 160 6 15 8
    		3420-2030-080200 80 200 6 15 8
