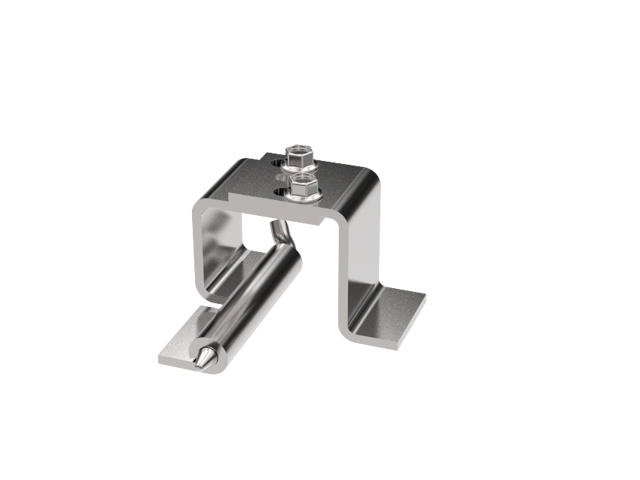

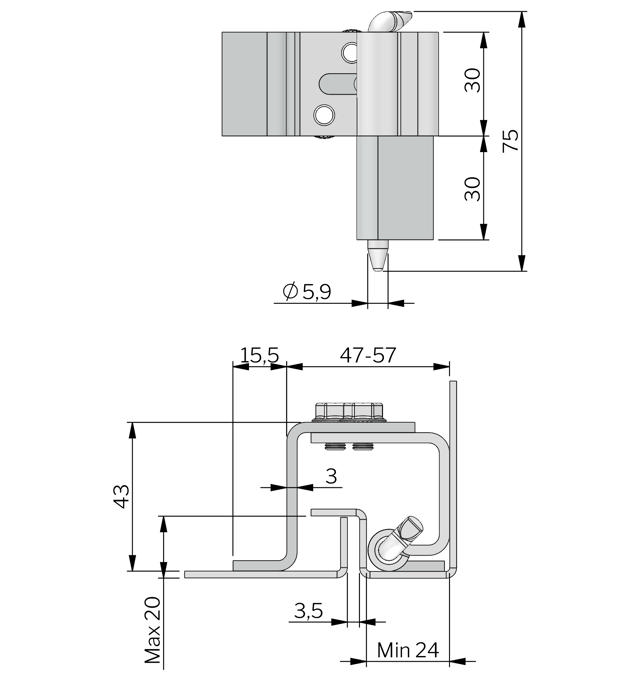

    Concealed Adjustable Lift Off Hinge 100°

    Index Code 3-010
    100° opening angle of hinges Universally right or left mounted Adjustable horizontally (X-axle)

    Adjustable concealed hinge for weld-on mounting with universal left and right mounting. The door part is adjustable 10 mm horizontally.

    NutSteel, zinc plated
    ScrewSteel, zinc plated
    PinSteel, zinc plated
    Door part, Z-shapedSteel, unplated (for welding)
    Door part, rolledSteel, zinc plated
    Frame partSteel, unplated (for welding)
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD)
    		312101 Concealed hinge - steel
