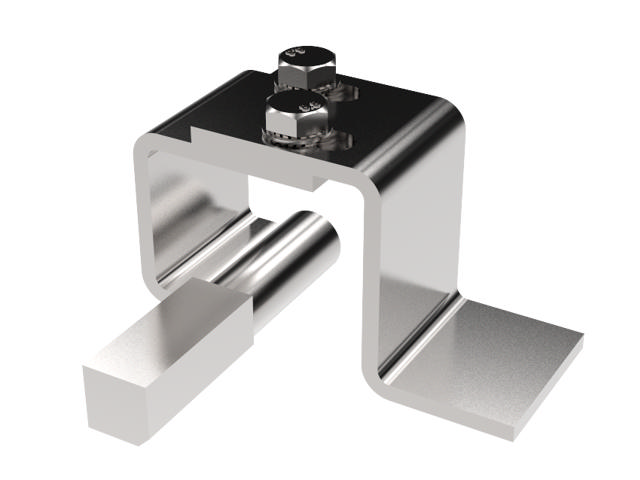

    Concealed Adjustable Lift Off Hinge 100°

    Index Code 3-020
    100° opening angle of hinges Universally right or left mounted Adjustable horizontally (X-axle) Lift-off function

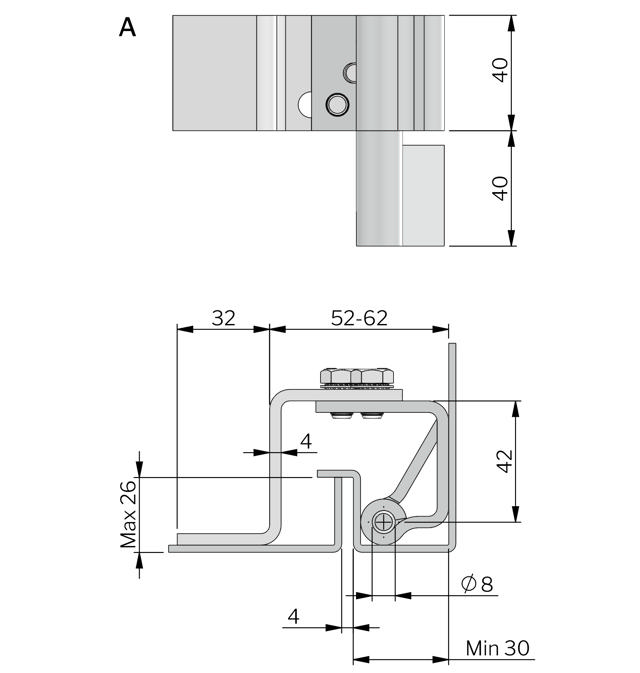

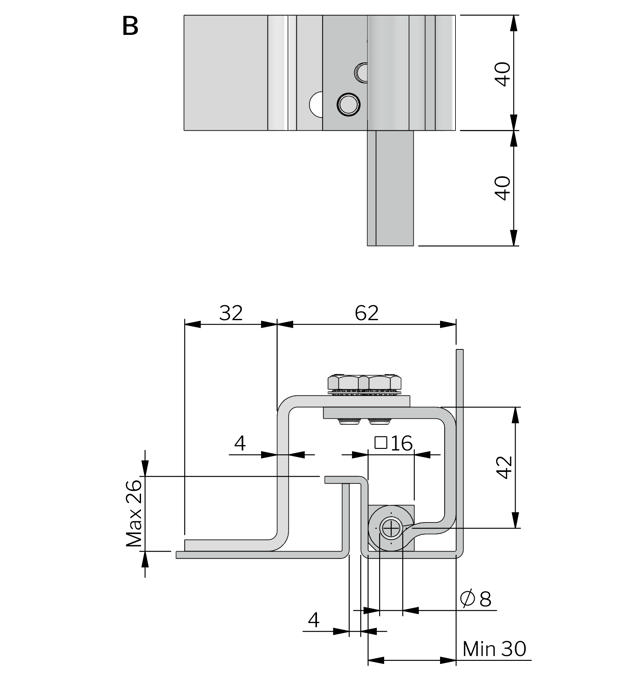

    Adjustable concealed hinge for weld-on mounting with universal left and right mounting. The door part is adjustable 6 mm horizontally. Frame part may be supplied as either a flag (drawing A) or a square pin (drawing B).

    NutSteel, zinc plated
    ScrewSteel, zinc plated
    PinSteel, unplated (for welding)
    Door part, Z-shapedSteel, unplated (for welding)
    Door part, rolledSteel, zinc plated
    Frame partSteel, unplated (for welding)
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD) Drawing
    		312102 Flag A
    		312103 Square pin B
