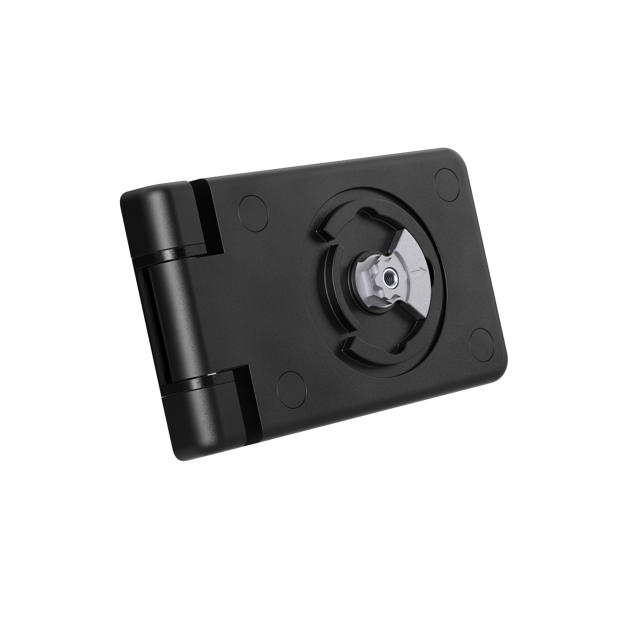

Klima-flex 3 Latch Hinge

Index Code 2-333
180° opening angle of hinges Universally right or left mounted Adjustable vertically (Y-axle) Lift-off function Classified according to VDI 6022 Latch with compression function

The patented Klima-flex 3 latch hinge is designed specifically for insulated and pressurized doors and provides supreme sealing qualities and tactile feedback. The latch hinge creates 3 mm compression and allows you to open the doors 180º in either direction, or to remove the door completely. Oval holes in frame part offer three mm vertical adjustment. The conical guide between frame and door part facilitates the fitting of the door during assembly.

The Klima-flex 3 latching hinges are combined with your choice of Klima-flex 3 handles (2-331).

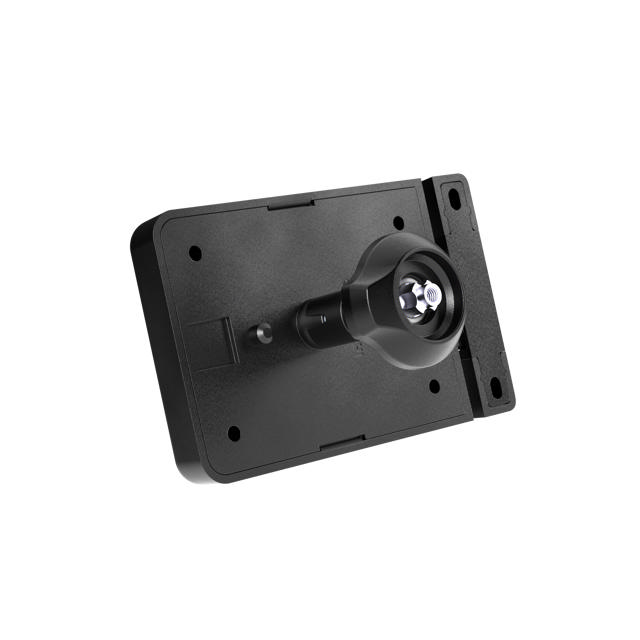

There is one surface mount version which is mounted directly on the outer door skin. With the through mount version, options such as safety catches, inside handles or interlink rods can be mounted. Interlink rods which connect two or more Klima-flex 3 latching hinges gives the possibility to open all Latching hinges on one side by only operating one handle. This is also the to-go solution if latching hinges needs to be mounted at a height which is difficult to reach.

Frame part is identical for Klima-flex 3 Latch hinge as for Klima-flex 3 hinges (3-165), making it easy to chose later if a door with latching hinges on one side, and hinges on the other side, shall be left or right hinged.

PinSteel, zinc plated
Frame partGlass fibre reinforced Polyamide (PA6GF30) and zinc, black powder coated
ShaftZinc die cast, zinc plated
Base plateGlass fibre reinforced Polyamid (PA6GF30)
Latching camGlass fibre reinforced polyamide (PA6GF30)
CoverGlass fibre reinforced polyamide PA6 (PA6GF30)
Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

CAD* P/N Description Door thickness

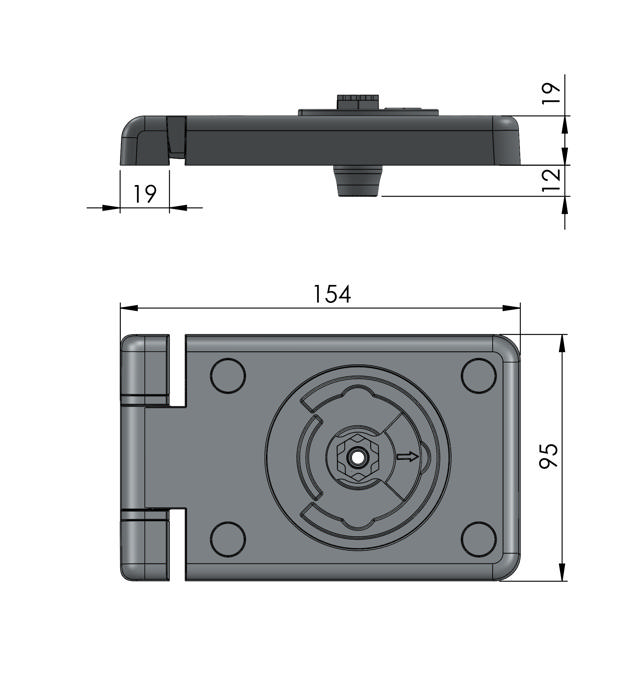

2653-500000-000 Surface Mount - for all door thicknesses For surface mount

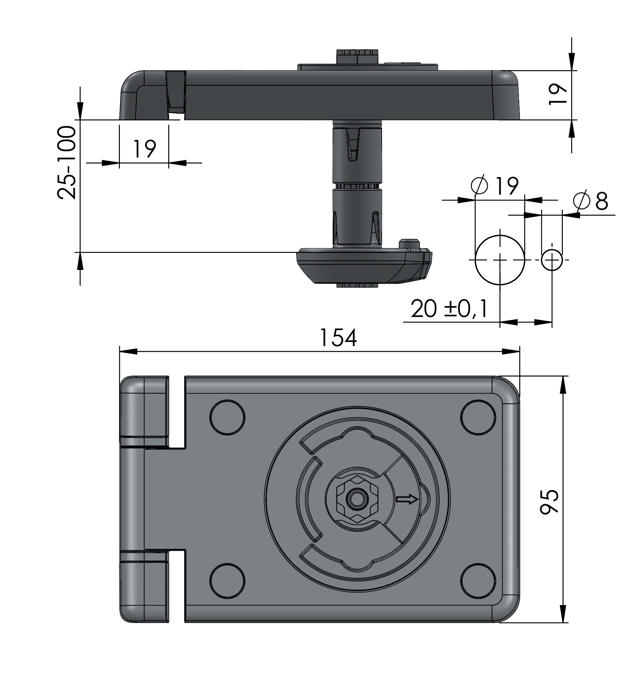

2653-510000-050 Through Mount without Sleeve 50 mm
2653-510001-050 Through Mount 50 mm
