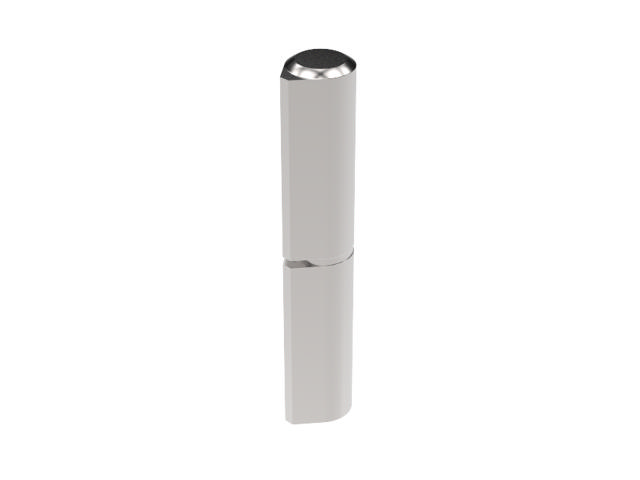

    Weld-On Hinge

    Index Code 3-632
    Universally right or left mounted Lift-off function

    Aluminium weld-on hinge. Universal left and right mounting.

    HingeExtruded aluminium profile
    PinStainless steel 303
    WasherStainless steel 303
    Choose CAD format here: INFO_TEXT
    Download here:

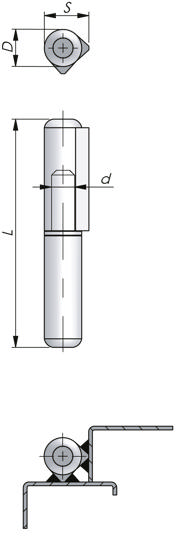

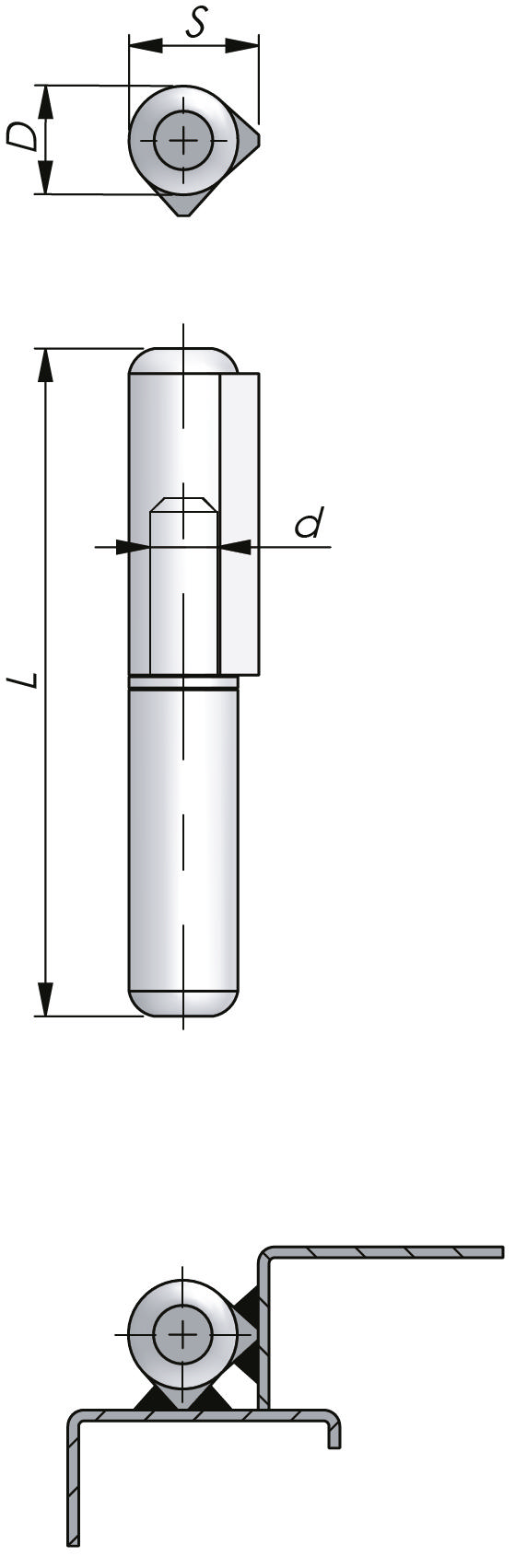

    CAD* P/N D L S d
    		334000-A060 10,0 60 12,0 6,0
    		334000-A070 11,5 70 13,5 6,0
    		334000-A080 13,0 80 16,0 8,0
    		334000-A100 16,0 100 20,0 10,0
    		334000-A120 16,0 120 20,0 10,0
    		334000-A150 20,0 150 25,0 13,0
    		334000-A180 20,0 180 25,0 14,0
