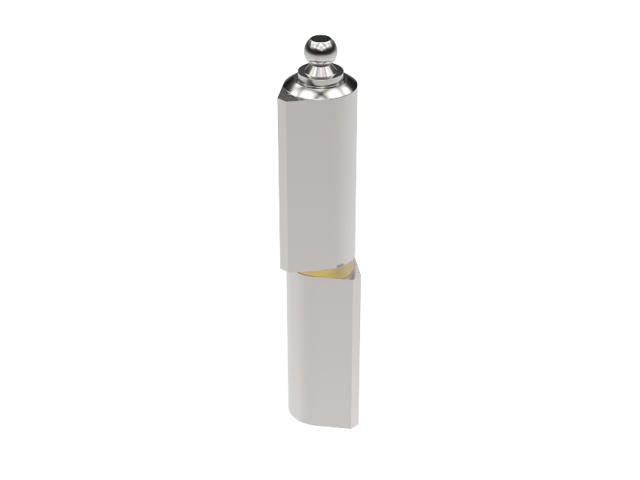

    Weld-On Hinge with Grease Nipple

    Index Code 3-612
    Universally right or left mounted Lift-off function

    Weld-on hinge with grease nipple. Universal left and right mounting.

    HingeExtruded steel profile
    PinBrass
    WasherBrass
    Choose CAD format here: INFO_TEXT
    Download here:

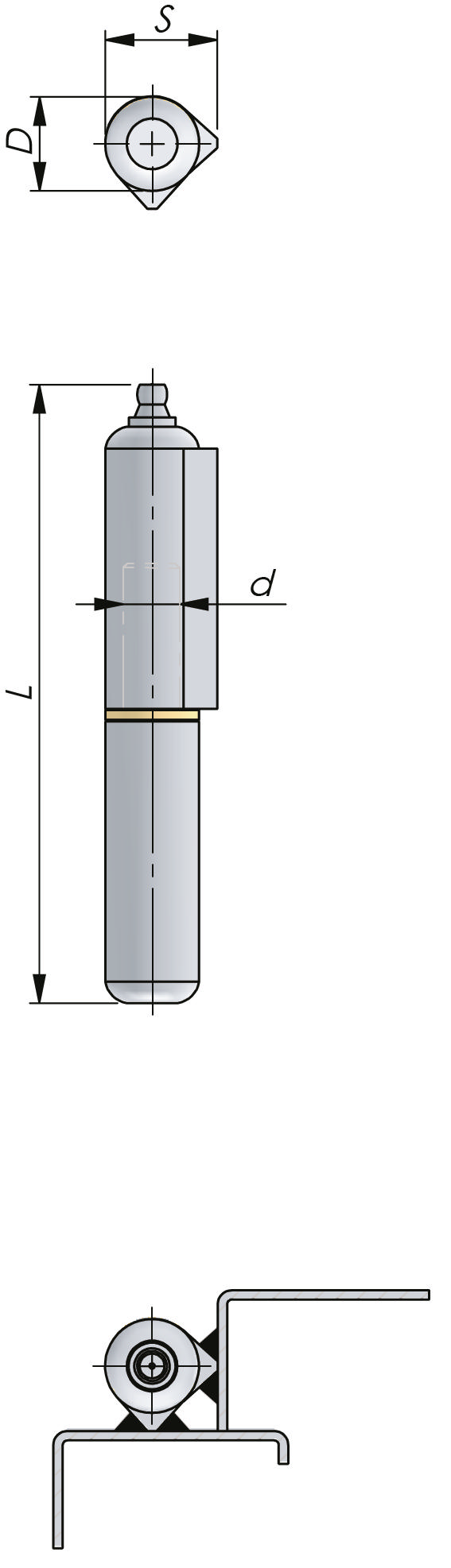

    CAD* P/N D L S d
    		338005-A080 13,0 80 16,0 8,0
    		338005-A100 16,0 100 20,0 10,0
    		338005-A120 16,0 120 20,0 10,0
    		338005-A135 18,0 135 22,0 12,0
    		338005-A150 20,0 150 25,0 13,0
    		338005-A180 20,0 180 25,0 14,0
    		338005-A200 23,0 200 29,0 16,0
