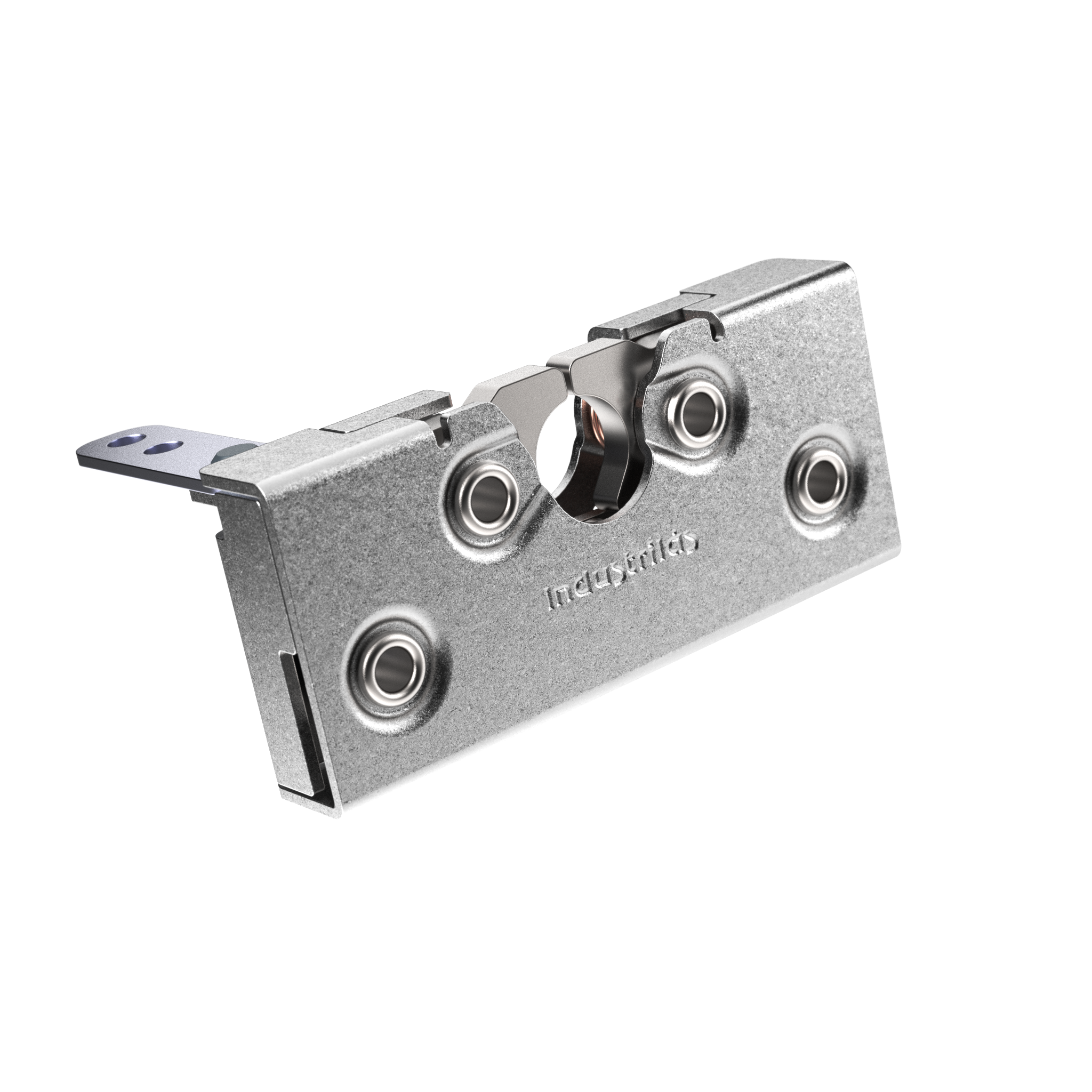

Vector Heavy Duty Double Jaw Rotary
Index Code:Vector rotary latches offer concealed latch points with convenient push-to-close action. Vector Rotaries are suitable for a variety of applications that require high strength, robust and secure latching in a single point or multipoint latching system. The Vector Heavy Duty Double Jaw Rotary is especially designed to be used in a cabin door, where the double claw allows some tolerances when catching the striker. This two-stage rotary offers a safety feature that securely latches a partially latched door. Specially engineered to offer minimized trigger release force that ensures smooth and easy opening. The Vector Heavy Duty Double Jaw Rotary offers multiple trigger configurations for easy installation in systems with multiple actuator handles. It’s prepared for even further trigger options, which are offered upon request.
Vector rotaries are combined with Vector actuators that connect to the rotary latch by Vector rods or cables, creating an optimized latching system with components easily and securely fitted together. Please see related products to choose your components for your complete Vector rotary latching system.
Download PDF | Product Data Sheet |
Housing | Steel, zinc plated or zinc nickel |
---|---|
Cam | Hardened steel, anti-friction coating |
Trigger | Steel, zinc plated or nickel plated |

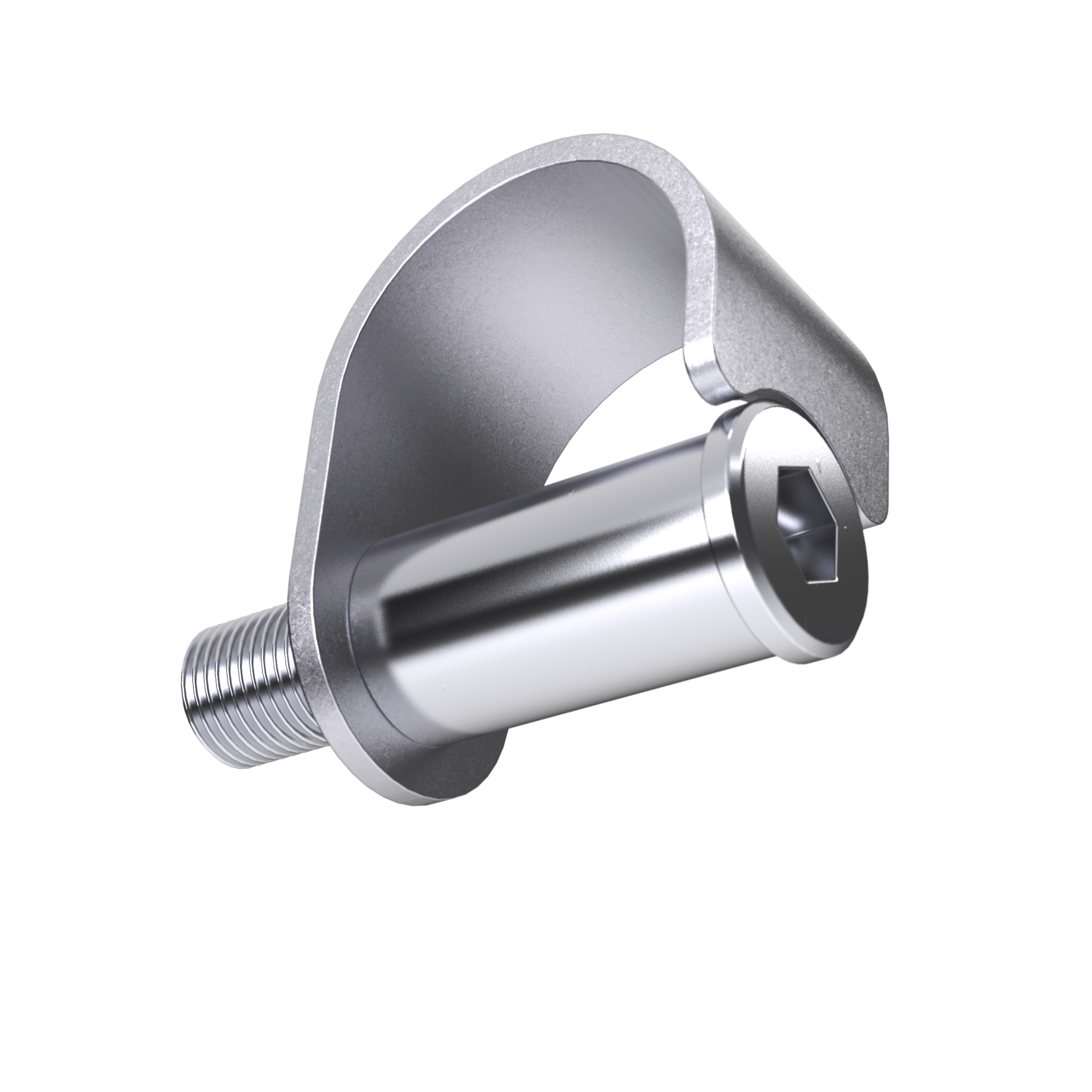

Striker | Steel, zinc plated or zinc nickel |
Striker protection | Steel, zinc plated or zinc nickel |
Clip | Glass fibre reinforced polyamide (PA6GF30) |
|
|
|
|
|
|
|
|
