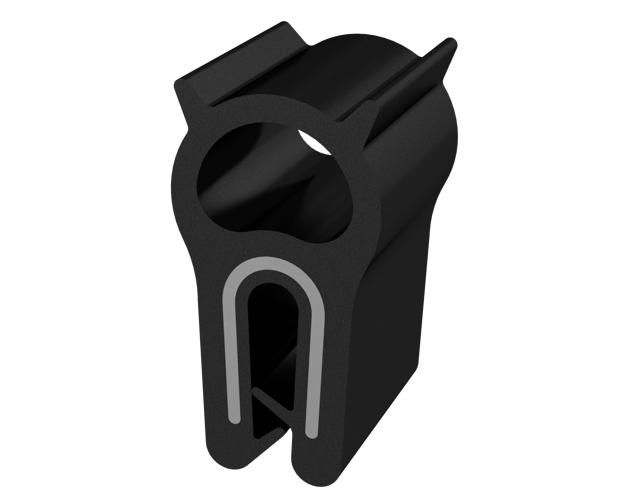

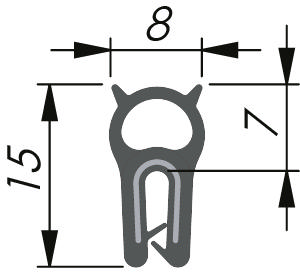

    Sealing Profile EPDM

    Index Code 4-110

    Self-gripping sealing profile with a EPDM rubber carrier and a sealing tube from EPDM sponge rubber. Integrated steel wire core.

    Bending radius values are approximations and we recommend that the profile is tested in your application in order to be secure.

    Download PDFCustom sealing profiles
    Download PDFMaterial specifications
    Download PDFSteel and wire carrier in sealing profiles
    Download PDFProtective EMI/RFI-film for Sealing Profiles
    CarrierEPDM - solid rubber
    Sealing tubeEPDM - sponge rubber
    StandardsUL50, UL50E, UL94HB
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Core type Clamping range* Standards Bending radius in mm Coil size
    		427021 Wire carrier 0,5 - 1,5 mm UL50, UL50 E, UL94HB A=50, B=80, C=25, D=25 4 x 50 m
    Clamping Range Info Text
