Vector P Actuator

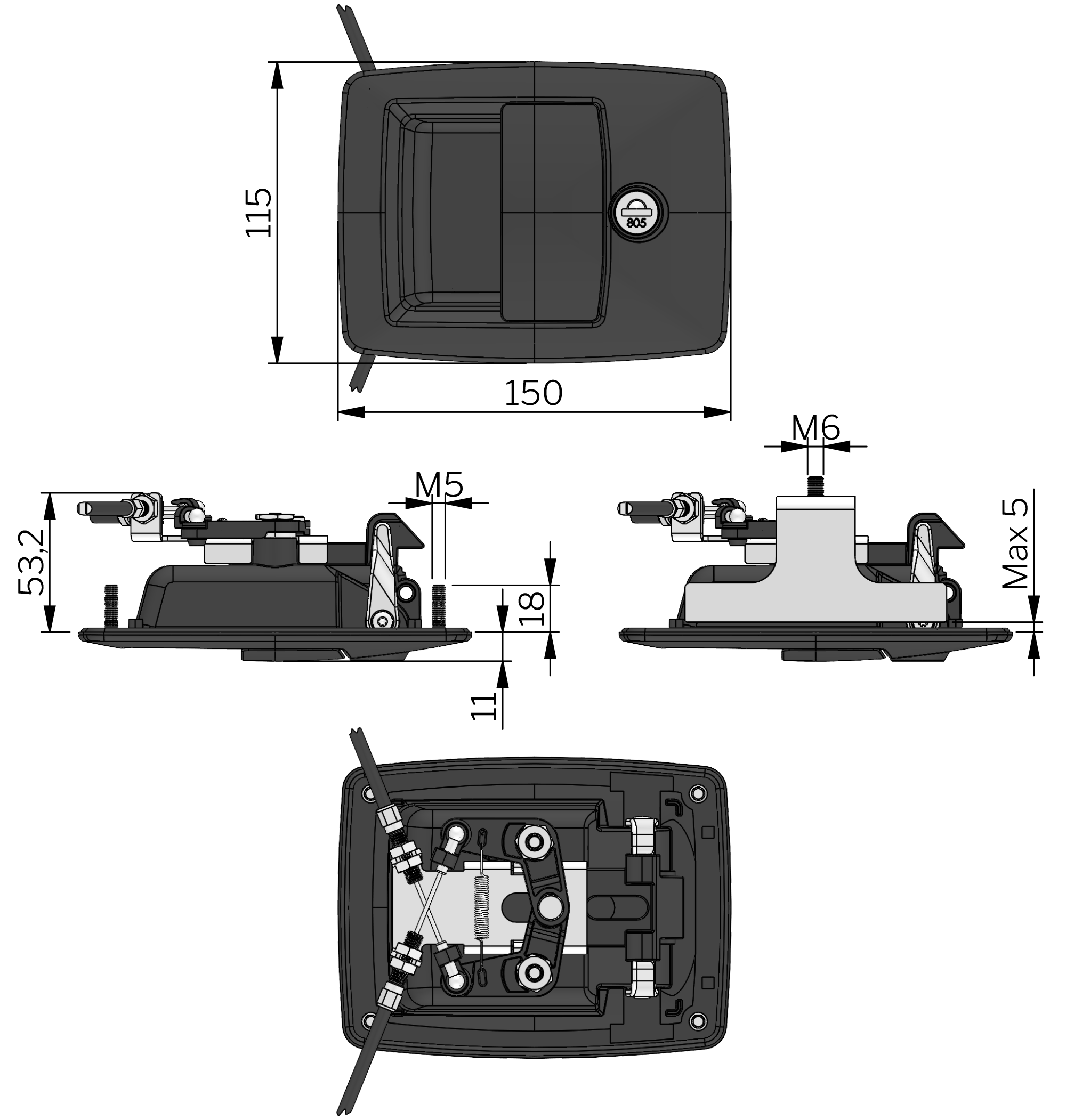

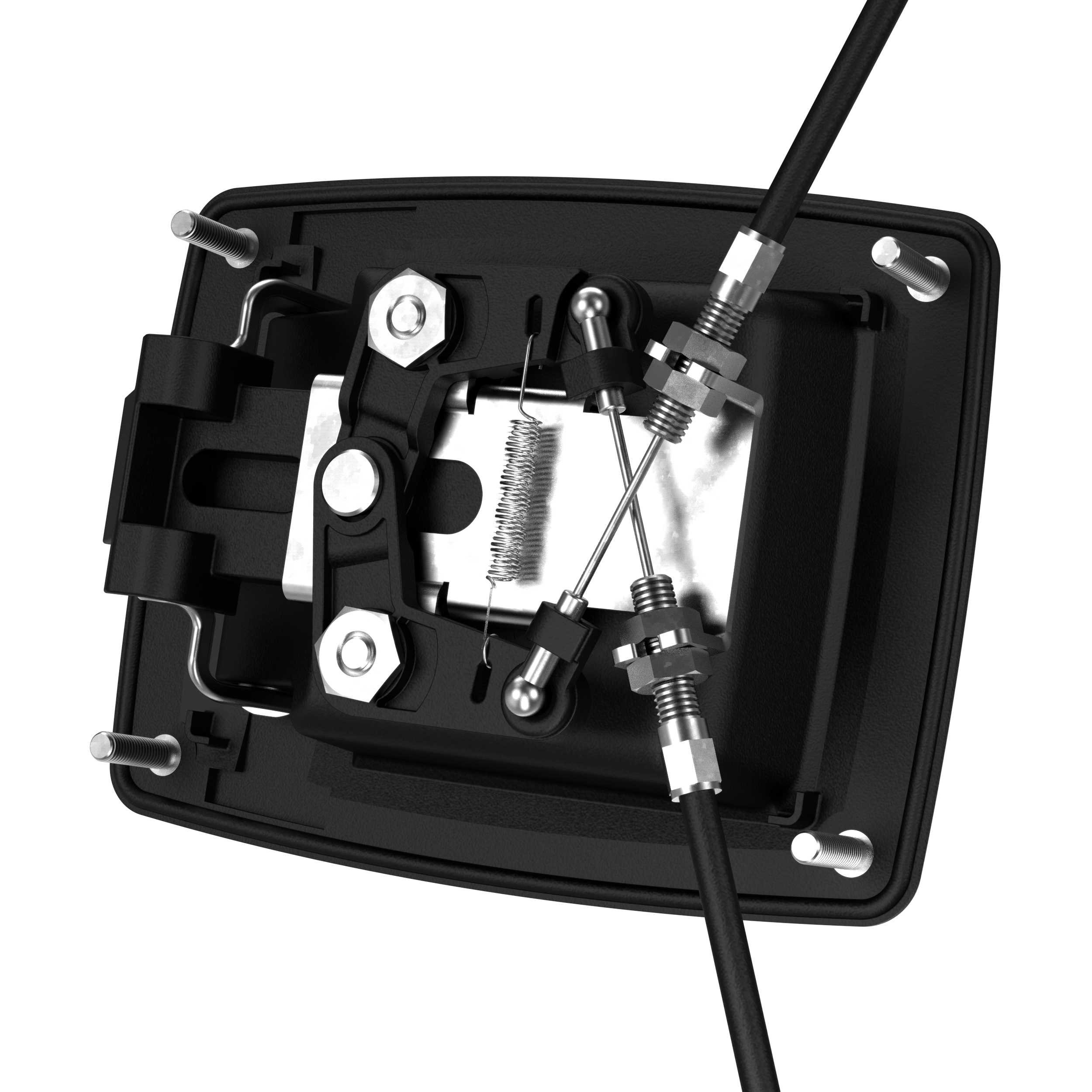

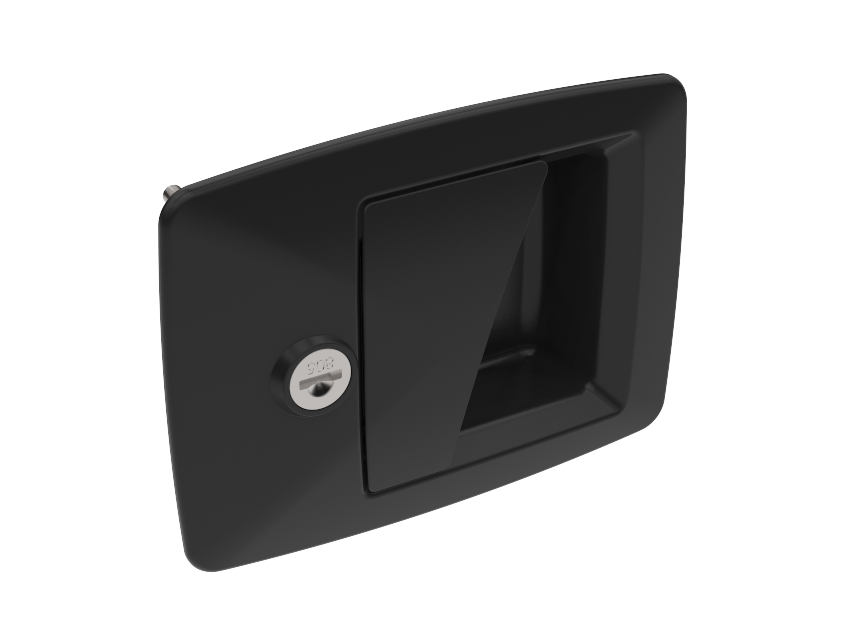

Index Code:Vector P actuator is a patented heavy-duty, vibration-resistant handle that has been designed for on- and off-road vehicles. The Vector P actuator handle is used to maneuver one or two Vector rotary latches, or Vector Latch points connected with Vector cables between Actuator handle and latch point(s).
It is available with left, right or universal grip handle and is installed with a mounting bracket or four moulded-in M5 bolts. IP66 water- and dust sealing.

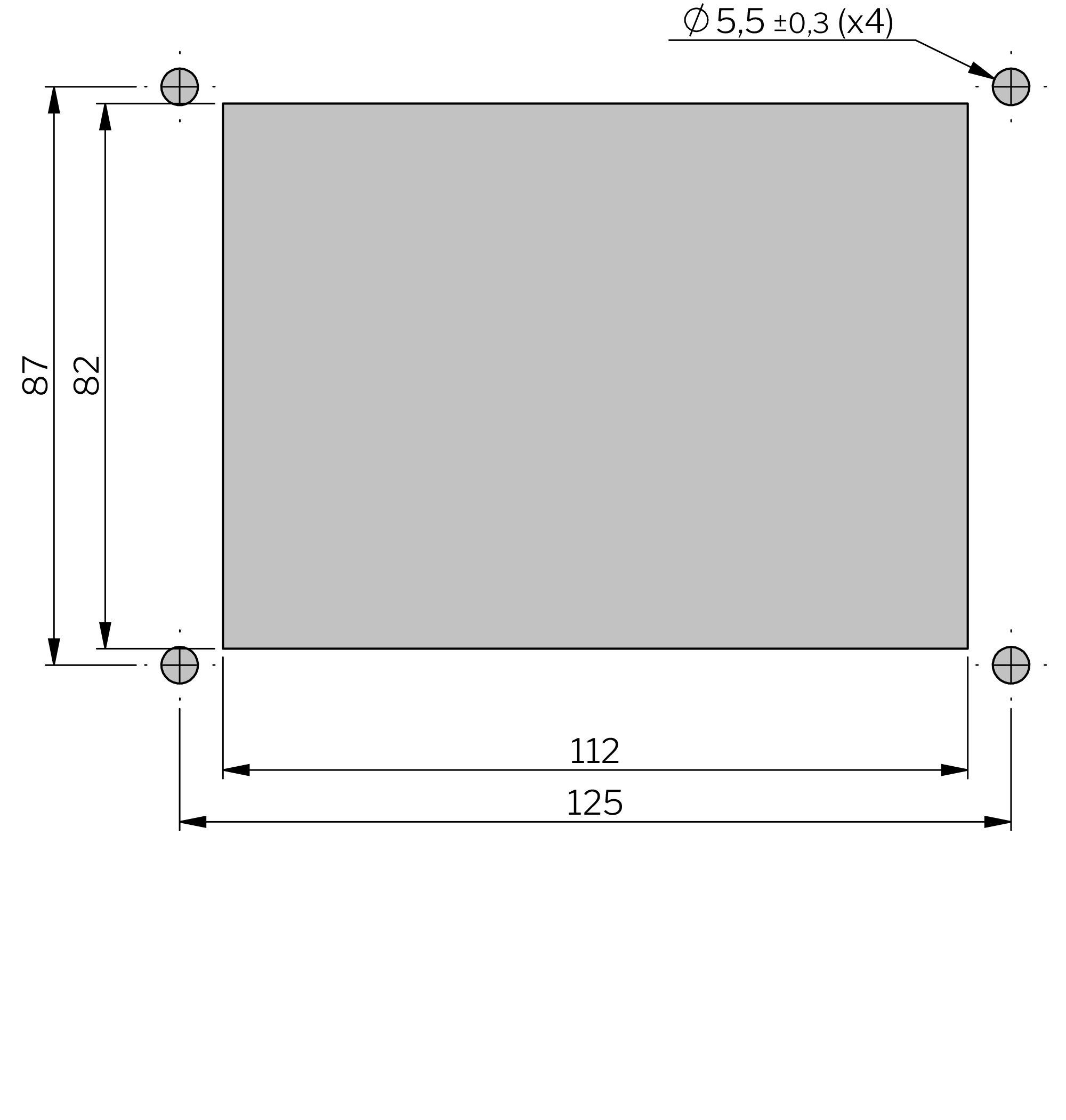

| Download PDF | Product Data Sheet |
| Adapter for cylinder (internal component) | Glass fibre reinforced polyamide (PA6GF30) |
|---|---|
| Body | Glass fibre reinforced polyamide (PA6GF30) |
| Bracket | Steel, zinc plated |
| Cast-in bolts | Steel, zinc plated |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Gaskets | Polyurethane |
| Manoeuver arms | Zinc die cast, zinc plated |
| Mounting bracket | Steel, zinc plated |
| Nut | Steel, zinc plated |
| Notes | The tightening torque of the two nuts for the mounting bracket is 3,0 Nm. The tightening torque of the four nuts for the mould-in bolts is 2,2 Nm. It is important that the four holes made in the cut out for the mould-in bolts are within tolerance, to avoid damage when tightening the M5 nuts. |
|---|---|
| Classifications | IP66,DIN EN 61373 |
| Cylinder information | Lieferung erfolgt mit 2 Schlüsseln,Cylinder with other key codes on request |
|
|
|
|
|
|
|
