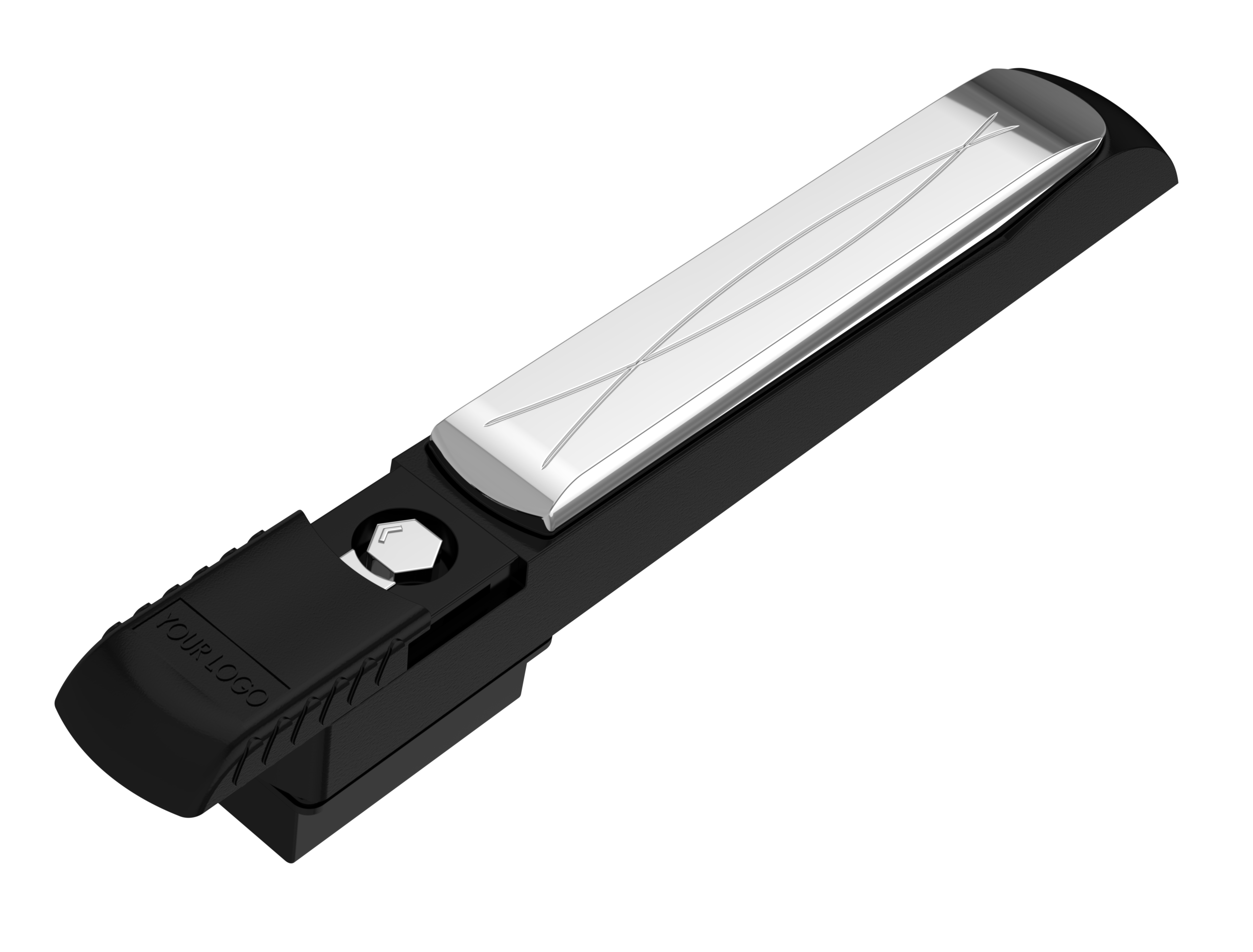

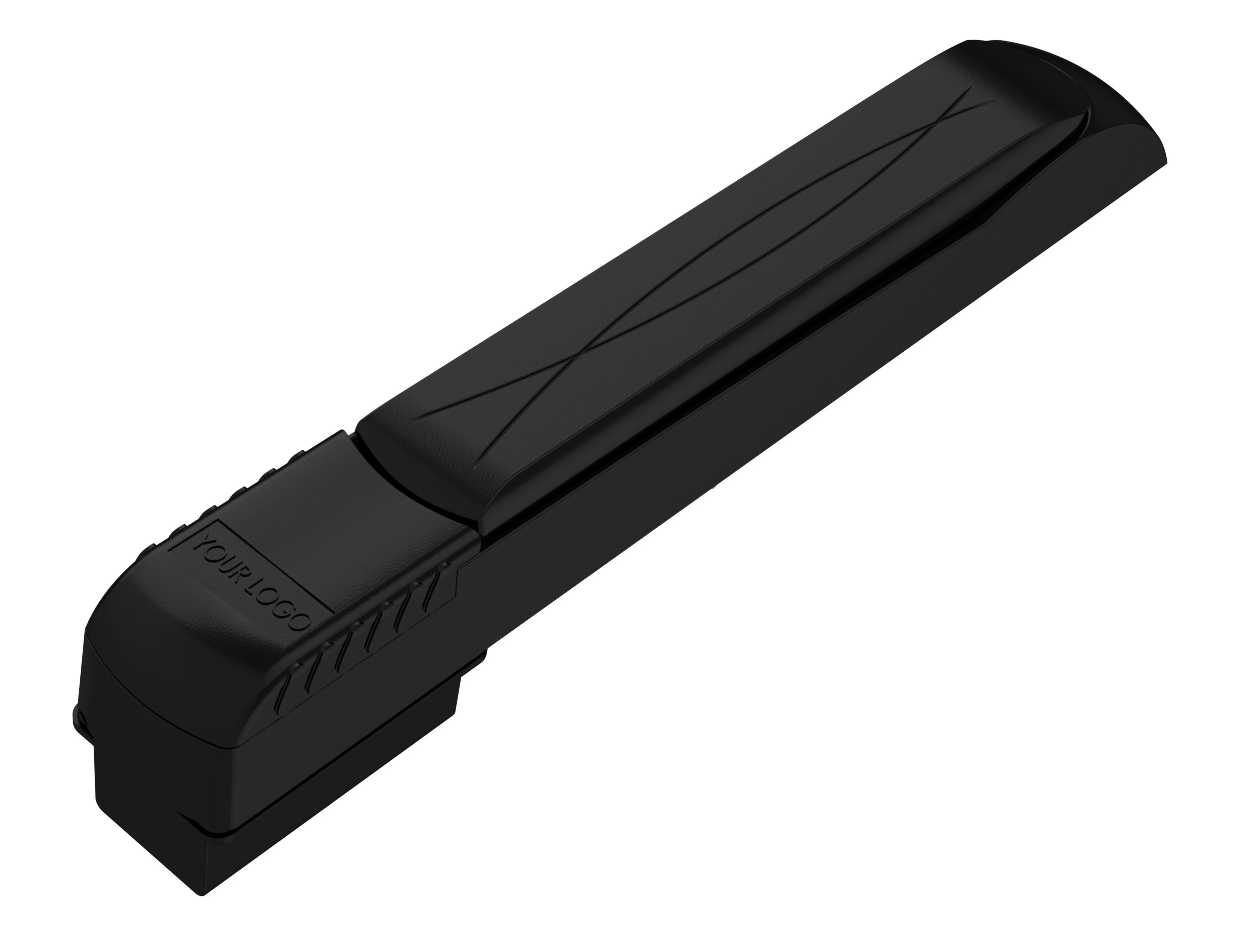

The patent pending Vision Lift Handle operates all Vision™ latching systems. The handle is available with a push button, a tool operated insert, a round cylinder keyed to differ or keyed alike or prepared for a 40 mm profile cylinder or oval cylinder.

The handle is spring loaded and pops out when it is unlocked or the push button is pressed. Since the locking mechanism is not a part of the actual handle, it is very comfortable to operate.

Cylinders and inserts are covered by a sliding dust cover. IP65 water proof according to NEMA 4.

Dish Glass fibre reinforced polyamide (PA6GF30)
Handle Zinc die cast, black powder coated
Insert Zinc die cast, chrome plated
Pivot shaft Zinc die cast, zinc plated
Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Notes

The lift handle fits into a cut out similar to Version C, but with an additional Ø 4,5 mm hole on top. Suitable for door thickness 0,8-3,5 mm. When viewed from the outside, the right hinged version has a pivot shaft that rotates counter-clockwise when opening.

The left hinged version rotates clock-wise when handle is opened.

Standards IP65,NEMA 4
A product number is created by combining the figures in each column (AAAA-BBCDEF-GG)
AAAA Type
1510 Flat rod system
1511 Cam and round rod system
BB Insert / Cylinder
01 Square 6
03 Square 7
05 Square 8
07 Square 8 / Slotted
11 Square 8 / Recessed
14 Triangle 7
15 Triangle 8
16 Triangle 10
22 Double Bit 3
24 Double Bit 5
26 Slotted
29 Slotted, Recessed
32 Hexagon 11
34 Recessed Hexagon 8
35 Recessed Hexagon 10
36 Recessed Hex 8 / 3 mm pin
80 Keyed to Differ
81 Keyed alike IL101
82 Keyed alike IL0333
83 For Profile Cylinder
84 For Oval Cylinder
90 Push button
C Surface Treatment Insert
0 For cylinder and push-button versions
2 Chrome Plated
6 Black powder coated
D Protection degree
5 IP65
E Surface treatment Handle
6 Black powder coated
9 Silver powder coated
F Model
0 For right hinged door
1 For left hinged door
GG
00
