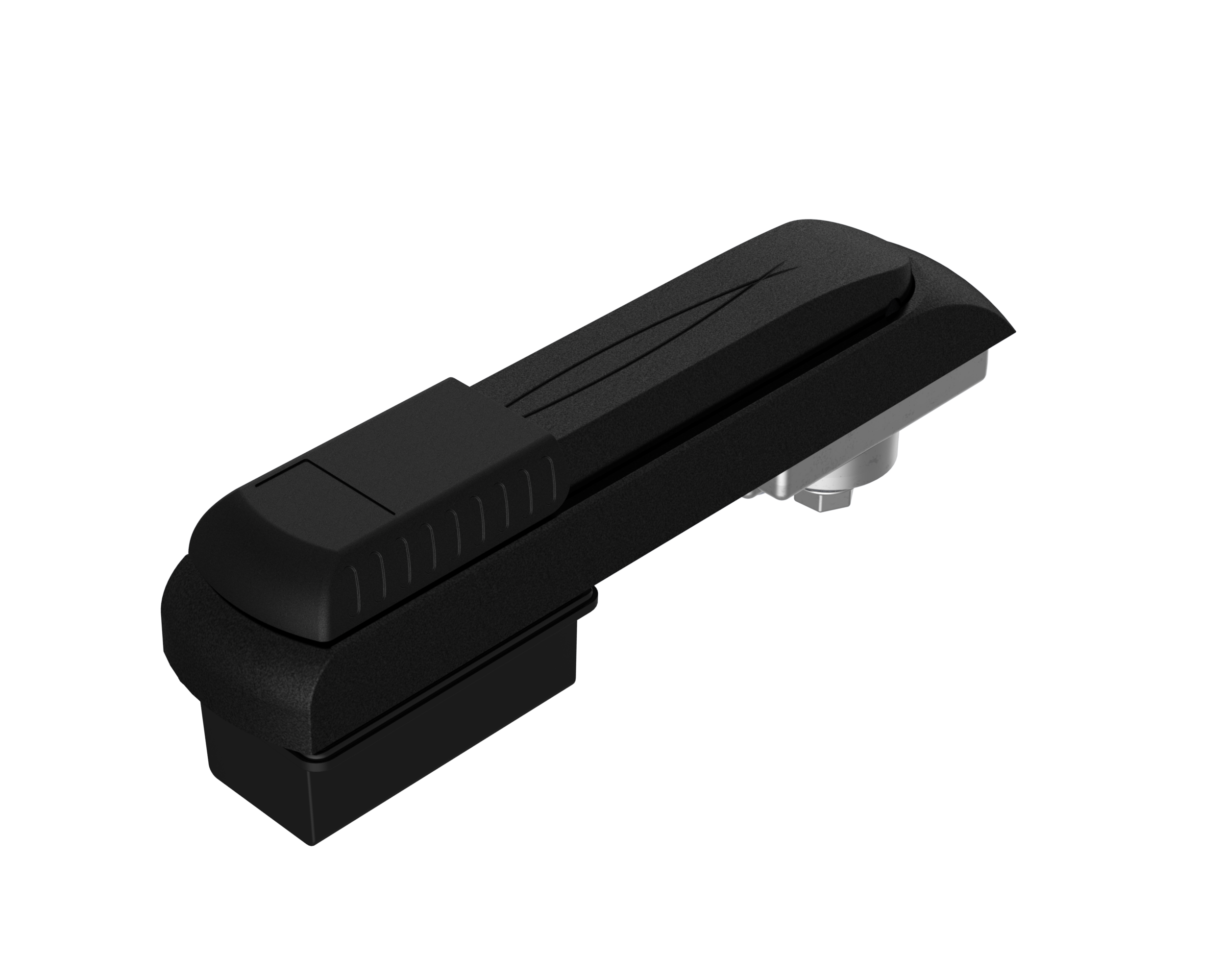

Vision Swing Handle RC2 for profile cylinder
Index Code:1-004.14
Low profile swing handle used for Vision classic latching systems, traditional cams and round rods. Approved according to the anti-vandal classification RC2. Optional saw protection available for protection beyond RC2 requirements.

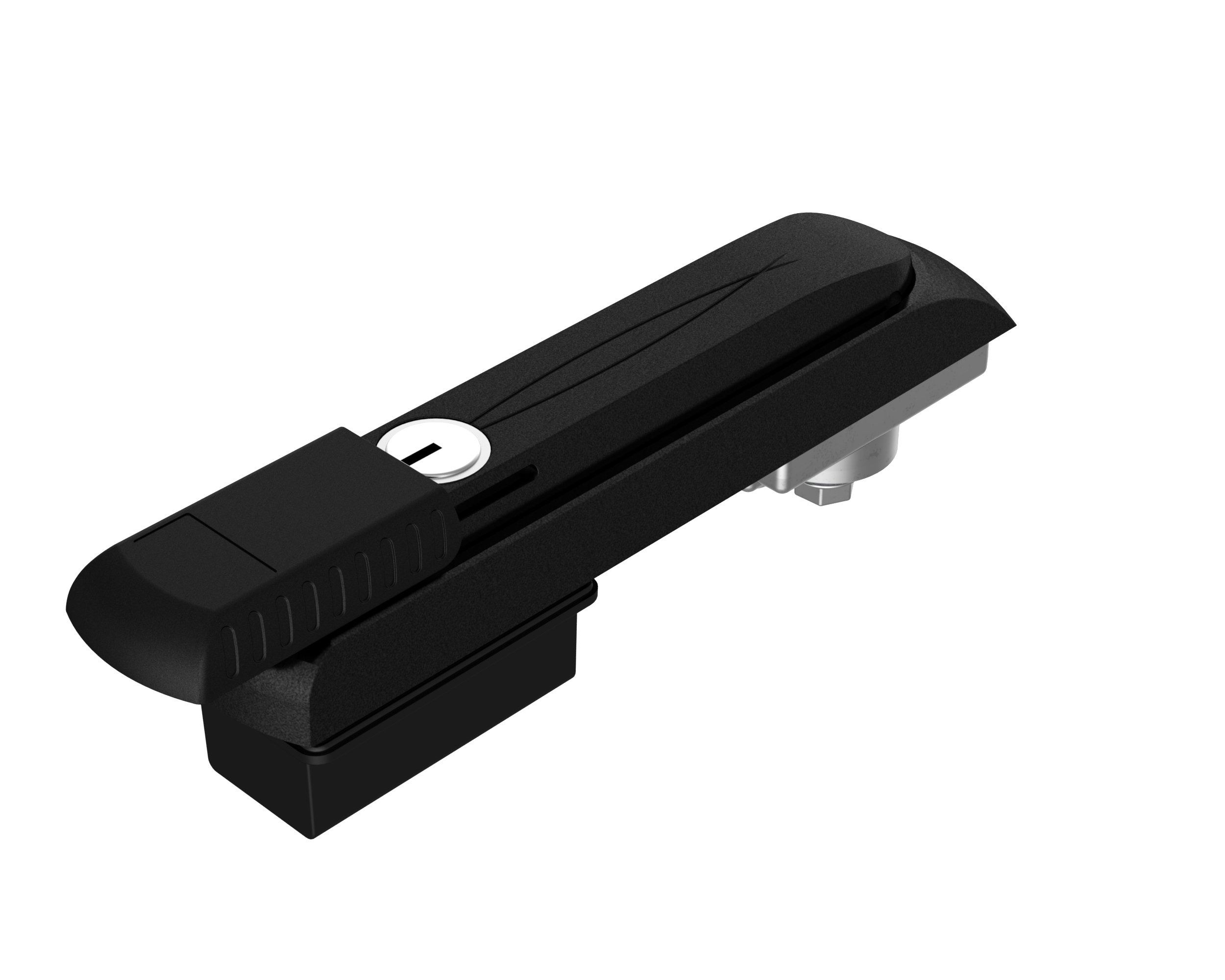

It is used with a 40 mm profile cylinder (ordered separately). Equipped with sliding dust cover and sealed to IP66.
| Download PDF | Product Data Sheet |
| Dish | Zinc die cast, black coated |
|---|---|
| Handle | Zinc die cast, black coated |
| Pivot shaft | Stainless steel 316 |
| Dust cover | Glass fibre reinforced polyamide (PA6GF30) |
| O-ring | NBR |
| Specifications | Standard cams with negative bending are not possible to use with this swing handle (negative bended cam will interfere with escutcheon plate). |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAA-BBCCDE-FF)
|
|
|
|
|
|
