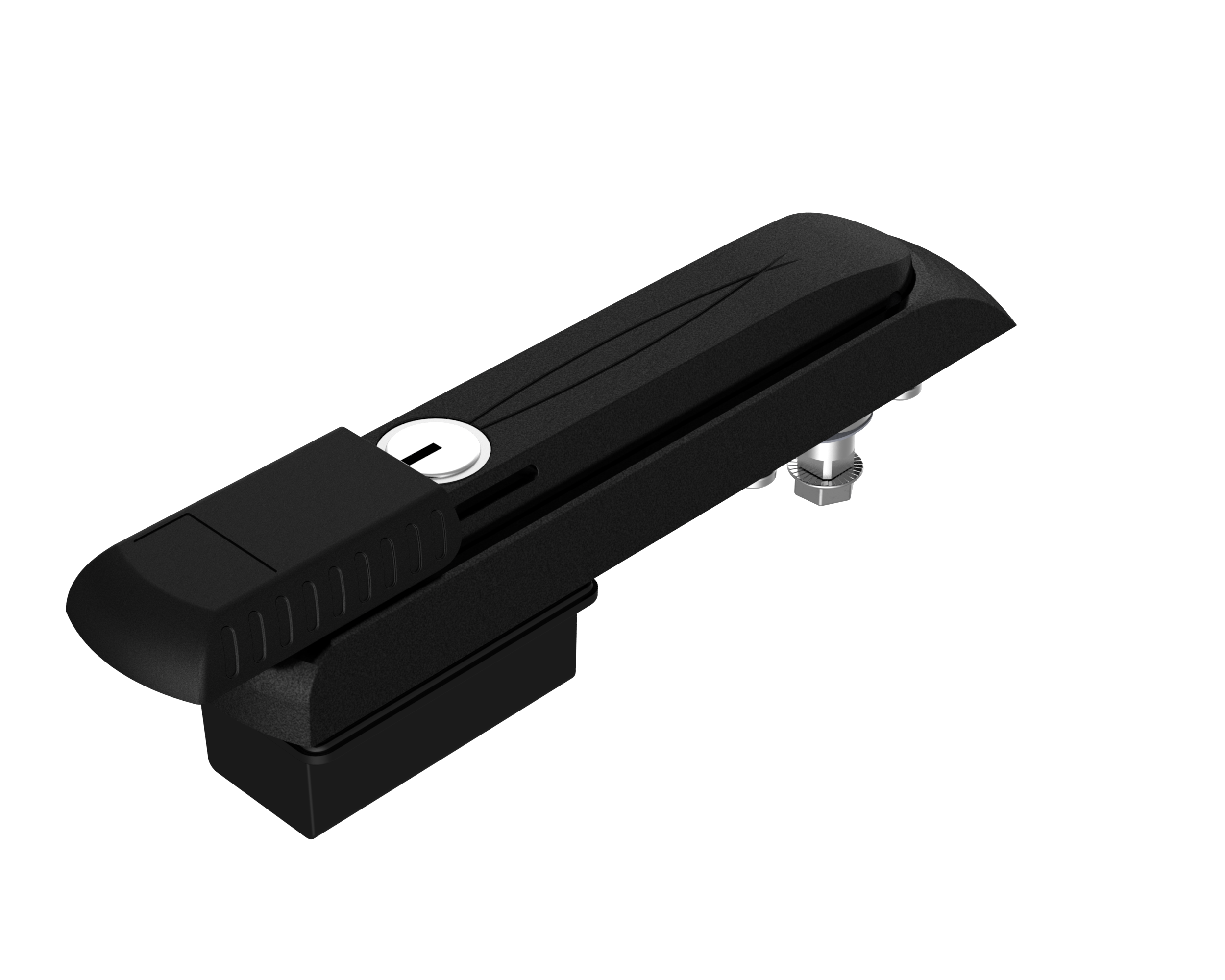

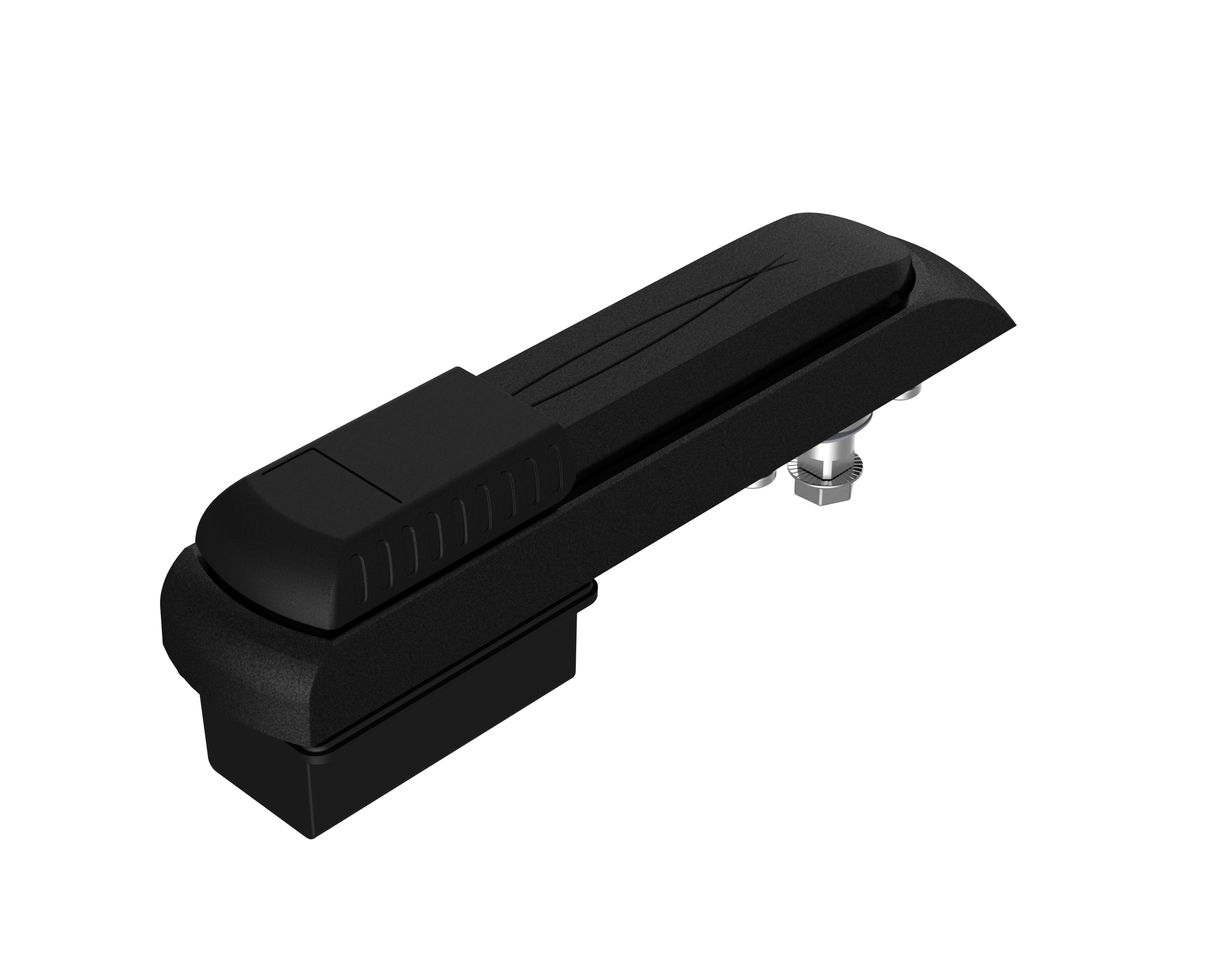

Vision Swing Handle RC2
Index Code:1-004.04
Low profile swing handle used for latching systems with a control mechanism and flat rods. Approved according to the anti-vandal classification RC2. Optional saw protection available for protection beyond RC2 requirements.
It is used with a 40 mm profile cylinder (ordered separately). Equipped with sliding dust cover and sealed IP66.
| Baixar pdf | Product Data Sheet |
| Dish | Zinc die cast, black coated |
|---|---|
| Maçaneta | Zinc die cast, black coated |
| Pivot shaft | Aço inox 316 |
| Cobertura contra poeira | Glass fibre reinforced polyamide (PA6GF30) |
| O-ring | NBR |
| (AAAA)(Type) | (1540)(Handle for control mechanism) |
|---|---|
| (BB)(Insert / Cylinder) | (83)(For Profile Cylinder) |
| (CC)(Material / Surface treatment) | (16)(Zinc die cast, black texture powder coated),(26)(Zinc die cast, black texture powder coated, Highlander) |
| (D)(Protection degree) | (5)(IP66) |
| (E)(Door Thickness) | (1)(0,8 - 1,5 mm),(2)(1,6 - 2,5 mm),(3)(2,6 - 3,5 mm) |
| (FF)(Burglar protection) | (01)(RC2),(02)(RC2 + saw protection) |
