Vector 3 Central Locking T-handle

Index Code:
2-811

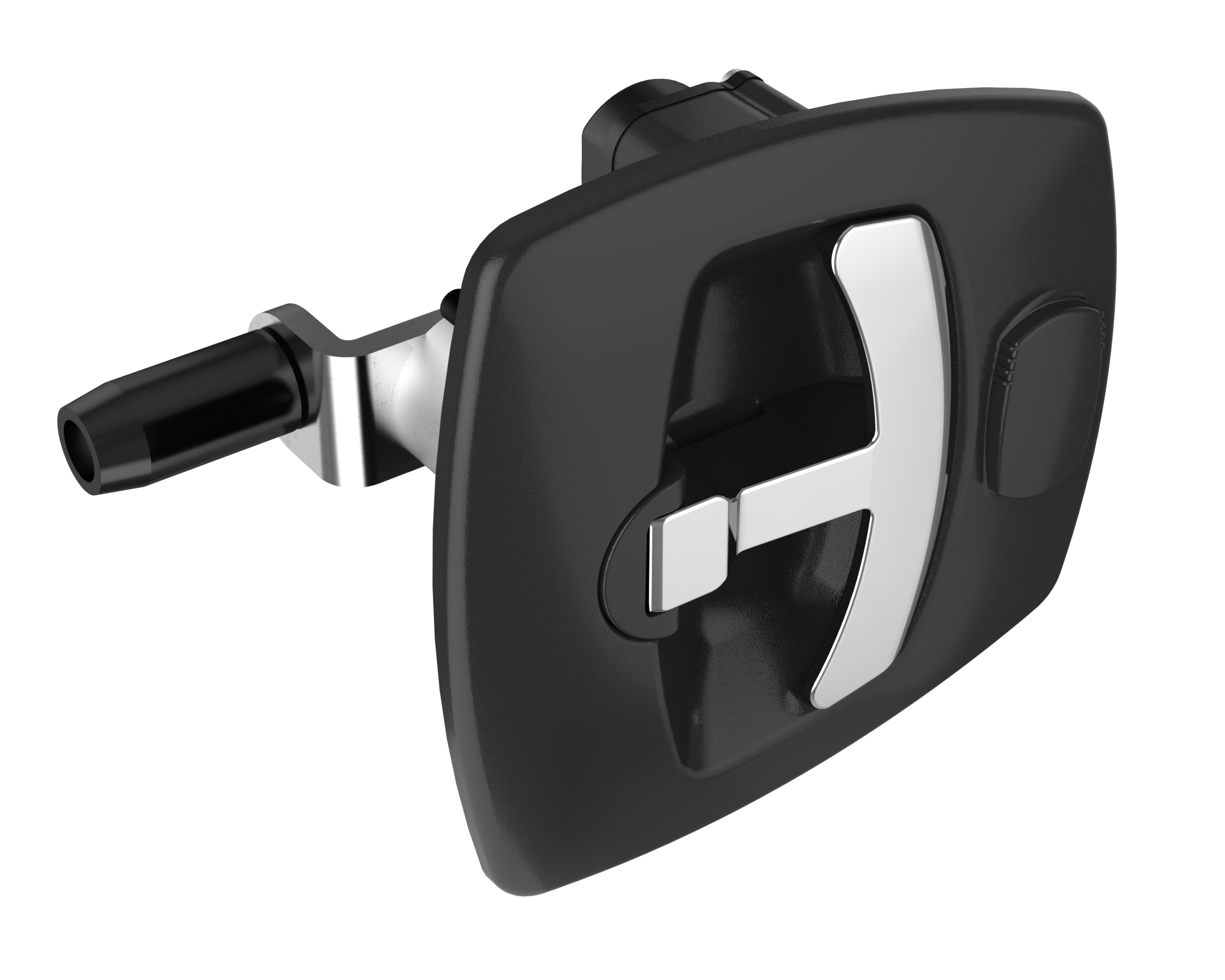

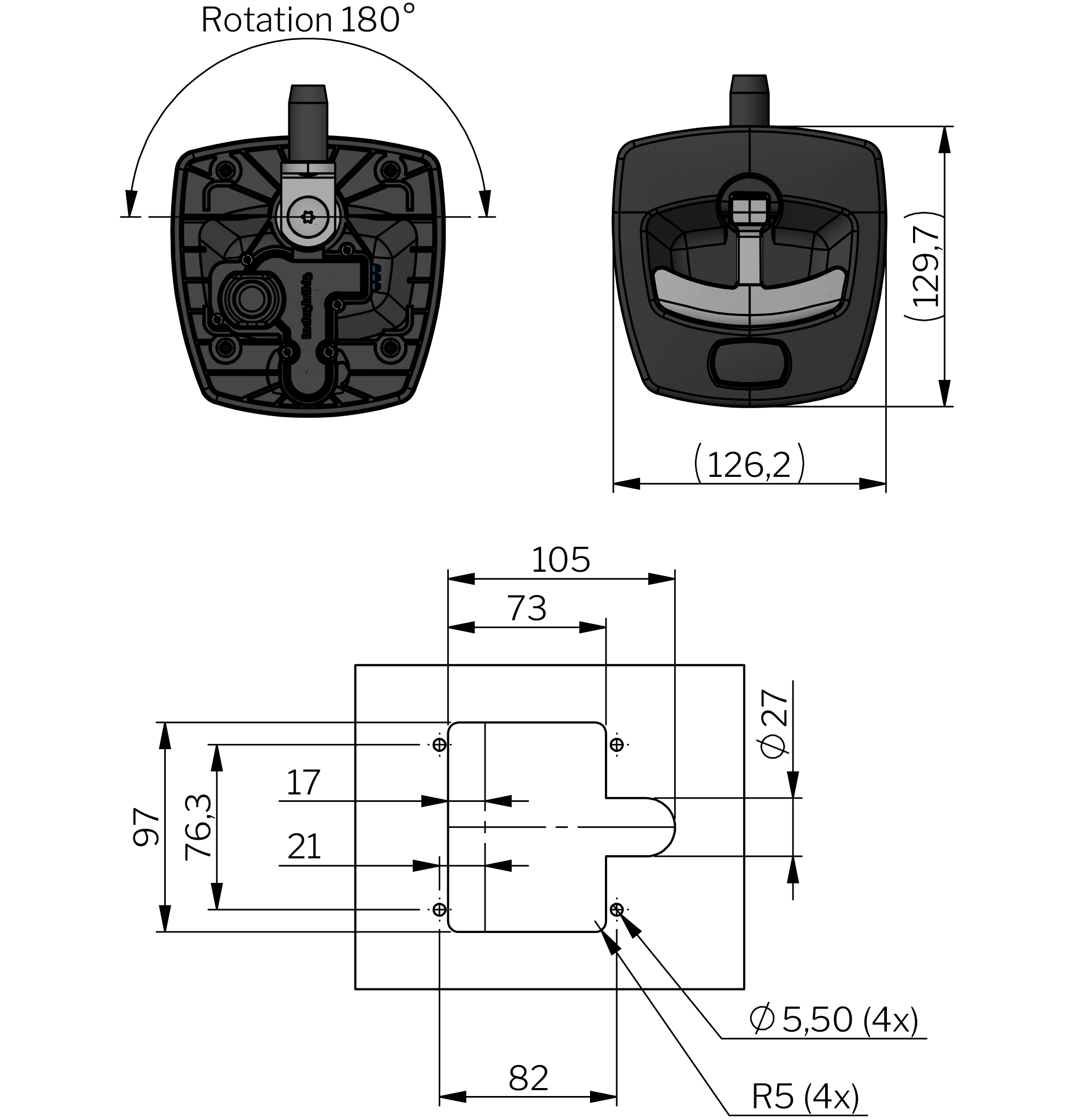

Vector 3 T-handle for central locking vehicle applications. The unlock and lock signal is sent from the vehicle’s system. Available in versions with feedback if the T-bar handle is open or closed and if the handle is unlocked or locked.

The handle creates 4 mm compression and is sealed to IP65 for water and dust. Four blind-mount studs ensure waterproof assembly. In case of power failure, the latch is equipped with a mechanical override cylinder.

Available for 12- and 24-volt systems and with fixed or adjustable roller cams, as well as 1-,  2- and 3-point latching options.

Download PDF
Product Data Sheet
Download PDF
Technical Information T3 Central Locking Handle-01.pdf
Adjustable camZinc die cast, passivated
BodyGlass fibre reinforced polyamide (PA6GF30)
Cast-in boltsSteel, black passivated
CylinderZinc die cast, stainless steel 304 cap and dust shutter
Dust cover, blackGlass fibre reinforced polyamide (PA6GF30)
HandleStainless steel 304, polished or zinc die cast, black texture powder coated
RollerGlass fibre reinforced polyamide (PA6GF30)
Rotating locking deviceStainless steel 303
ShaftSteel, zinc plated or stainless steel 303
Additional

Electronic interface

Power requirements 12VDC/2A or 24VDC/2A, lock/unlock by reverse polarity (impulse length 0,3-1,0 s).

Optional sensor output

Sensor 1 Handle unlocked – open circuit, handle locked – closed circuit (max 30VDC/500mA).

Sensor 2 Handle open – open circuit, handle closed – closed circuit (max 30VDC/500mA, total max 10W).

Opening rotation

Two- and three-point cams combined with adapter cannot be used with handles with clockwise or 180º rotation.

Using two- and three-point cams without adapter works with all opening rotations.

Protection internal electronics

The internal enclosure for the electronics inside the Vector T3 meets IP44 (tested with cable entry facing downwards).

Maximum tightening torque 2,2 Nm.

ClassificationsIP65,DIN EN 61373
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
Make your selections in each column to create your article number (AAAA-BCCDDEFG-HH)
AAAA Type
2752Vector 3
B Type
2Central locking 12 V
3Central locking 24 V
CC Cylinder
02Keyed to differ
06Keyed alike 751
68Keyed alike 805
69Keyed alike 810
70Keyed alike 815
71Keyed alike 820
72Keyed alike 825
73Keyed alike 830
74Keyed alike 835
75Keyed alike 840
76Keyed alike 845
77Keyed alike 850
80Keyed alike 455
DD Material handle / shaft Handle
23Zinc / SteelChrome
26Zinc / SteelBlack
36SS304 / SS303Black
39SS304 / SS303Polished
E Feedback signal
0No signal
1Open / closed + unlocked / locked
F Dust cover
1Yes
G Opening rotation
0180°
190° clockwise
290° counter clockwise

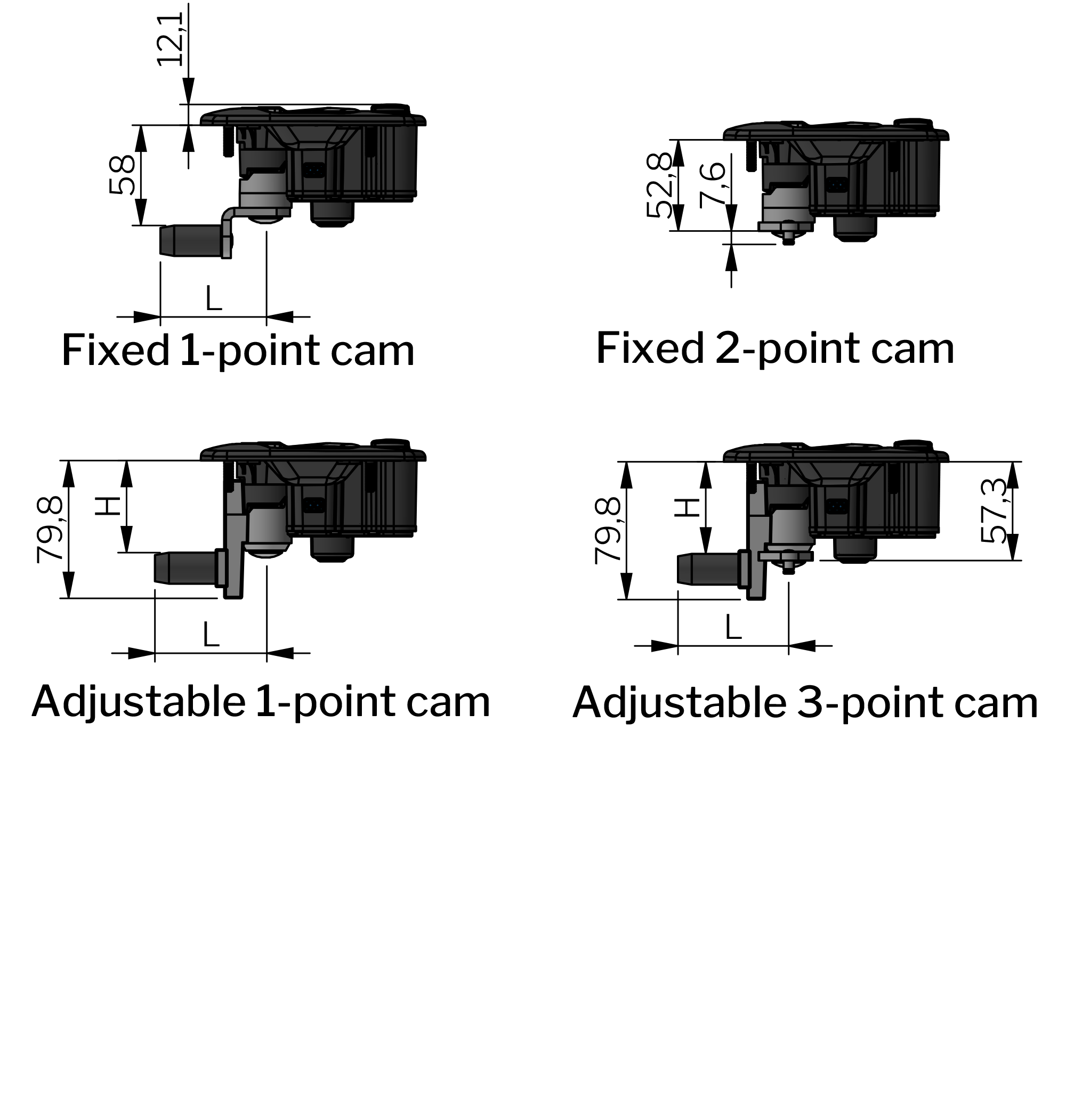

HH Cam H= L=
01Fixed roller cam5861
02Two-point cam--
03Fixed three-point roller cam6685
04Adjustable three-point roller cam10-6160
05Adjustable single point roller cam10-6161
