Vision Schwenkhebel für Oval-Zylinder

Index Code:
1-010

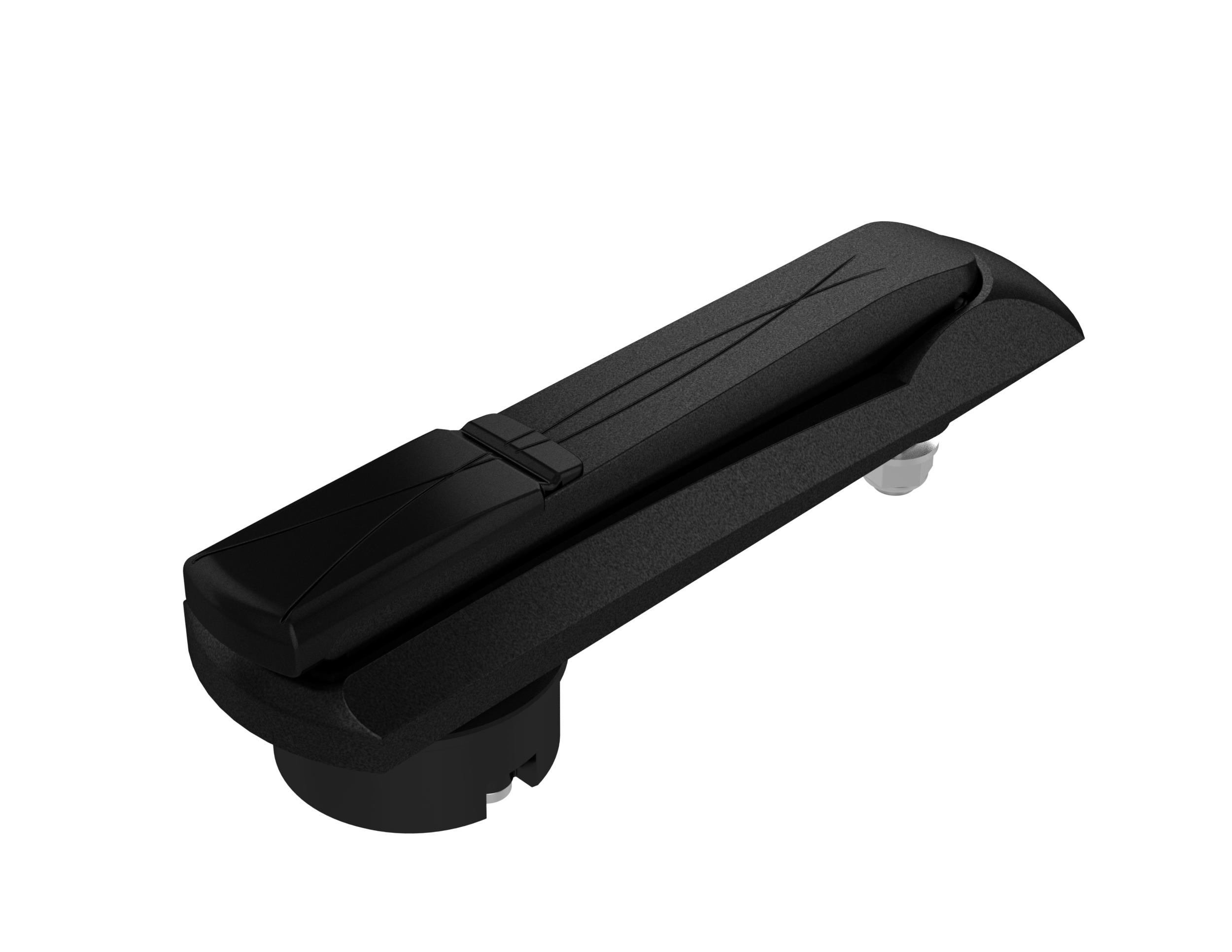

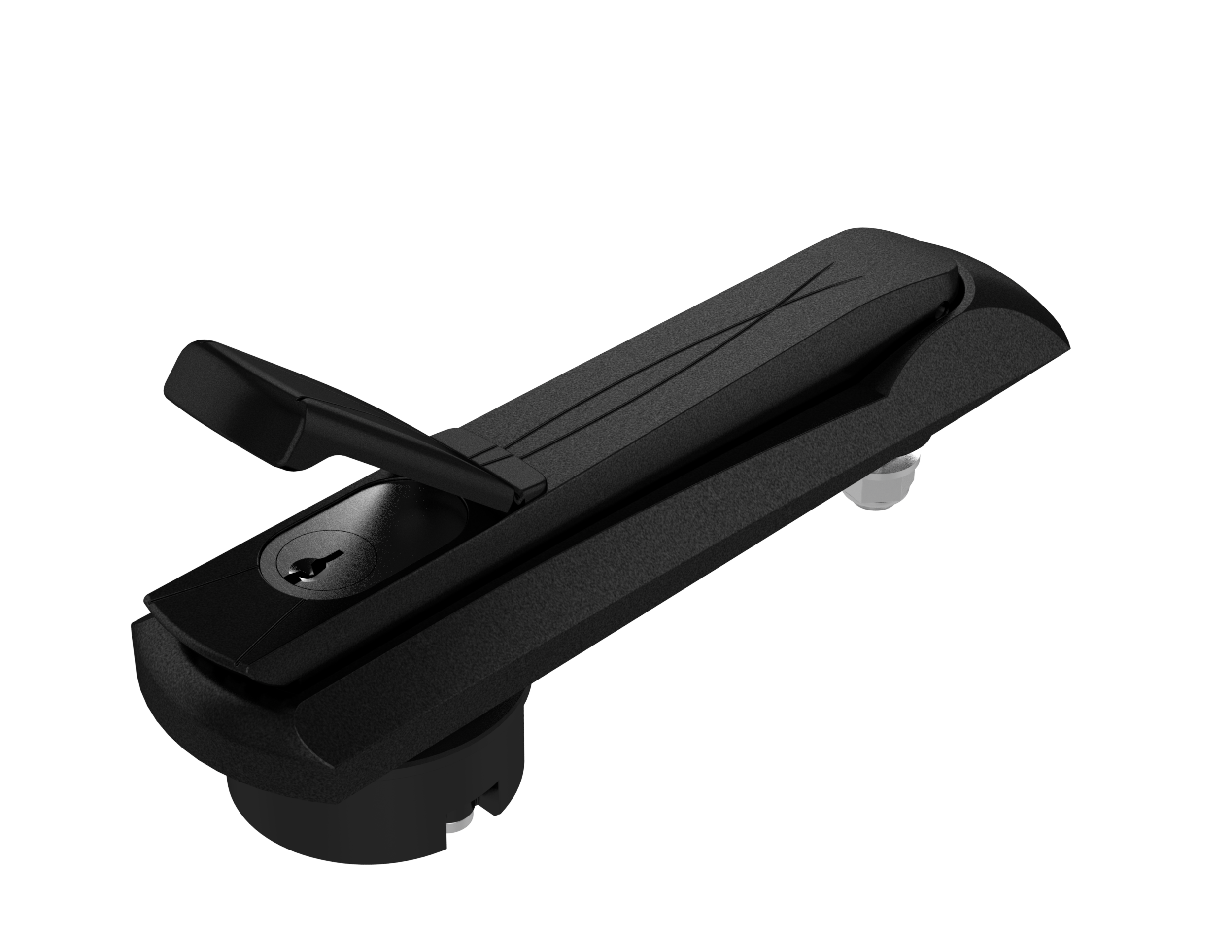

Schwenkhebel für skandinavischen Oval-Zylinder und Zunge. Hebel mit weicher Abdeckung zum Schutz des Zylinders vor Staub und Regen. Zylinder separat erhältlich.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
BoltSteel, zinc plated
DishGlass fibre reinforced polyamide (PA6GF30)
Dust coverTPE
HandleGlass fibre reinforced polyamide (PA6GF30)
Pivot shaftBrass, zinc plated
ScrewSteel, zinc plated
WasherSteel, zinc plated

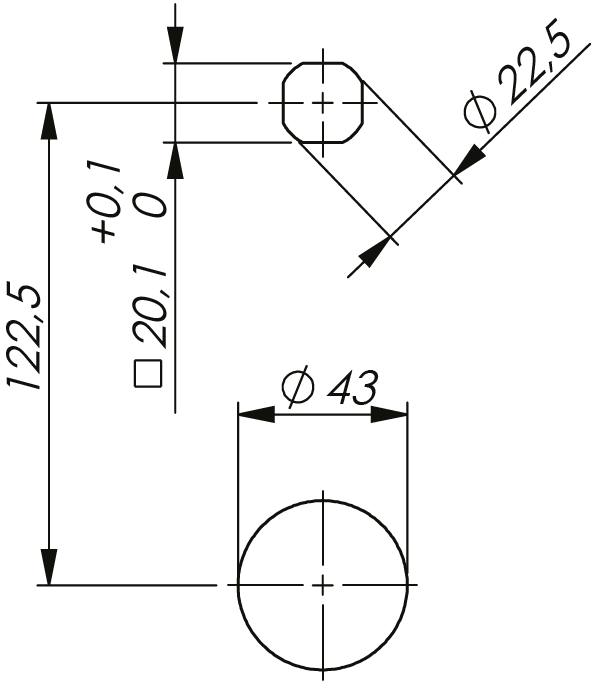

A and L on the drawing refer to measurements on cams (Product ID 1-008.50).
" data-field-type="editor" data-typid="14" data-categoryname="">Notes
A and L on the drawing refer to measurements on cams (Product ID 1-008.50).
ClassificationsIP65
