    Inserts for Compact Quarter-turn

    Index Code 2-111

    Inserts for vibration-resistant compact quarter-turn latch with internal limitation of the rotation. Universal clockwise or counter-clockwise rotation when opening or closing. Protection degree IP65 is achieved by an O-ring on the insert and a flat gasket on the housing.

    Download PDFRecommended Tightening Torque
    InsertZinc die cast, chrome plated or black texture powder coated
    Choose CAD format here: INFO_TEXT
    Download here:

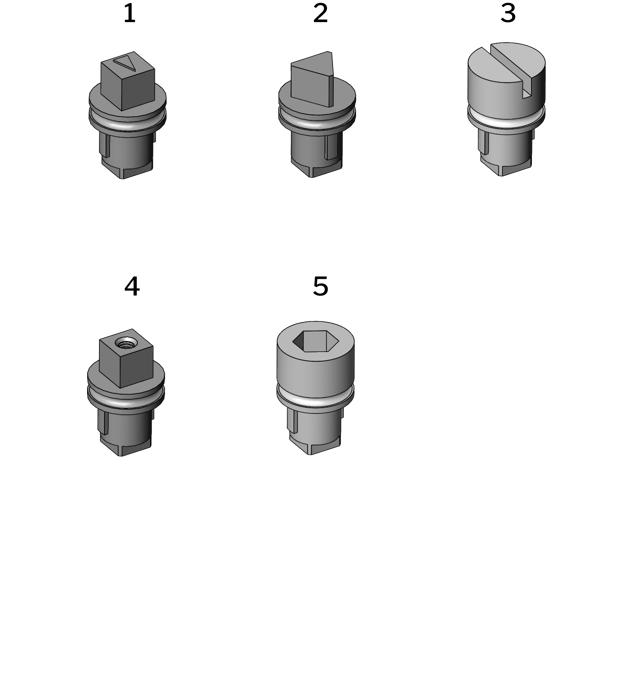

    CAD* P/N Description (OLD) Surface treatment
    		221378 Square 6 Chrome

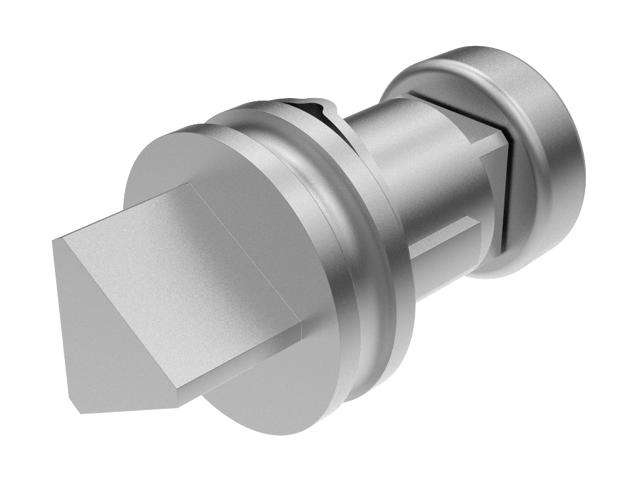

    		221379 Triangle 6,5 Chrome

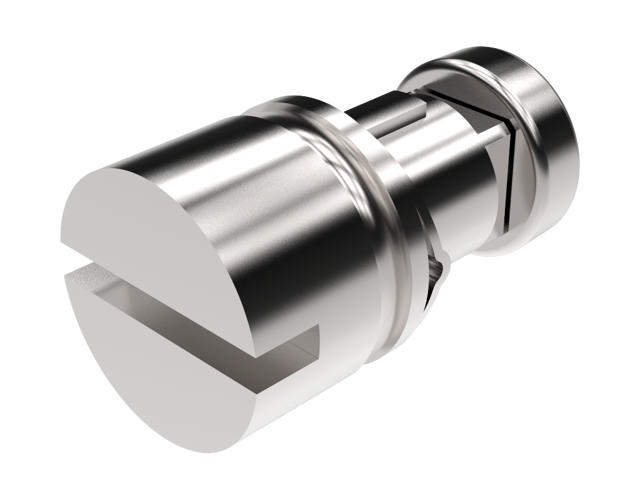

    		221380 Slotted Chrome
    		221381 Square 6 / M3 Chrome
    		221383 Recessed hexagon 6 Chrome
    		221678 Square 6 Black
    		221679 Triangle 6,5 Black
    		221680 Slotted Black
    		221681 Square 6 / M3 Black
    		221683 Recessed hexagon 6 Black
