    Inspection Window Circular

    Index Code 5-255
    Classified according to VDI 6022 Equipped with integrated PUR-gasket (a.k.a

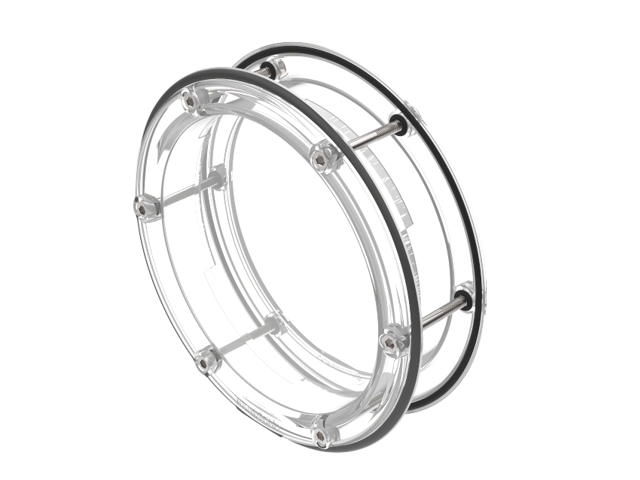

    Circular inspection window in transparent, impact-resistant polycarbonate. Intended for HVAC-applications using insulated or double-skinned doors. The window is equipped with an integrated gasket and is suitable for units with positive or negative pressure. The window is delivered in two halves that are assembled in the door with a ø 182 mm hole. Simple mounting by using the included bolts and nuts.

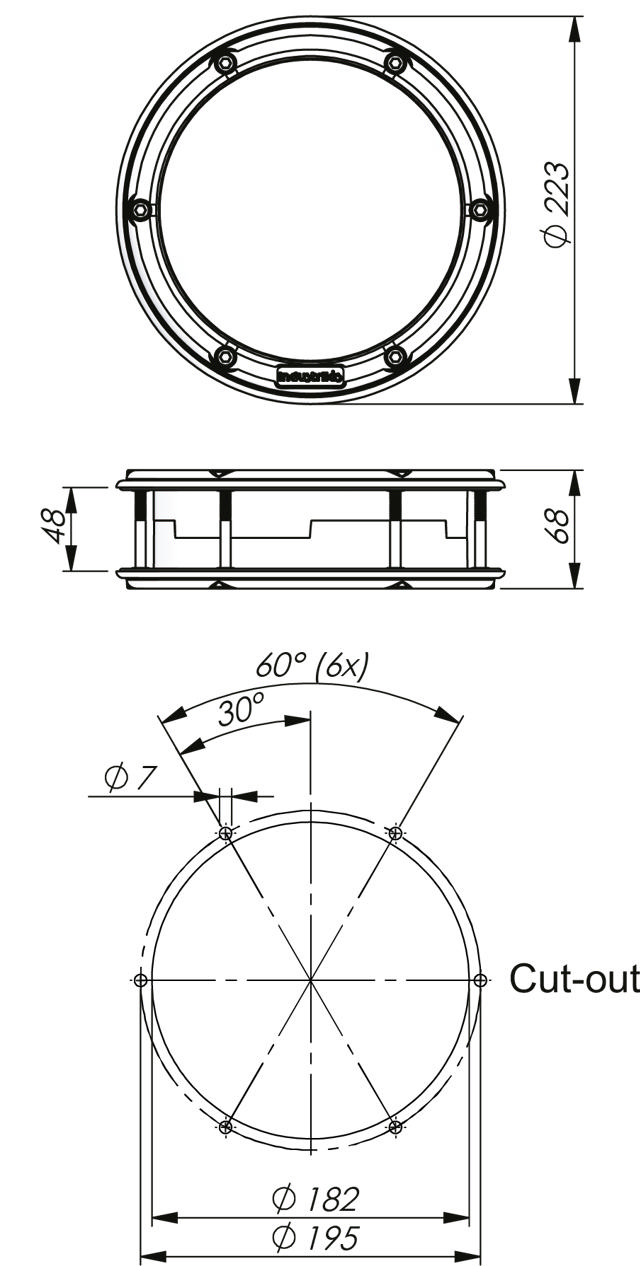

    Diameter for circular placement of mounting holes is 195 mm.

    Download PDFRecommended Tightening Torque
    NutStainless steel 304
    ScrewStainless steel 304
    WindowPolycarbonate/Macrolone 6557, crystal clear and impact resistant
    SealingFoamed PUR-gasket (polyurethane)
    StandardsVDI 6022
    Notes

    Customer logo may be included upon request. Door thickness tolerance: ± 2 mm.

    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD) Door thickness X in mm
    		506001-48 48 mm ± 2 mm 68 mm
