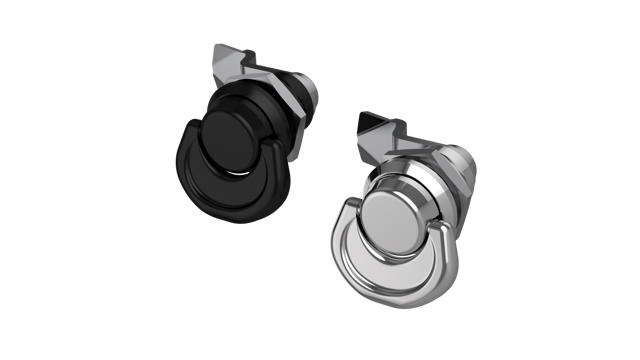

    Quarter-turn Compact Wing Knob 13,5 mm

    Index Code 2-112
    Classified according to IP65 Universally right or left mounted

    Vibration-resistant compact quarter-turn latch with foldable wing knob. Universal clockwise or counter-clockwise rotation when opening or closing.

    Protection degree IP65 is achieved with an O-ring on the insert and a gasket on the housing.

    Download PDFRecommended Tightening Torque
    Download PDFIndustrilas cut out versions
    HousingZinc die cast, chrome plated or black texture powder coated
    NutBrass, zinc plated
    WasherStainless steel 304
    Cam and screwSteel, zinc plated
    Wing knobZinc die cast, chrome plated or black texture powder coated

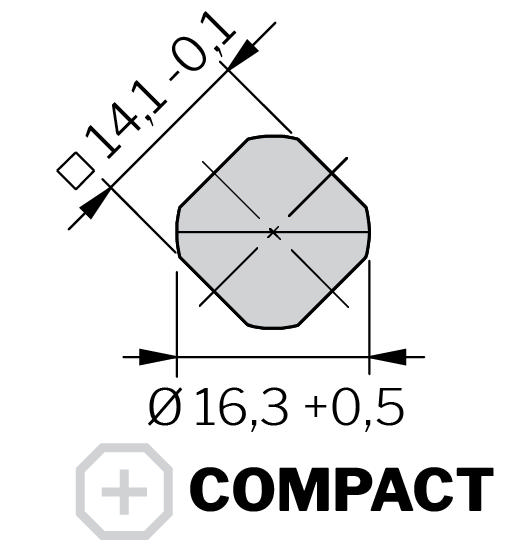

    Cut outCOMPACT
    StandardsIP65
    NotesEarthing nut can be ordered separately, see related products.

    Download your CAD-file

    Choose CAD format here:
    Download here:

    2-112
    AAAA-AAAA Description
    2452-0442 Chrome
    2456-0446 Black
    B Assembly
    2 IP54 - cam enclosed
    3 IP65 - cam enclosed
    4 IP54 - assembled
    5 IP65 - assembled
    C Cam
    0 Steel

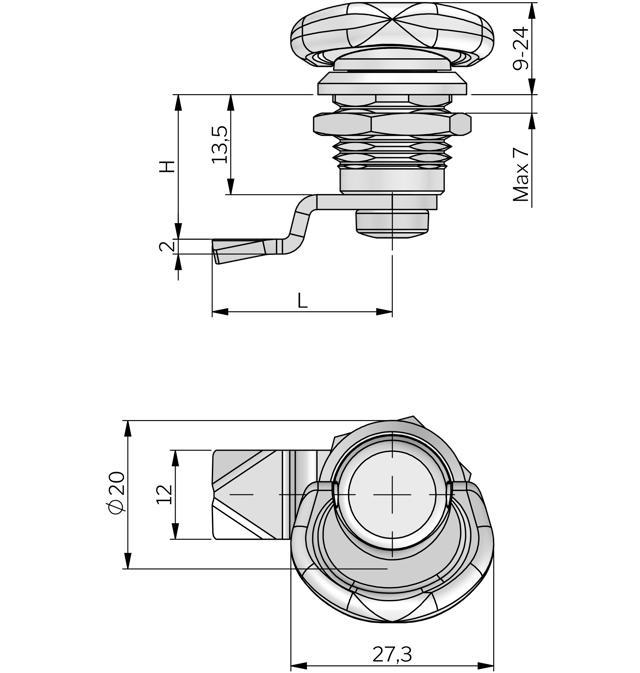

    HHLL H/L in mm
    0000 No cam
    0724 7,5 / 24
    0727 7,5 / 27
    0730 7,5 / 30
    0934 9 / 34
    1027 10,5 / 27
    1324 13,5 / 24 *
    1327 13,5 / 27 *
    1627 16,5 / 27
    1834 18 / 34
    1924 19,5 / 24
    1927 19,5 / 27
    2824 28 / 24

    * Straight cam.
