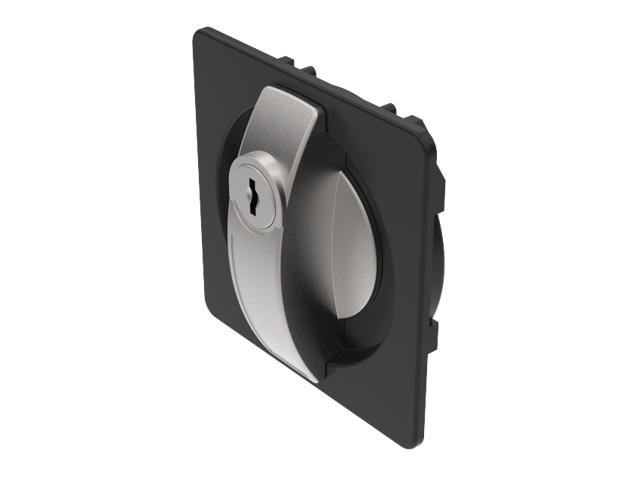

    Quarter-turn Square Latches

    Index Code 2-680
    Round cylinder Universally right or left mounted

    Square latch for clip-in mounting and rod latches with quick rod attachment. Cam rotation is 90° clockwise or counter-clockwise. Universal right and left mounting in a door thickness of 0,8 - 1,0 mm. The cylinder has 1000 key combinations.

    Download PDFRecommended Tightening Torque
    HousingGlass fibre reinforced Polyamide (PA6GF30)
    CylinderZinc die cast, stainless steel 304 cap and dust shutter
    CamSteel, zinc plated
    HandleZinc die cast, silver grey coated
    ClipSteel, zinc plated
    Cylinder informationSupplied with two keys
    Key extractionOpen / Closed
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD)
    		72350001-1 Keyed alike
    		72350001-2 Keyed to differ
