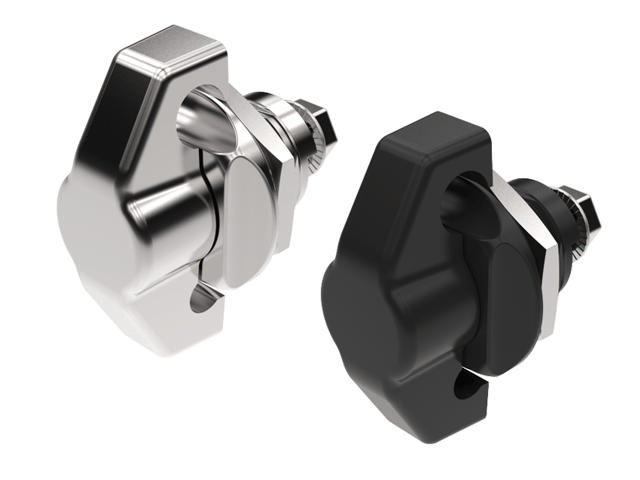

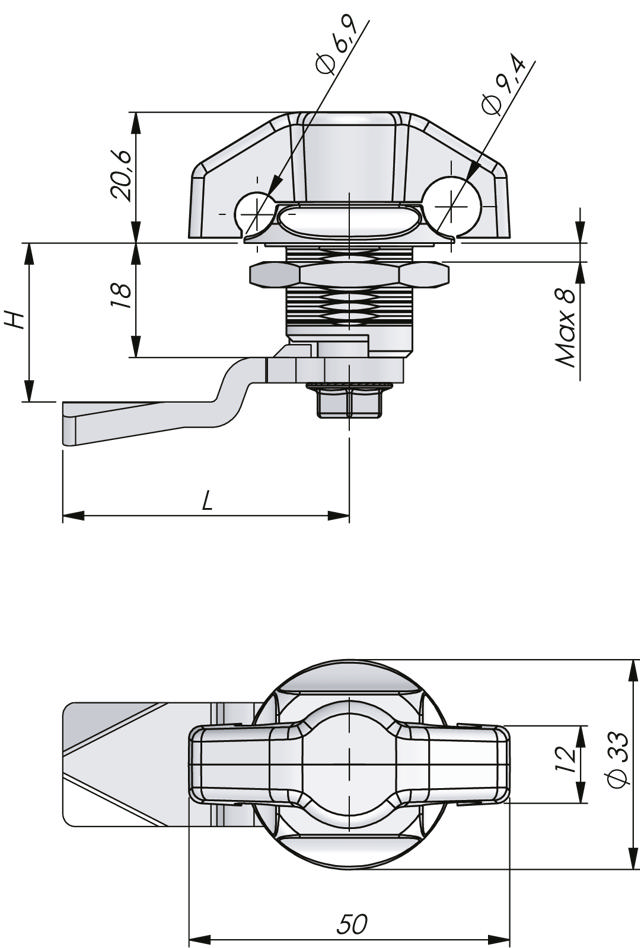

    Quarter-Turn Wing Knob 18 mm

    Index Code 2-260
    Padlock loop Classified according to IP65 Universally right or left mounted

    Padlockable quarter-turn wing knob with rotation of the knob that enables it to be blocked with a padlock. Universal clockwise or counter-clockwise rotation when opening or closing. Supplied with nut. Protection degree IP65.

    Download PDFRecommended Tightening Torque
    Download PDFIndustrilas cut out versions
    HousingZinc die cast, chrome plated
    CamSteel, zinc plated
    Standard nutZinc die cast, zinc plated
    Earthing nutZinc die cast, zinc plated
    Wing knobZinc die cast, chrome plated, black texture powder coated or glass fibre reinforced Polyamide (PA6GF30), black

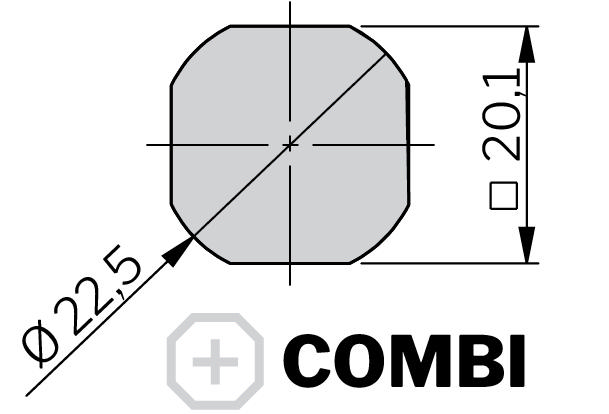

    Cut outCOMBI
    StandardsIP65

    Download your CAD-file

    Choose CAD format here:
    Download here:

    2-260
    AAAAAA Surface treatment Nut
    241385 Chrome Standard
    241386 Chrome Earthing nut
    241685 Black Standard
    241686 Black Earthing nut
    HHLL H/L in mm
    0000 No cam
    0445 4 / 45
    0645 6 / 45
    0845 8 / 45
    1045 10 / 45
    1245 12 / 45
    1445 14/45
    1645 16 / 45
    1845 18 / 45
    2045 20 / 45
    2245 22 / 45
    2445 24 / 45
    2645 26 / 45
    2845 28 / 45
    3045 30 / 45
    3245 32 / 45
    3445 34 / 45
    3645 36 / 45
    3845 38 / 45
    4045 40 / 45
    4245 42 / 45
    4445 44 / 45
    4645 46 / 45
    4845 48/45
    5045 50 / 45
