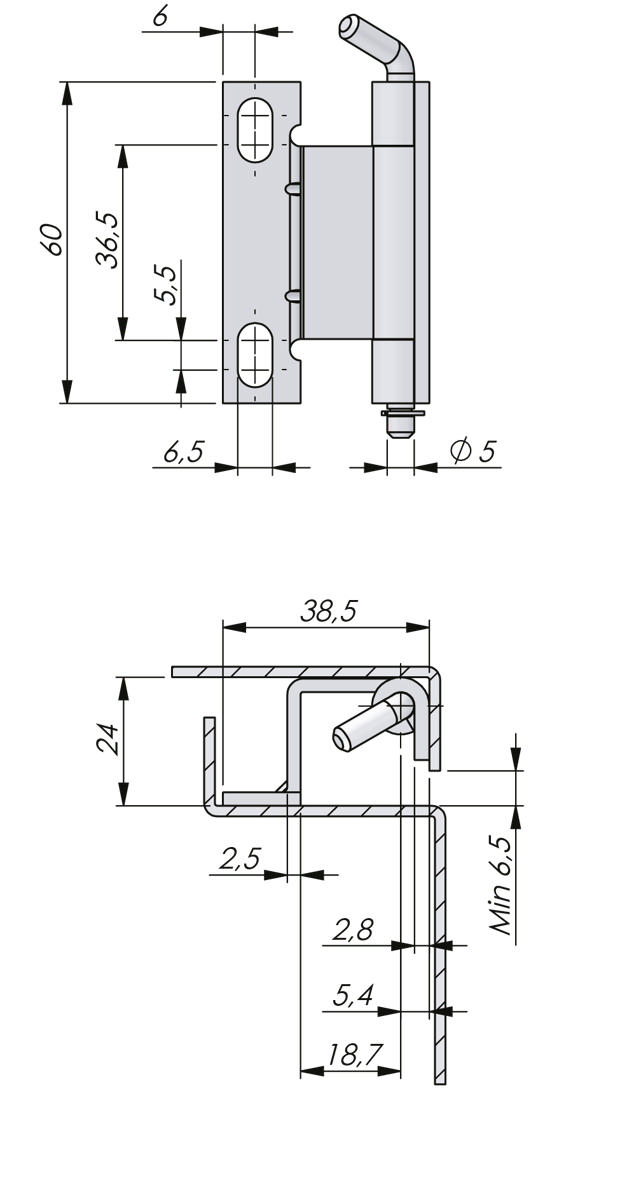

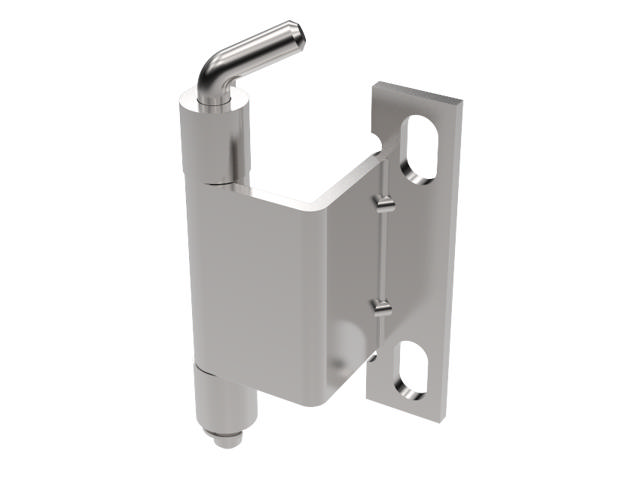

Concealed Adjustable Hinge 120° Stainless Steel

Index Code 6-320
120° opening angle of hinges Universally right or left mounted Adjustable vertically (Y-axle) Stainless steel

Adjustable concealed hinge in stainless steel for surface mounted doors with universal left and right mounting. For weld-on and screw mounting. Opening angle 120°. The hinge can be adjusted 5,5 mm vertically and is supplied with E-clip.

Download PDFRecommended Tightening Torque
HingeStainless steel 304
E-clipStainless steel 316
AxleStainless steel 303
Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

CAD* P/N Description Door part Frame part
313010 Adjustable Stainless Concealed Hinge Weld-on * Screw-on
