    External Bolt-On Hinge 180° Stainless Steel

    Index Code 6-400
    180° opening angle of hinges Universally right or left mounted Lift-off function Stainless steel

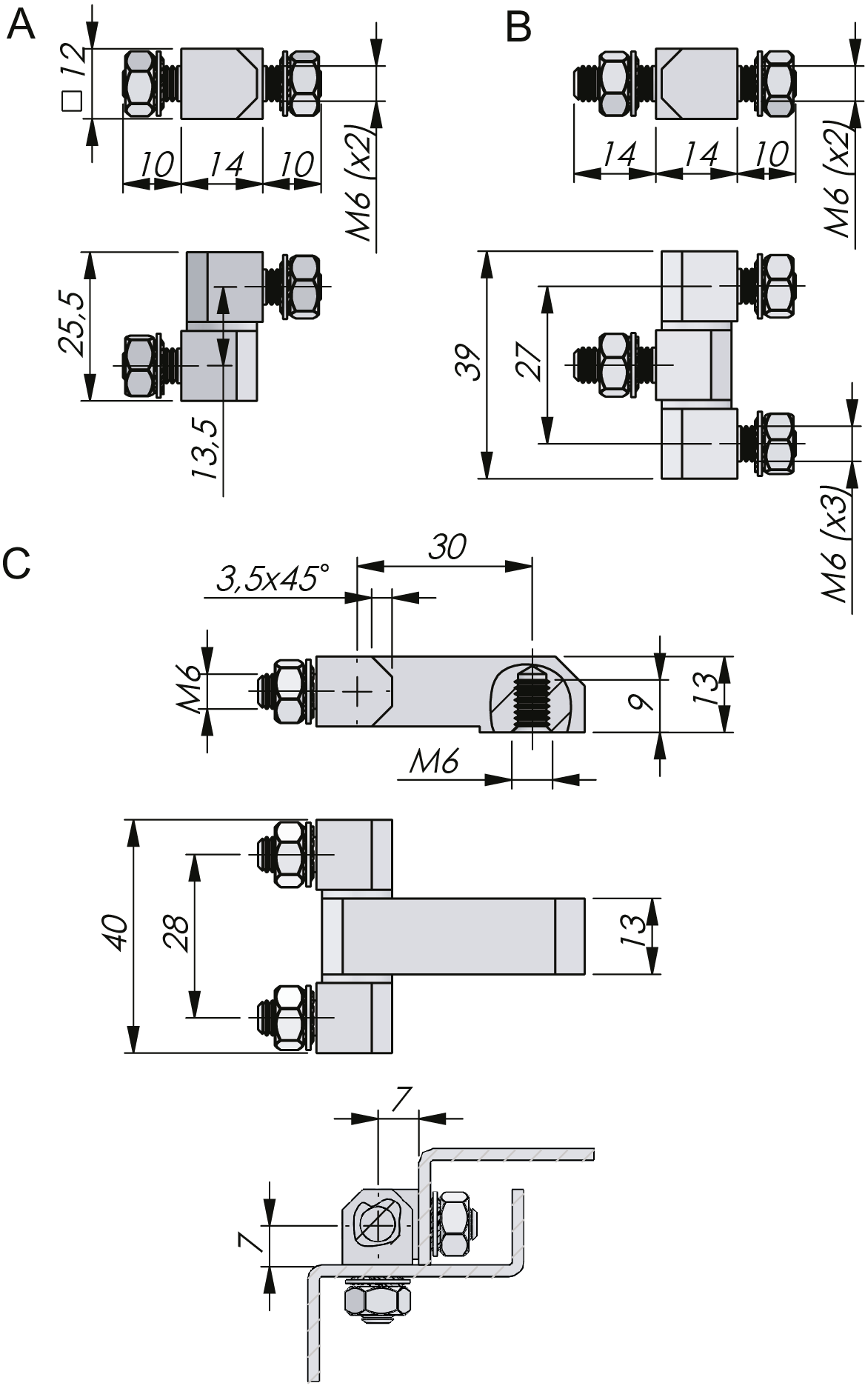

    Stainless external bolt-on hinge for surface mounted or flush mounted doors. Universal left and right mounting and with opening angle 180°. Two-part version in lift-off design, and three-part versions in fixed design. The three-part version is shown in drawing C and has elongated center for flush mounted doors. Supplied unassembled, with nuts and washers.

    Download PDFRecommended Tightening Torque
    HingeStainless steel 303 or stainless steel 316
    NotesSupplied unassembled with nuts and washers.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD) Material Version Drawing
    		323012  Two-part hinge  Stainless steel 303 Lift-off A
    		323014  Three-part hinge Stainless steel 303 Fixed B
    		323014-30  Three-part hinge. M6-stud or screw not included. Stainless steel 303 Elongated / Fixed C
    		329012  Two-part hinge  Acid-proof Stainless steel 316 Lift-off A
    		329014  Three-part hinge Acid-proof Stainless steel 316 Fixed B
