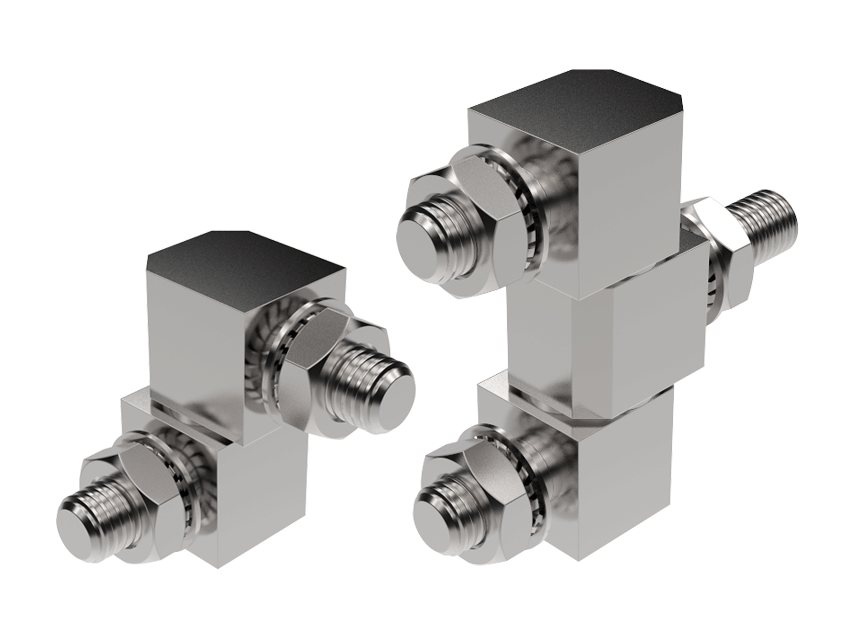

External Bolt-On Hinge 180° Stainless Steel

Index Code 6-420
180° opening angle of hinges Universally right or left mounted Lift-off function Stainless steel

External bolt-on hinge in stainless steel for surface mounted doors. Universal left and right mounting and with opening angle 180°. Two-part version in lift-off design, and three-part version in fixed design. Supplied unassembled, with nuts and washers.

Download PDFRecommended Tightening Torque
HingeStainless steel 303 or stainless steel 316
NotesSupplied unassembled with nuts and washers.
Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

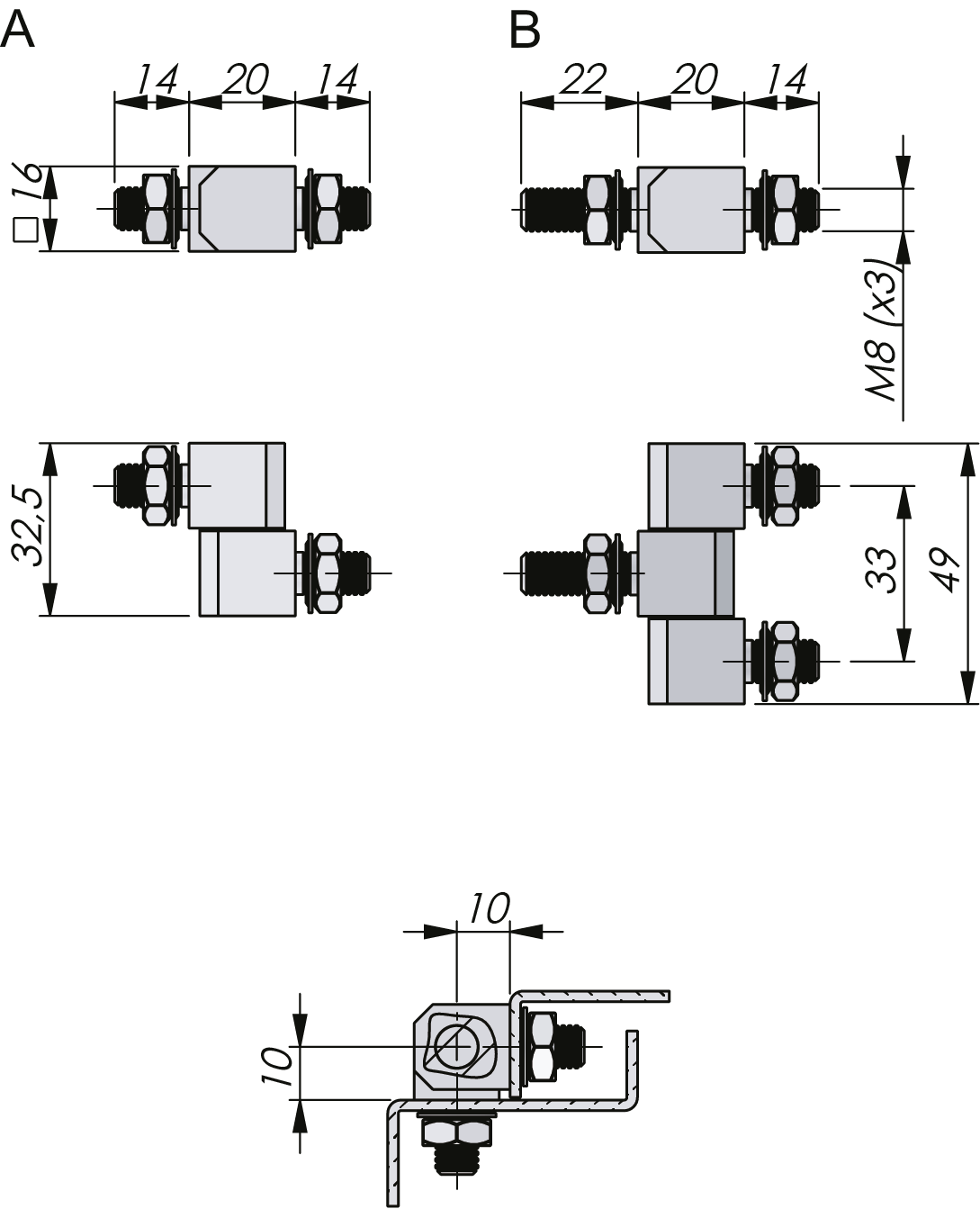

CAD* P/N Description Material Version Drawing
323018  Three-part hinge Stainless steel 303 Fixed B
323022  Two-part hinge Stainless steel 303 Lift-off A
329018  Three-part hinge Acid-proof Stainless steel 316 Fixed B
329022  Two-part hinge Acid-proof Stainless steel 316 Lift-off A
