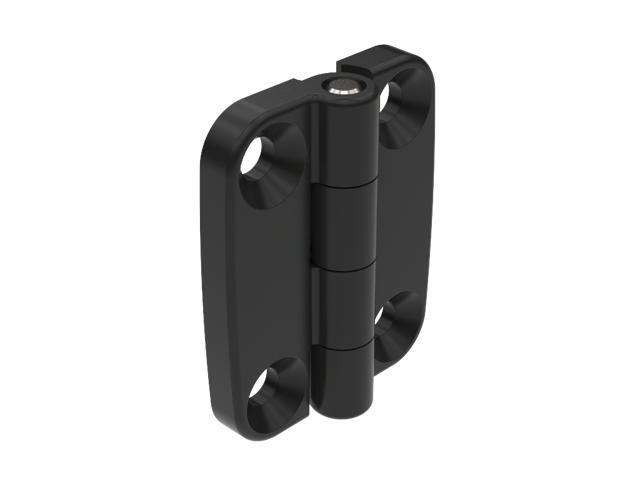

External Hinge 54x43 mm 180°

    Index Code 3-330
    180° opening angle of hinges Universally right or left mounted

    Hinge for mounting with cast-in stainless steel bolts and/or countersunk holes. Universal left and right mounting. Opening angle 180°.

    Nuts or washers are not supplied with the hinge, but may be ordered separately (see part numbers under "Accessories" on this page).

    Download PDFRecommended Tightening Torque
    NutSteel, zinc plated
    HingeZinc die cast, black texture powder coated
    PinStainless steel 303
    WasherSteel, zinc plated
    Cast-in boltsStainless steel 303
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Bolts Holes Drawing
    		3216-600544-30 - 4 x Ø 6,3 A
    		3216-610544-30 4 x M6 - B
    		3216-620544-30 2 x M6 2 x Ø 6,3 C
