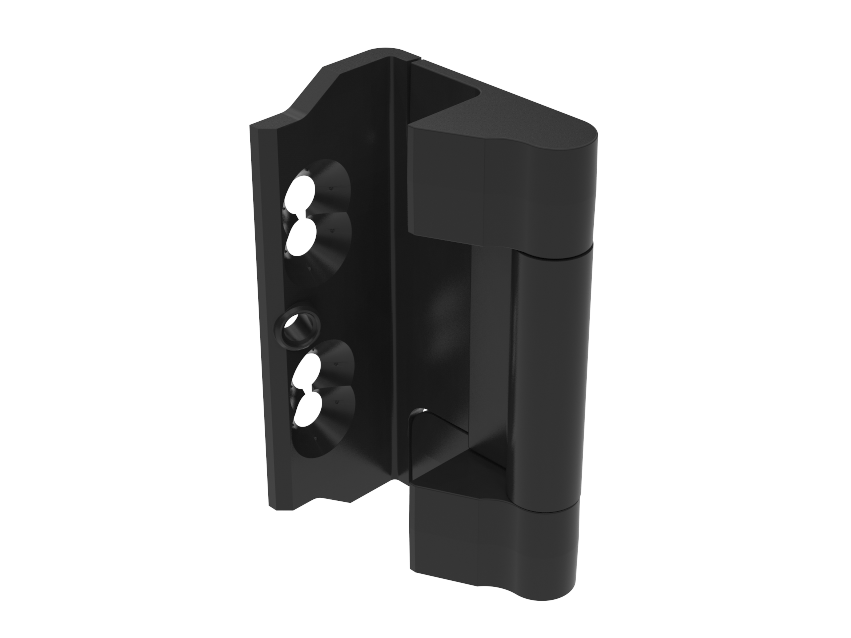

Hinge for Doors with Adjacent Cabinets 180°
Index Code 3-310

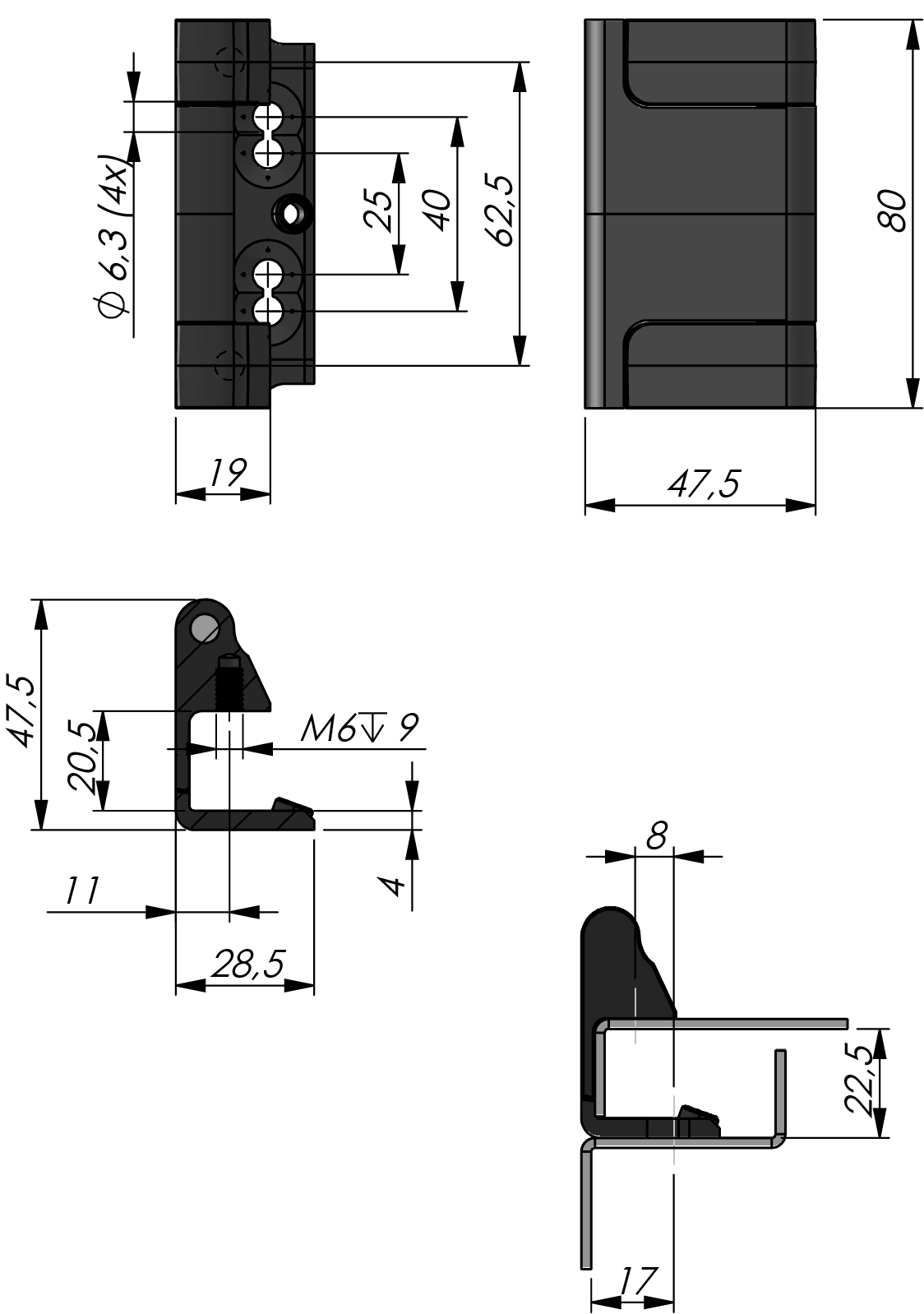

Hinge for adjacent doors. Mounted with screws on the inside. Mounting the door is simplified with a lift-off function when the lower screws of the hinge is removed. The frame part can be mounted in holes of either 25 mm c/c or 40 mm c/c.
The earthing kit contains two screws and two serrated washers for mounting the door part, and a special pointed set screw for grounding the frame part. The earthing kit is ordered separately (P/N 321676-11, Index Code 3-310).
| Download PDF | Cabinet Design Examples |
| Download PDF | Cabinet Design Examples |
| Download PDF | Recommended Tightening Torque |
| Hinge | Zinc die cast, black texture powder coated |
| Pin | Stainless steel 304 |
| Notes | In combination with earthing kit 321676-11 the hinge 321676-01 is certified for direct earthing/grounding between frame and door without need for separate wiring, according to DIN EN 61439-2:2010 and DIN EN 62208 (VDE 0660-511):2005. The electric resistance through the hinge is 28 mΩ. |
| Choose CAD format here: INFO_TEXT |
| Download here: |
| CAD* | P/N | Description (OLD) | Surface treatment |
|---|---|---|---|
| 321676-01 | Hinge for Doors with Adjacent Cabinets | Black powder coated |
