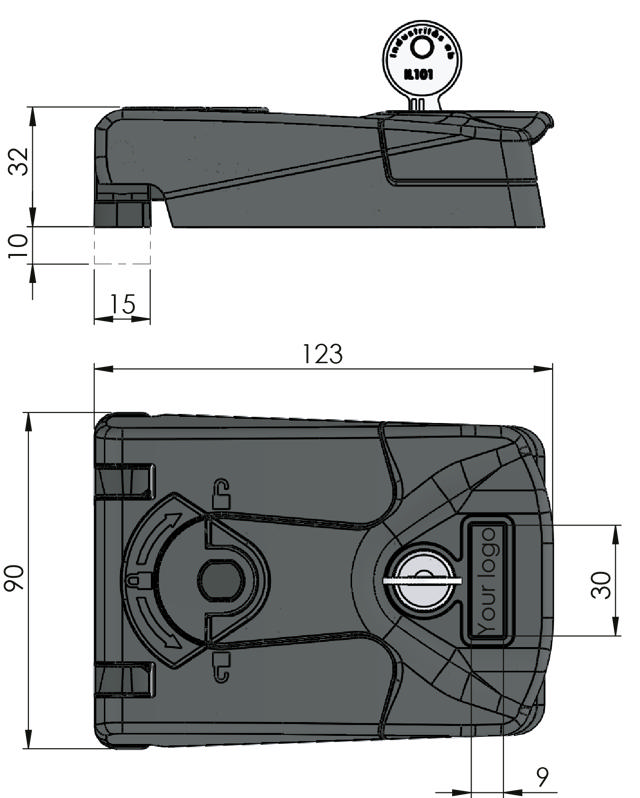

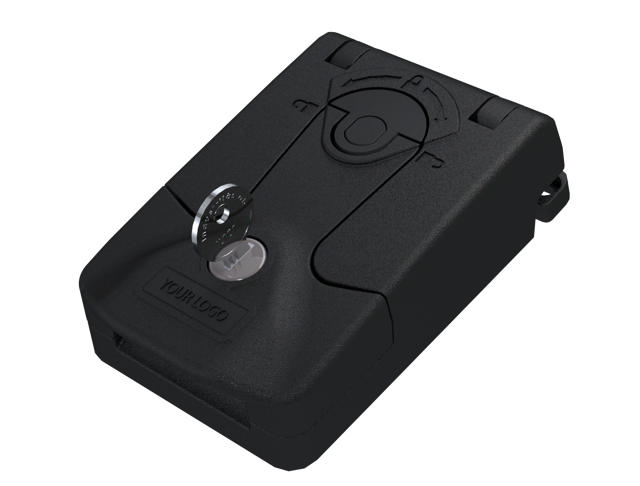

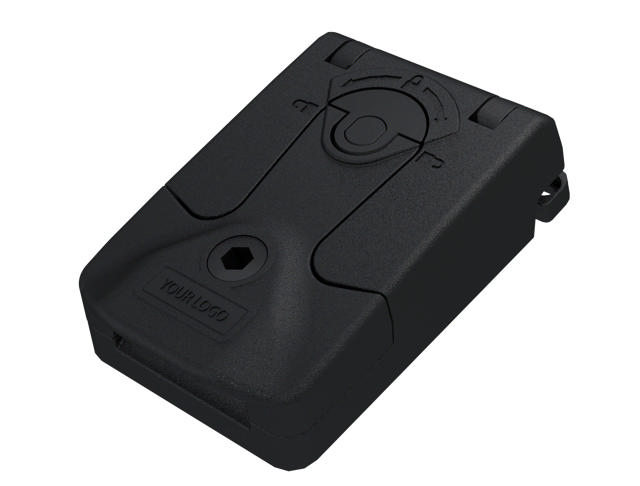

Klima-flex Latch Hinge GEN2
Index Code 2-317ef
The patented Klima-flex latch hinge is specifically for insulated and pressurized doors. The hinge creates 6 mm compression and allows you to open the doors 180º in either direction, or to remove the door completely.
The safe two-stage opening process allows the cabinet to depressurize before it is fully opened. A distinct click delivers tactile feedback on whether the door is open or closed. For extra stability, mounting bracket is available.
Meets the requirements for sealing level L1 according to DIN EN 1886.
| Download PDF | Recommended Tightening Torque |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Insert | Zinc die cast, black texture powder coated |
| Handle | Glass fibre reinforced polyamide (PA6GF30) |
| Pin | Stainless steel 304 |
| Frame part | Zinc die cast, black powder coated |
| Door part | Glass fibre reinforced Polyamid (PA6GF30) |

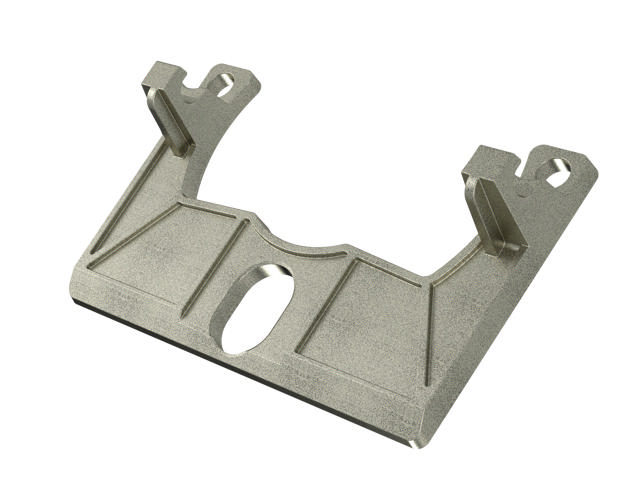

| Mounting bracket | Zinc die cast, zinc plated |
| Latching cam | Zinc die cast, black powder coated |
| Standards | DIN EN 61373, VDI 6022 |
| Cylinder information | Supplied with two keys |
