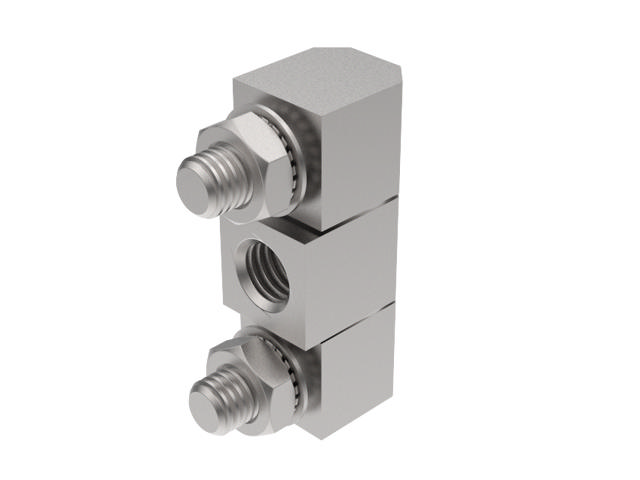

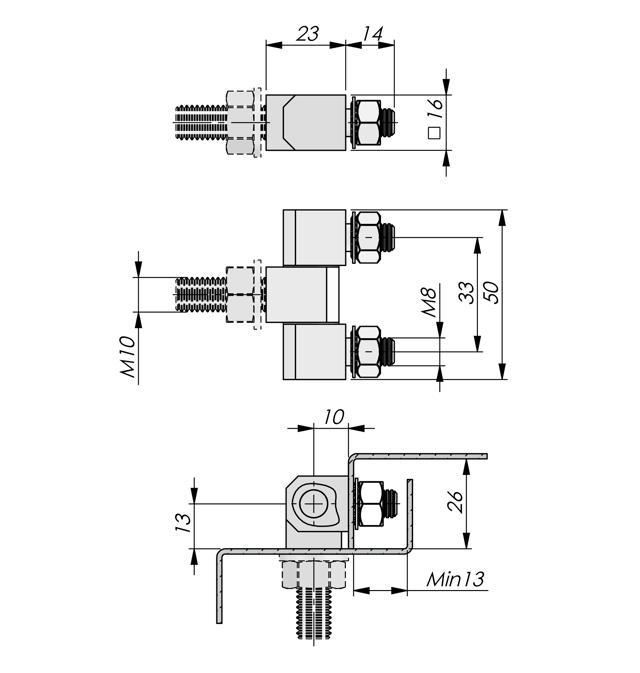

    External Bolt-On Hinge 180°

    Index Code 3-560
    180° opening angle of hinges Universally right or left mounted

    External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°.

    Download PDFRecommended Tightening Torque
    NutSteel, zinc plated
    HingeSteel, zinc plated
    PinBrass, nickel plated
    WasherBrass, nickel plated
    NotesSupplied with washers, nuts and unassembled. Stud or bolt for door part is not included.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD)
    		322120 Bolt-on hinge
