    External Bolt-On Hinge 180°

    Index Code 3-505
    180° opening angle of hinges Universally right or left mounted Lift-off function

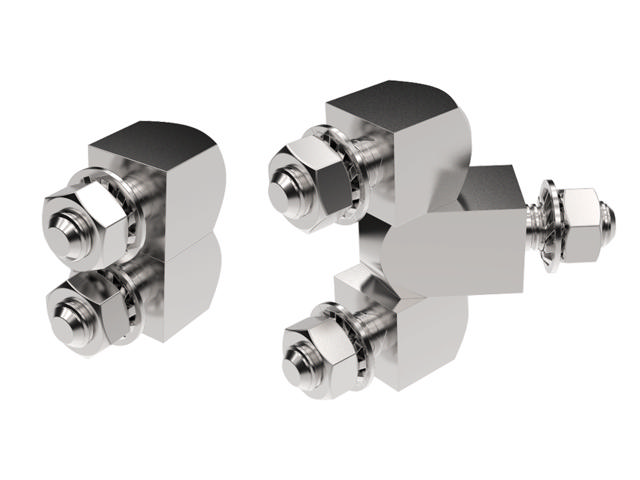

    External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Two-part version in lift-off design, and three-part version in fixed design.

    Non-stock item, price and delivery time upon request.

    Download PDFRecommended Tightening Torque
    NutSteel, zinc plated
    HingeSteel, zinc plated
    PinBrass, nickel plated
    WasherBrass, nickel plated
    NotesSupplied unassembled, with nuts and washers.
    Choose CAD format here: INFO_TEXT
    Download here:

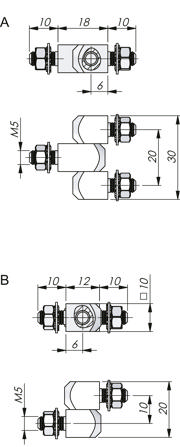

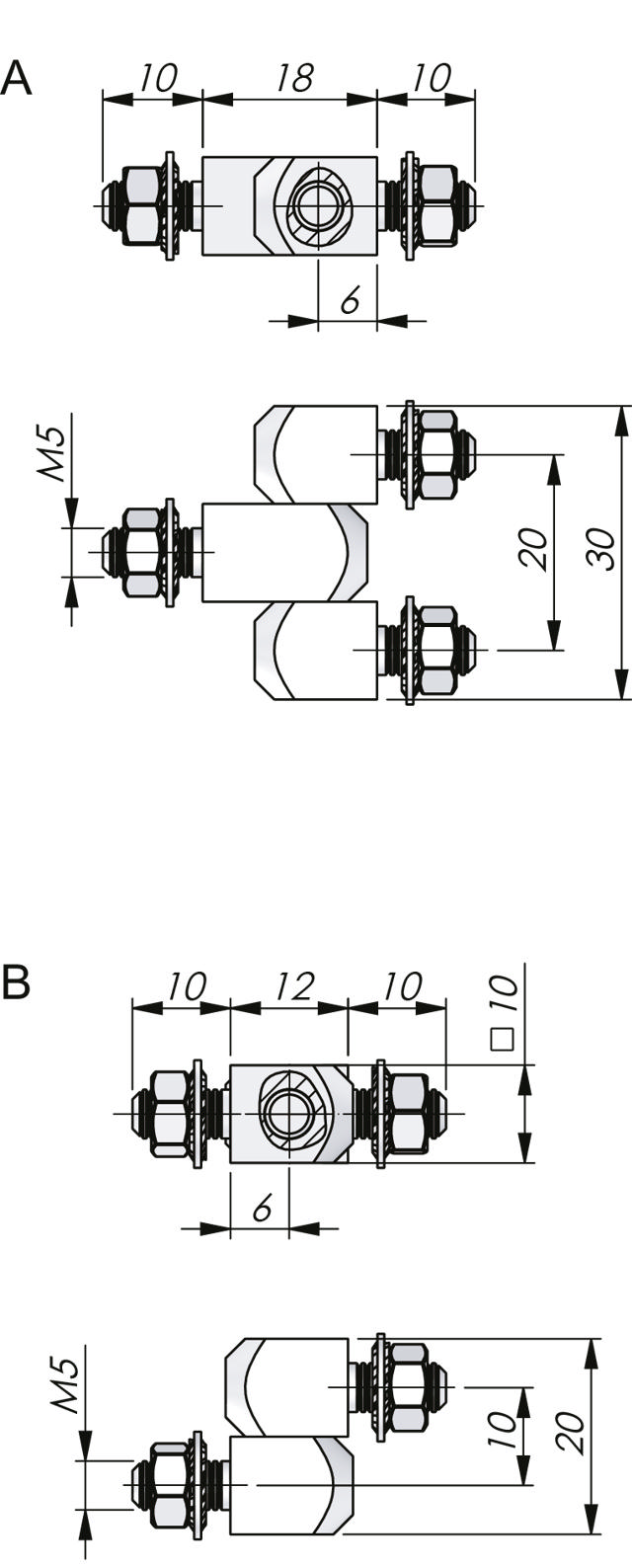

    CAD* P/N Description (OLD) Version Drawing
    		322109  Two-part hinge Lift-off B
    		322110  Three-part hinge Fixed A
