    External Bolt-On Hinge 180°

    Index Code 3-510
    180° opening angle of hinges Universally right or left mounted Lift-off function

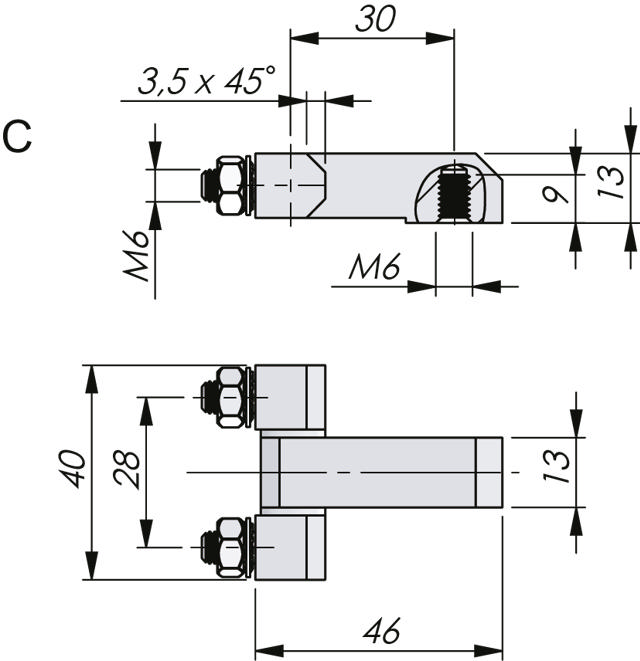

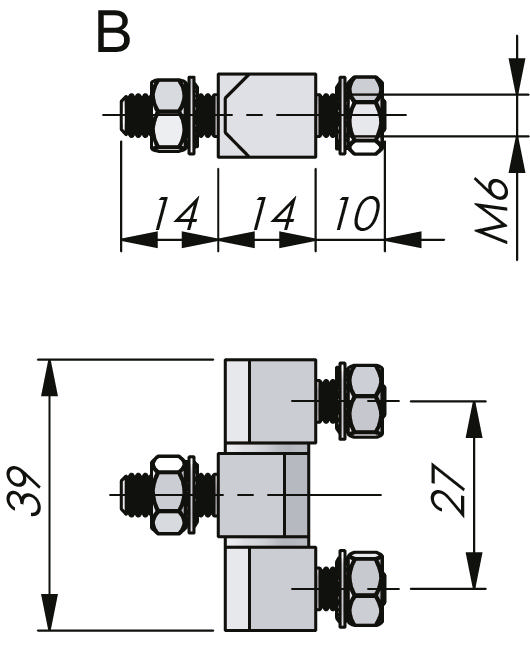

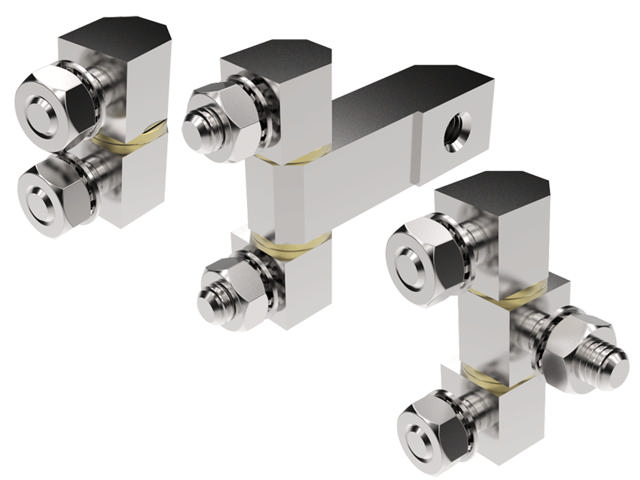

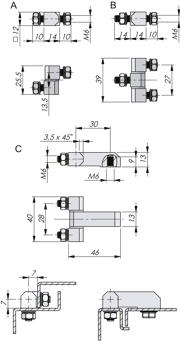

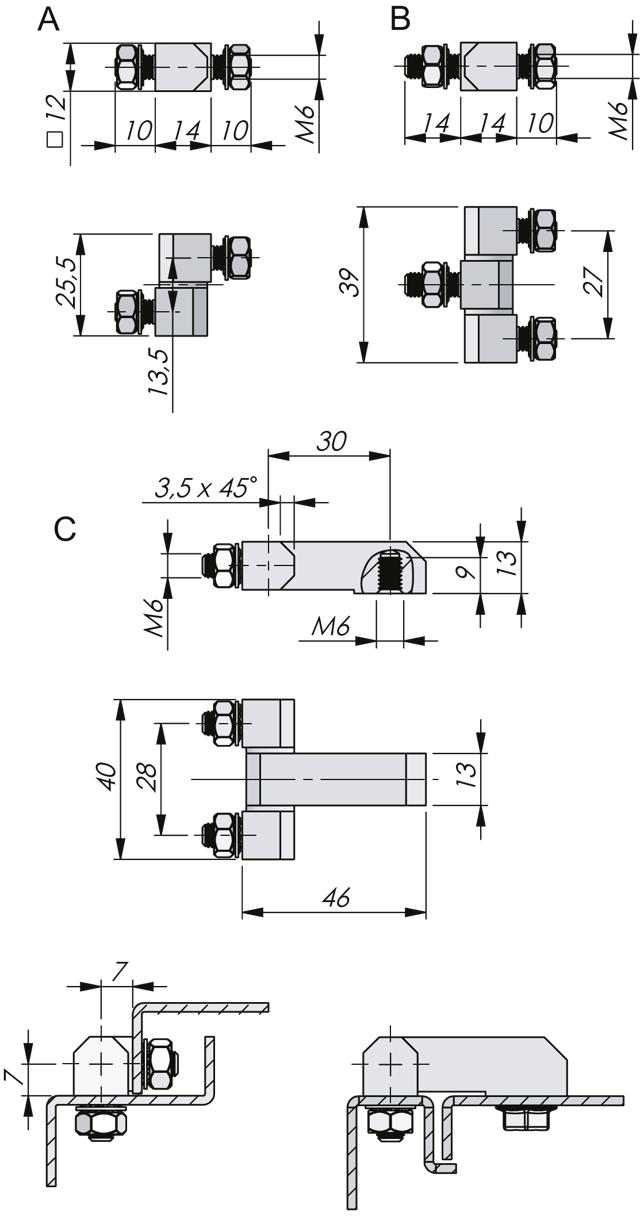

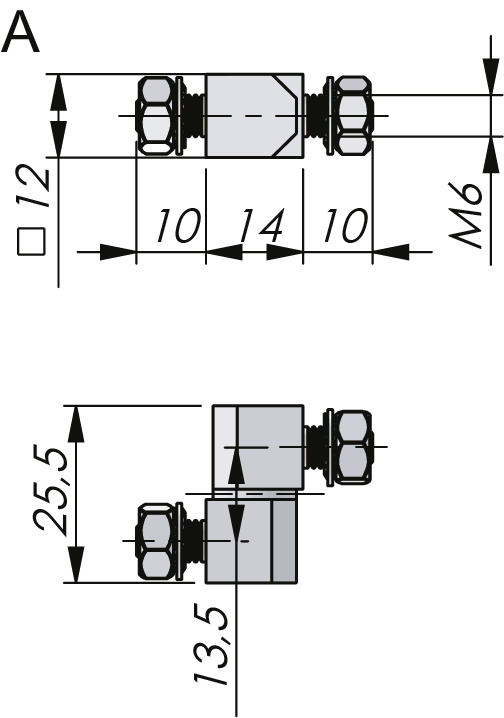

    External bolt-on hinge for surface mounted or flush mounted doors with universal left and right mounting. Two-part version in lift-off design, and three-part versions in fixed design. Three-part version (drawing C) with elongated center for flush mounted doors.

    Download PDFRecommended Tightening Torque
    NutSteel, zinc plated
    HingeSteel, zinc plated
    PinBrass, nickel plated
    WasherBrass, nickel plated
    NotesSupplied unassembled, with nuts and washers.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD) Material Surface treatment Version Drawing
    		322112  Two-part hinge Steel Zinc plated Lift-off A
    		322113  Three-part hinge Steel Zinc plated Fixed B
    		322113-30  Three-part hinge Steel Zinc plated Elongated / Fixed C
